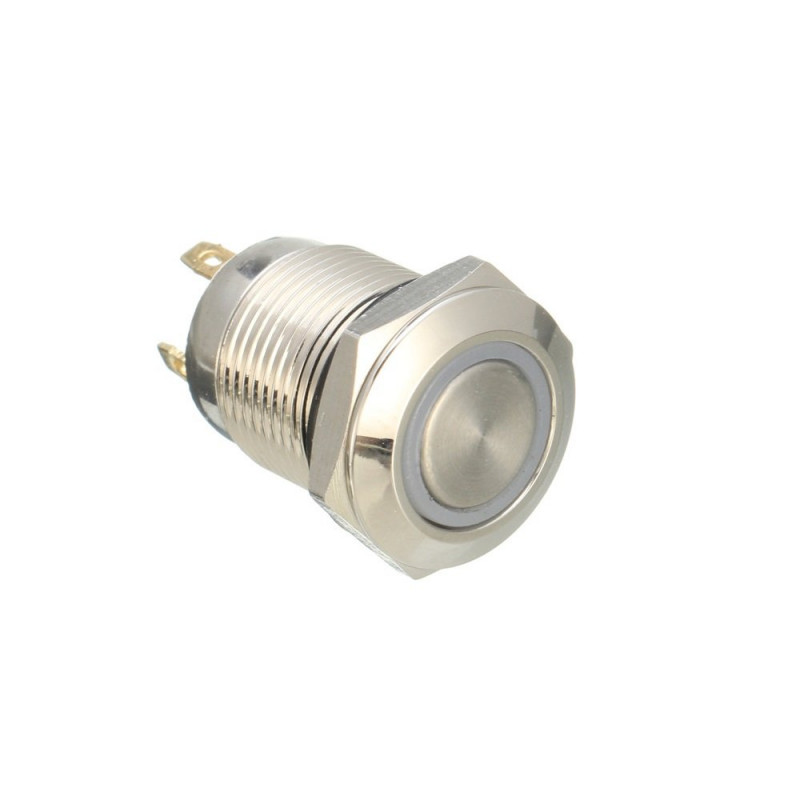

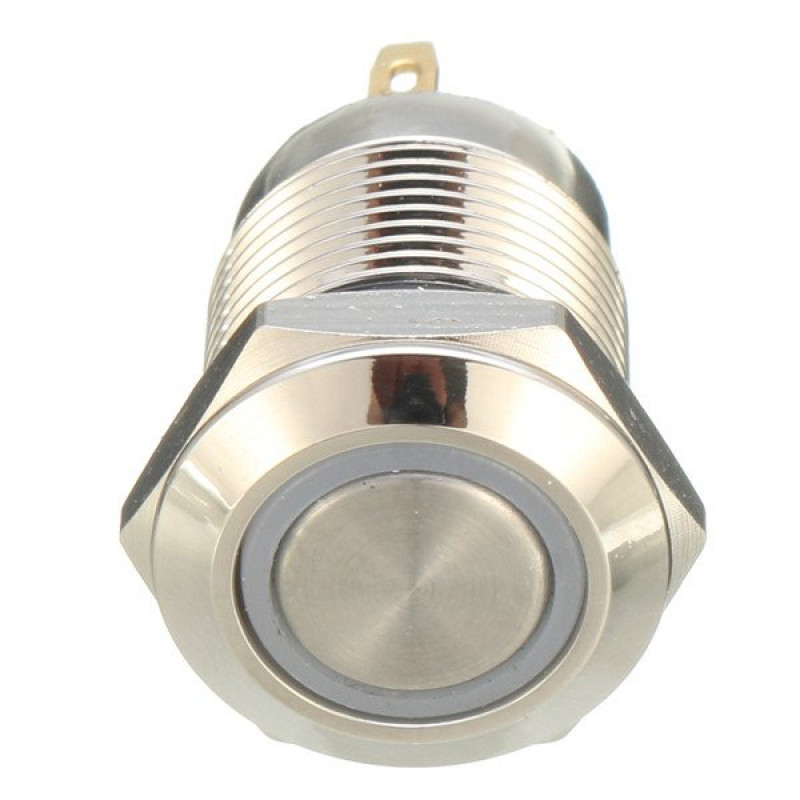

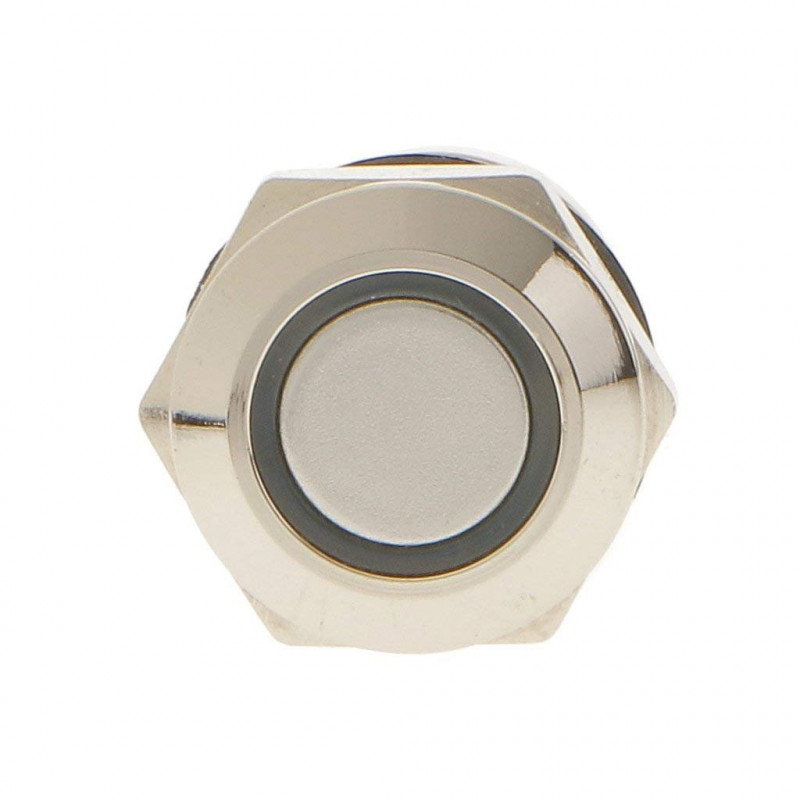

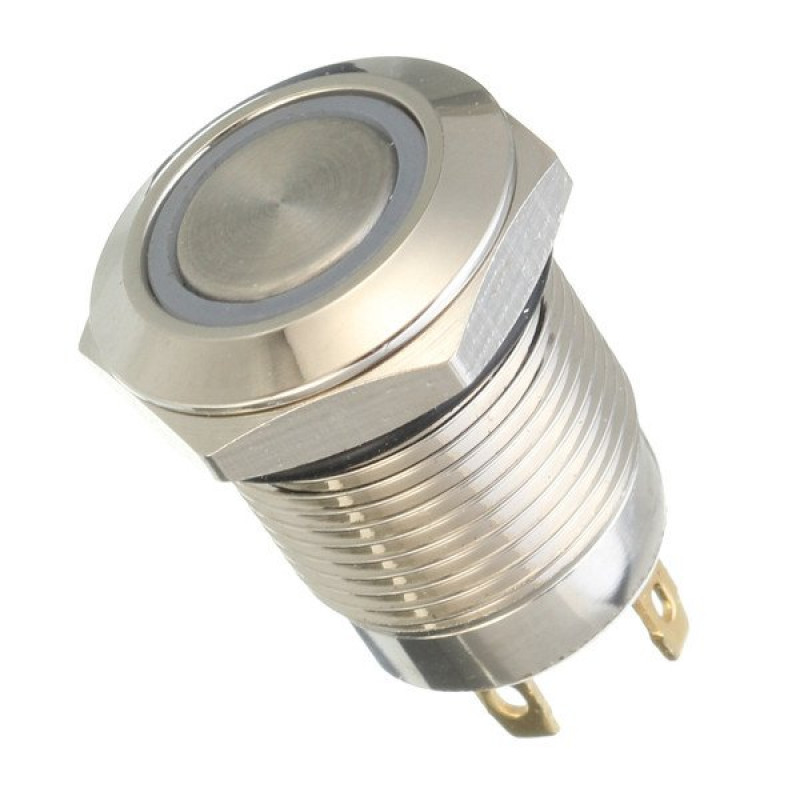

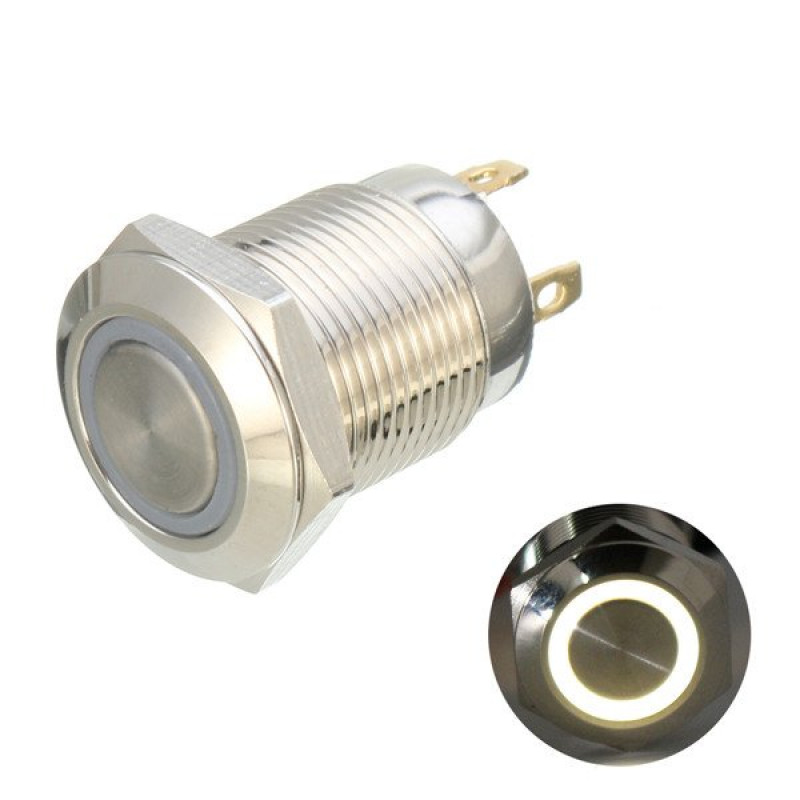

This Self-lock Non-Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated White LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose


This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colourful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards.

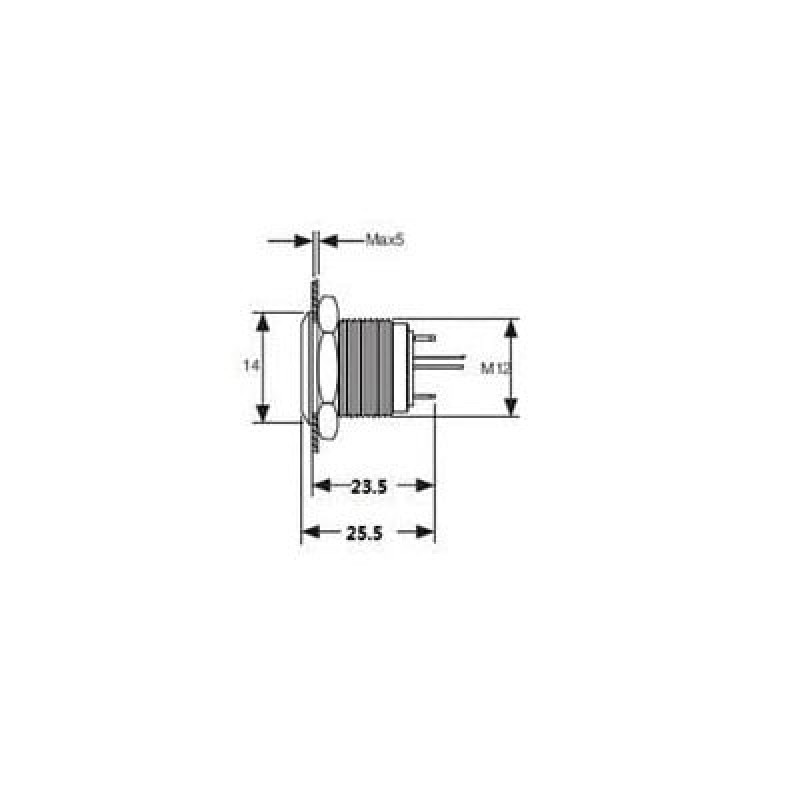

The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V.


Features:

  1. Stainless steel material for long-term use
  2. High-end appearance and good to touch
  3. Inbuilt Colorful Ring illumination LED

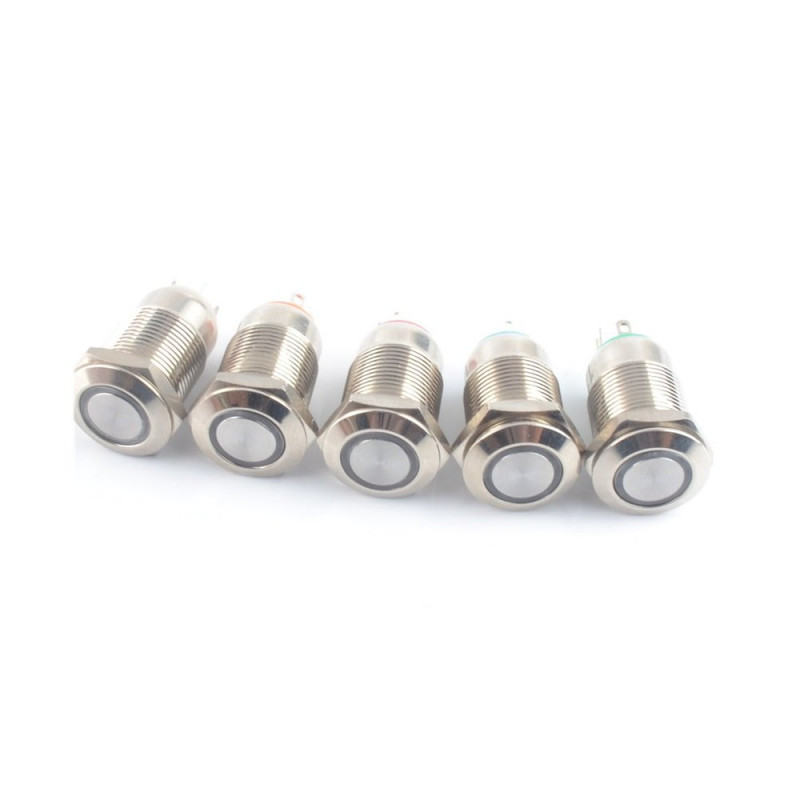

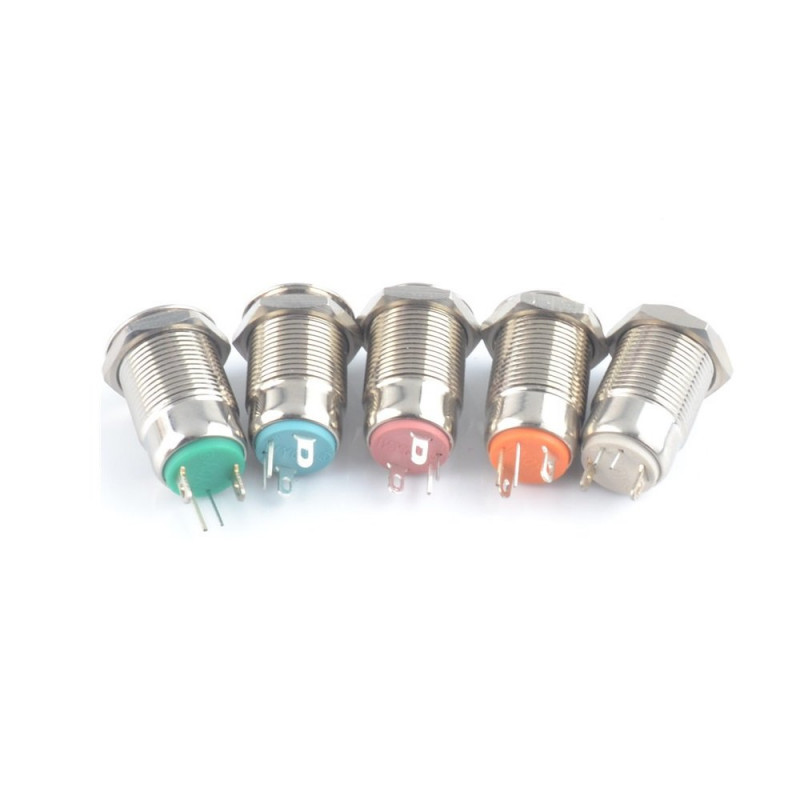

  4. Available in Various LED Color
  5. Independent LED terminals
  6. Bright daylight LEDs
  7. Single pole push to make and Push to break Function
  8. Front and rear panel seal to IP67
  9. Integral supply resistors
  10. TVS protection
  11. Good electrical conductivity
  12. Non-momentary type push-button switch

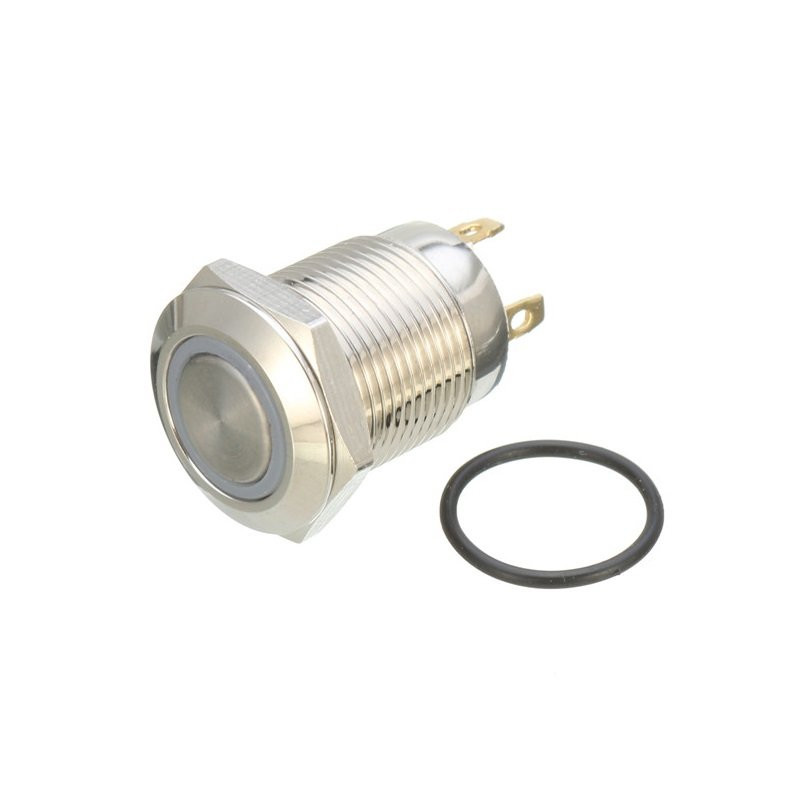

  13. Rubber ring and hexagon nut to fix, Waterproof and Dustproof

Package Includes:

1 x 12mm 12V Ring Light Self-Lock Metal Push-button Switch-White Light



Specifications:

Operating Voltage (VDC)

12

Max. Operating Current (mA)

2A MAX

Light Color

White

On/Off Function

Push to ON and Push to OFF

Switch Type

Momentary/Latching

Mounting Hole Diameter (mm)

12 mm

Contact Type

Solder Type

Contact Material

Silver Alloy

Contact Resistance

50 M

Insulation Resistance (M)

1000

Operating Temperature Range (C)

-20 to 55

Operation Force

About 3-5N

Operation Stroke

2-5mm

Body Material

Stainless Steel and Plastic

Mech. & Electrical Lifecycle

50000

Protection Standard

IP66





Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 207.68 (Inclusive of all Taxes)
