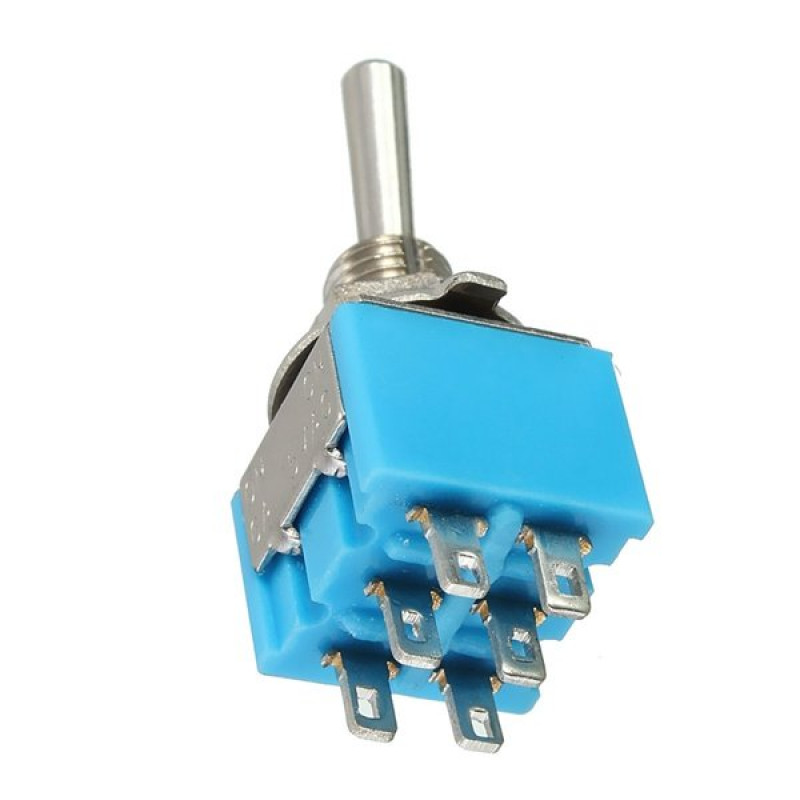

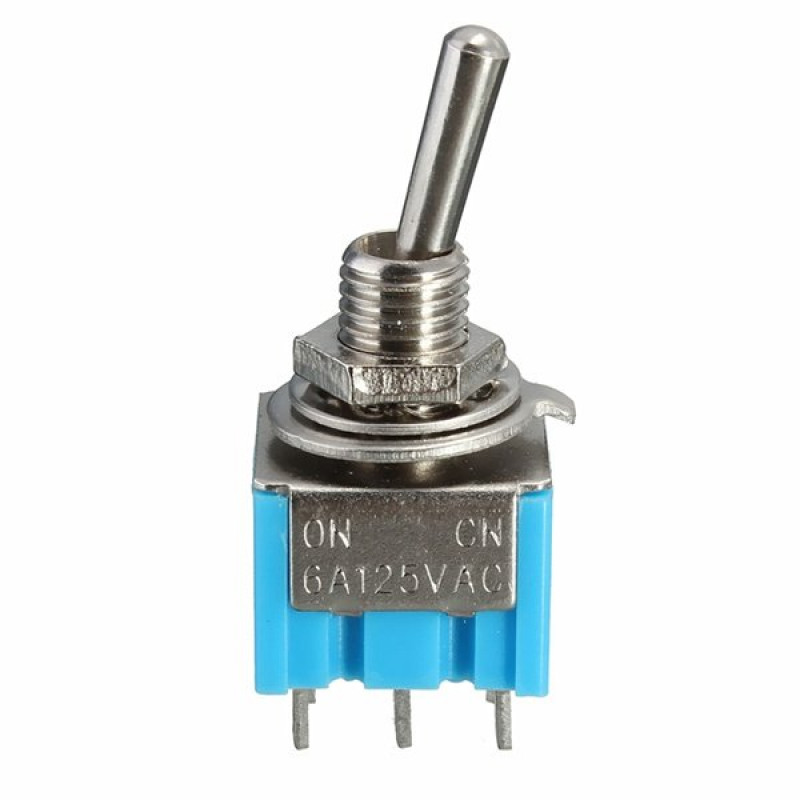

It is a Mini MTS-203 6-Pin DPDT 6A 125VAC Toggle Switch. The switch is Double Pole Double Throw with 6 pins.
Note: This switch is available in sky blue and dark blue color, we will ship it randomly.
Features:
- Easy to install.
- Durable in use.
- It can be used on low voltage or high voltage circuits.
- Ideal for switching lights or motors.
Package Includes:
5 x Mini MTS-203 6-Pin DPDT 6A 125VAC Toggle Switch.
Specifications:
| Rated Voltage(V) | 125 VAC |
| Rated Current(A) | 6 |
| Contact Resistance | 20MΩ (Max) |
| Insulation Resistance (MΩ) | 1000 |
| Operating Temperature Range (°C) | -25 to 85 |
| Life Cycle | 10000 |
| Switch Type | DPDT |

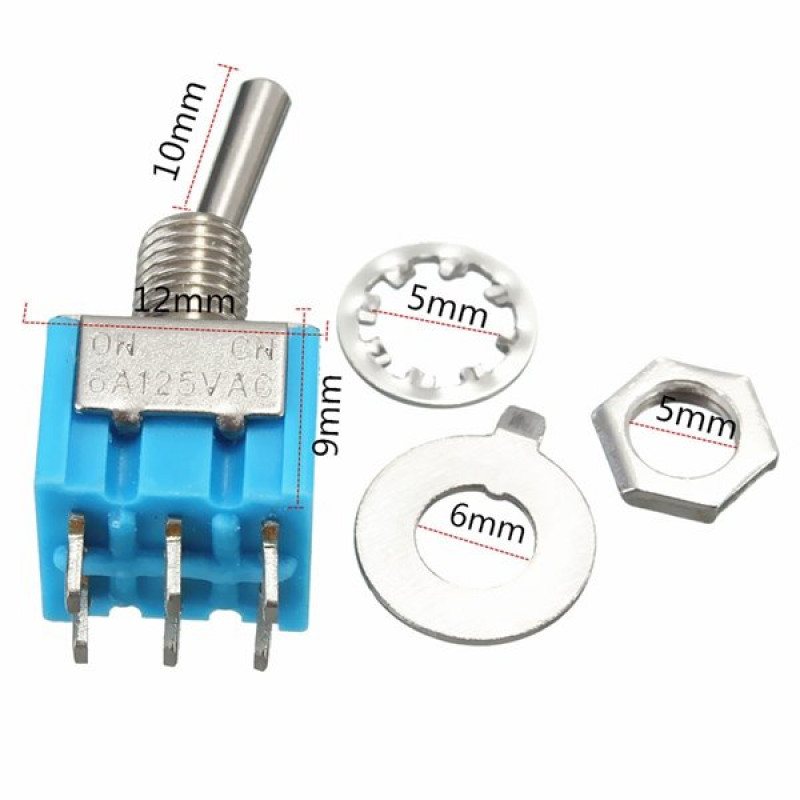

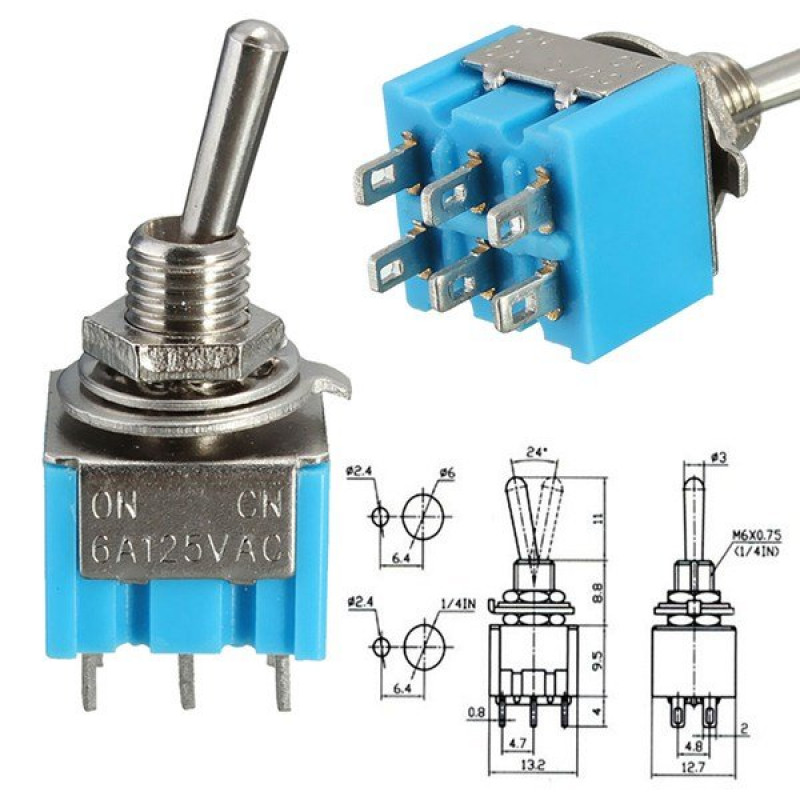

| Length (mm) | 13 |
| Width (mm) | 13 |
| Height (mm) | 29 |
| Weight (gm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 174.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mini MTS-203 6-Pin DPDT 6A 125VAC Toggle Switch - Pack of 5
- Product Code: EC-6269
- Availability: 77
-
Rs.132.00
- (Excluding 18% GST)
