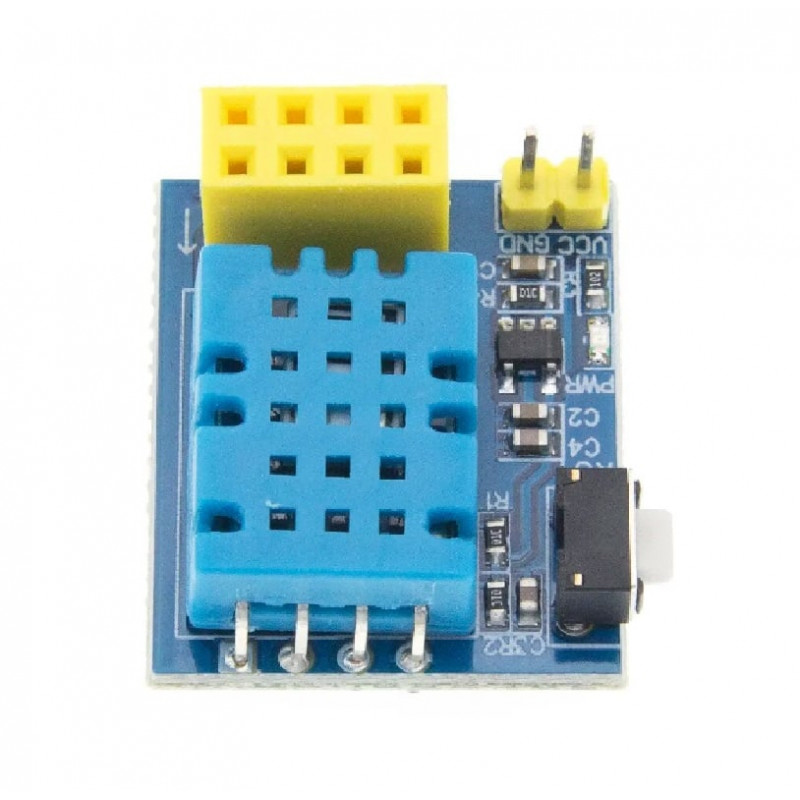

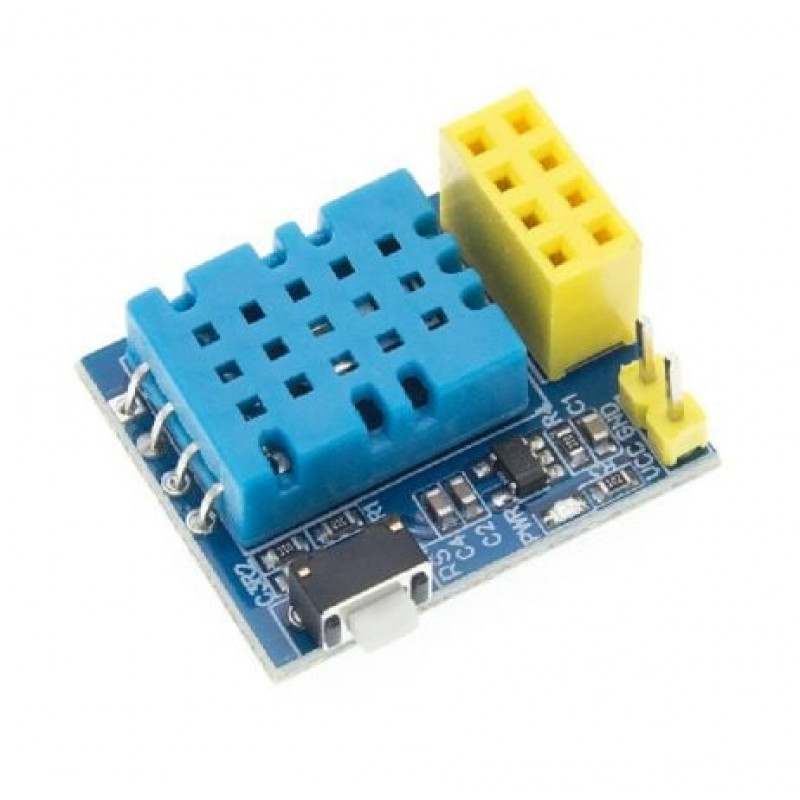

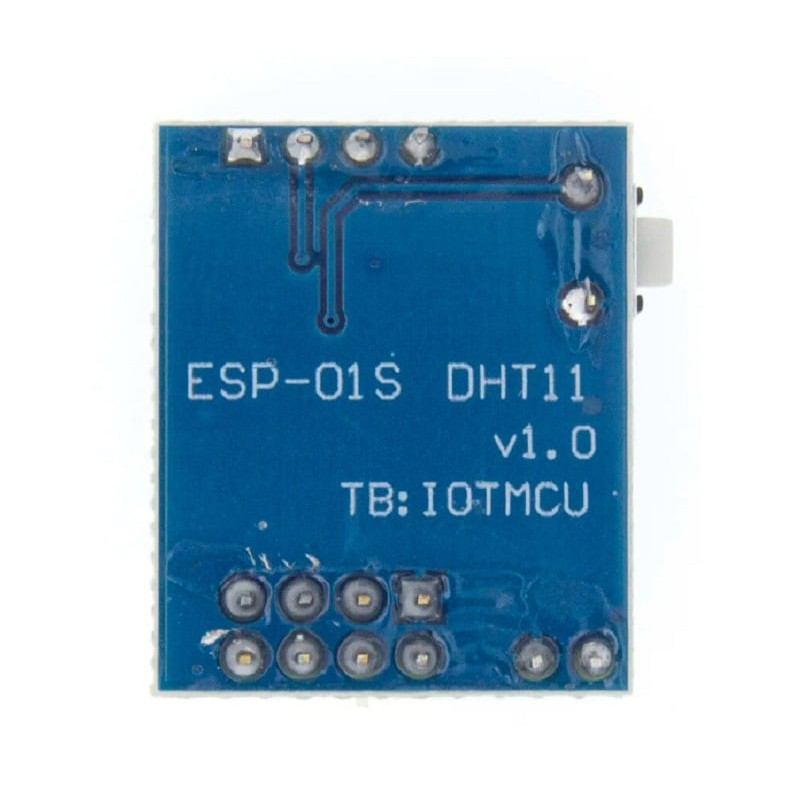

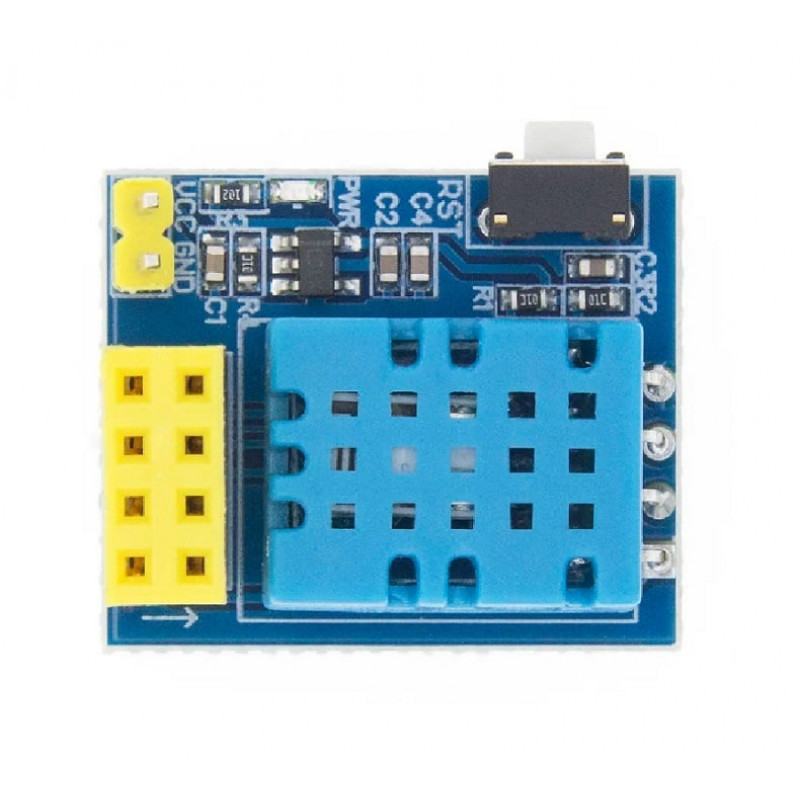

This product requires the user to burn the download program himself, and the problem is caused by burn-in damage, etc, please pay attention to beginners. This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.

This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.

Applications:

1. Power supply: 3.7V-12V DC power supply is connected to VCC GND (2.54mm pin header)

2. Download the program to ESP-01S (this connection does not include this wireless module)

3. Insert the ESP-01/ESP-01S (this connection does not include this wireless module) into the 2*4 Pin female (in the direction of the arrow)

Features:

  1. ESP8266 ESP-01/ESP-01S module compatible
  2. Integrated DHT11 sensor for temperature and humidity monitoring
  3. WiFi connectivity for remote data transmission
  4. Compact and low-cost design
  5. GPIO pins for additional customization
  6. Ideal for IoT and home automation projects

Package Includes:

1 xESP8266 ESP-01 ESP-01S DHT11 Temperature and Humidity WiFi Node does not Include Wireless Module

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 87.32 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

ESP8266 ESP-01 ESP-01S DHT11 Temperature and Humidity WiFi Node does not Include wireless Module

  • Product Code: EC-18995
  • Availability: 51
  • Rs.74.00
  • (Excluding 18% GST)
