This user guide will help you get started with ESP32-DevKitM-1 and will also provide more in-depth information.
ESP32-DevKitM-1 is an ESP32-MINI-1(1U)-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Users can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard.
Features:
- Easy to use
- ESP32-MINI-1 comes with an on-board PCB antenna
- The two modules both have a 4 MB flash in chip package
- Power regulator converts 5 V to 3.3 V.
- Single USB-UART bridge chip provides transfer rates up to 3 Mbps.
- 1 slave SDIO/SPI, ETHERNET
Specifications:
- Processor: 32 Bit Xtensa dual Core
- Clock Frequency: 240Mhz
- WIFI: IEEE 802.11 b/g/n 2.4Ghz
- Bluetooth: 4.2 BR/EDR BLE
- SRAM: 520KB (16KB SRAM in RTC)
- ROM: 448KB
- GPIOs: 34 , 4x SPI, 3x UART ,2x i2c
2xI2S,RMT,LED PWM ,1 host SD/eMMc/SDIO, - 12 bit ADC
Package Includes:
1 x Espressif ESP32-DevKitM-1 Development board
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

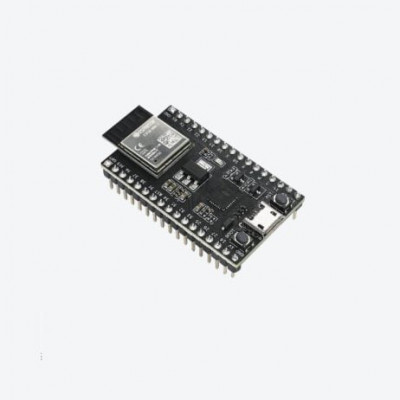

Espressif ESP32-DevKitM-1 Development board
- Product Code: EC-19147
- Availability: Out Of Stock
-
Rs.703.00
- (Excluding 18% GST)
