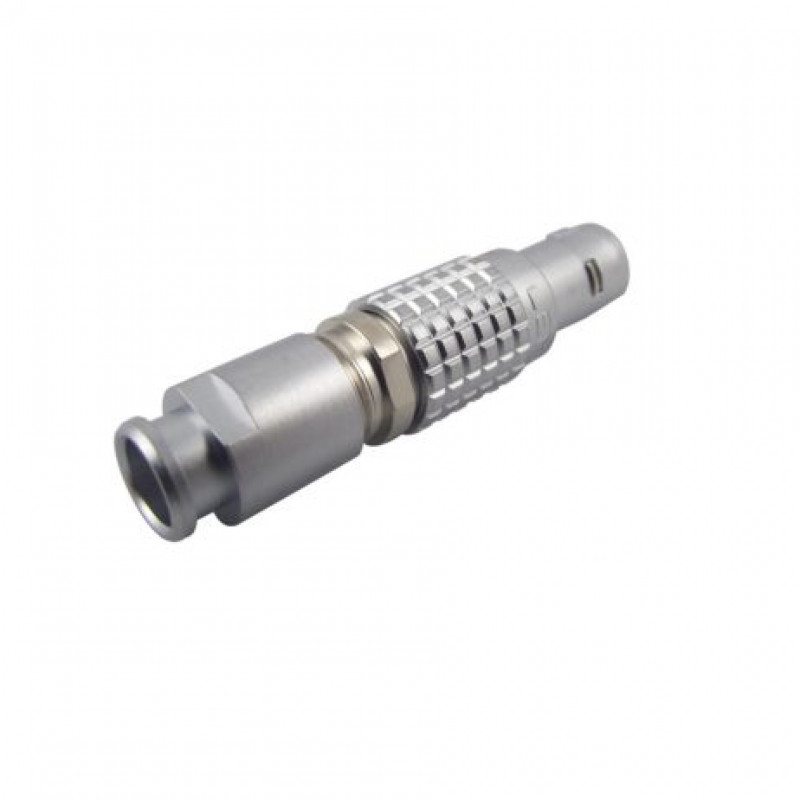

The FGG.0B.302. CLAD52Z from Lemo is a 0B series multipole circular straight plug connector with 2 pin contacts. It has a keying system for connector alignment. It also has cable collet and nut for fitting bend relief. This circular connector is specifically designed for indoor applications.
Features:
- Easy to use
- Easy to handle
- Good quality product
Specifications:
- Rated current of 10A
- Chrome-plated brass outer shell and collet nut
- Nickel-plated brass latch sleeve and mid pieces
- PEEK (polyetheretherketone) insulation
- UL recognized and CE marked
- Cable fixing diameter from 4.3mm to 5.2mm
- IP50 protection index (mated)
- High-temperature range from -55C to 250C
- Maximum solid and stranded conductor size is 22AWG (0.34mm)
- The push-pull self-latching connection system
Package Includes:
1 x FGG.0B.302.CLAD52Z-PLUG, FREE, 0B, 2WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
FGG.0B.302.Clad52Z-Plug, Free, 0B, 2Way
- Product Code: EC-21271
- Availability: Out Of Stock
-
Rs.2196.00
- (Excluding 18% GST)
