When there is material, the level signal of the detection port should be high. When there is no material, the level signal of the material port becomes low, and the system detects one. If the high-to-low conversion is determined, the material is considered. Suitable for 3D printer run-out and pause detection. Use on ledge board: the green light for the module is always on when the material is available. When the material is used up, the green light goes out. The main board executes the pause command operation and waits for the personnel to replace the material.
Note: A white variant of this product is available with some dimensional differences, check here.
Features:
- Easy to use
- Easy to connect
- Good quality product
- Size: Suitable for 1.75mm Filament
- Mounting Hole Size: 3.5mm
- Mounting Hole Distance: 20mm
Package Includes:
1 x Filament Break Detection Module Black
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

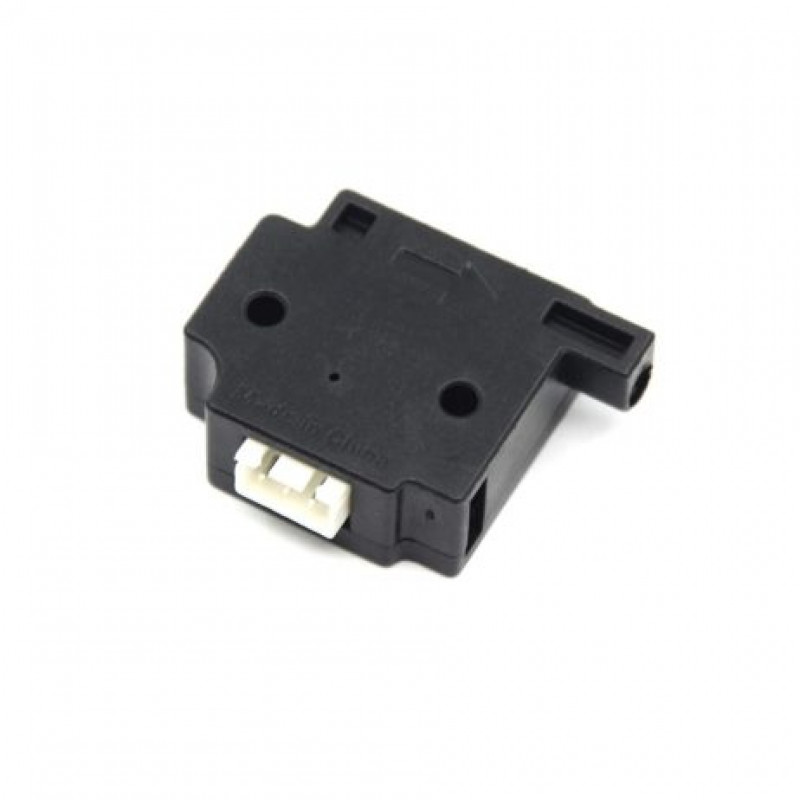

Filament Break Detection Module (Black)
- Product Code: EC-19544
- Availability: 8
-
Rs.374.00
- (Excluding 18% GST)
