FST800-4001Hydraulic pressure sensoradopts advanced glass micro-melting process, after hightemperature sintering above 500, the elastomer adopts integrated design, no O ring, nowelding seam, no hidden leakage, and strong corrosion resistance. Intelligent digital wide-rangetemperature compensation solves the temperature drift phenomenon of the sensor and improvesthe measurement accuracy and environmental adaptability of the sensor. Products are widely usedin excavators, crane hydraulic systems, oil cylinder hydraulics, compressors, gas dispensers,refrigerators, refrigeration systems, pneumatic control equipment, industrial process testing andcontrol and automated testing systems.

Applications:

1. Industrial process and control
2. Hydraulic and full-motion control
3. Industrial machinery manufacturing
4. Automated detection
5. Water treatment system
6. Pumping stations

Features:

1. Advanced micro fused silicon strain gauge
2. Leak free elastomer structure
3. Integrated temperature compensation
4. Highly corrosion resistant SS housing
5. Excellent shock, overload, & vibration resistance
6. Independent pressure outputs
7. Long term stability: 0.2%FS/year
8. Temperature compensation: -10~+70
9. Medium temperature: -40~+125
10. Zero temperature drift: 0.02%FS/
11. Full temperature drift: 0.02%FS/

Package Includes:

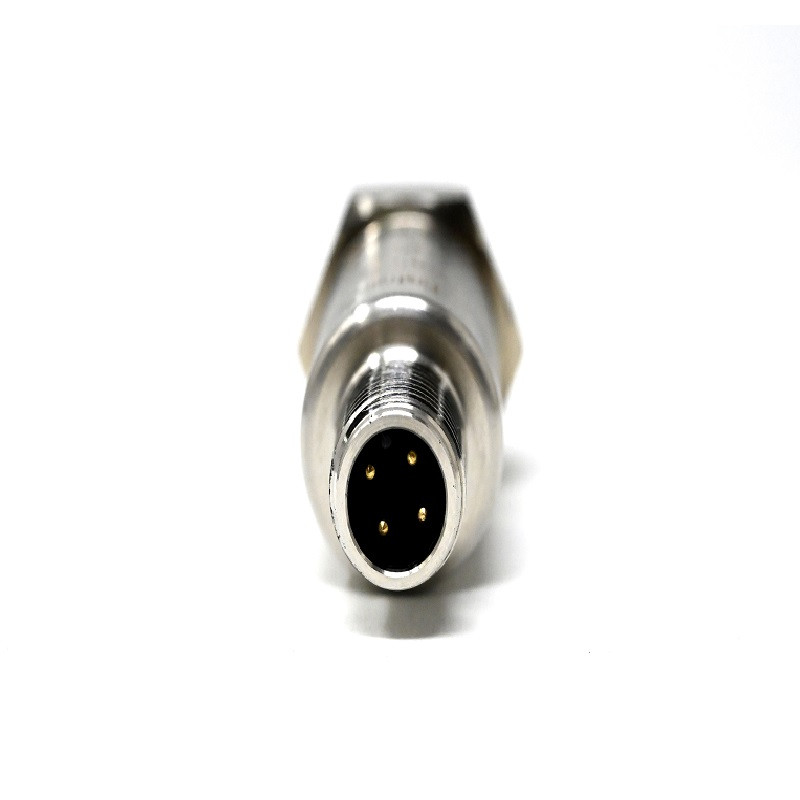

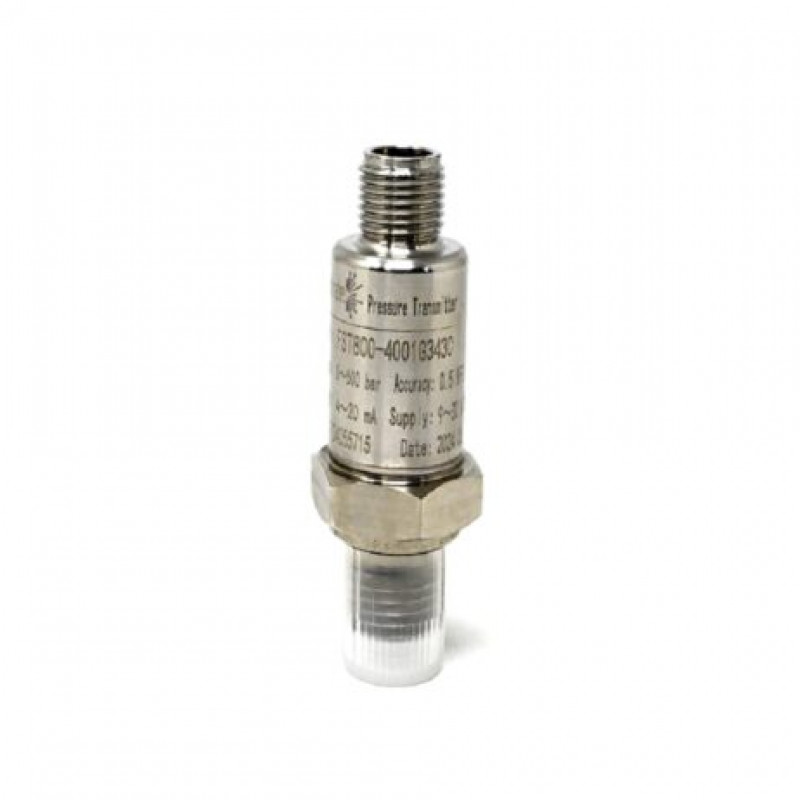

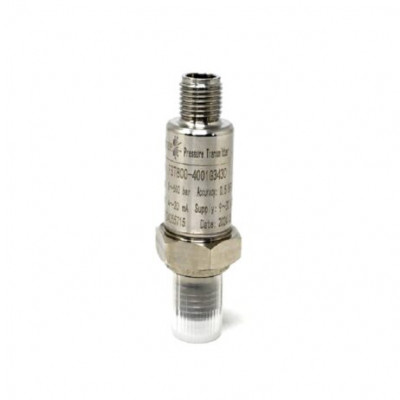

1 x FirstRate FST800-4001 Hydraulic Pressure Transmitter Sensor
