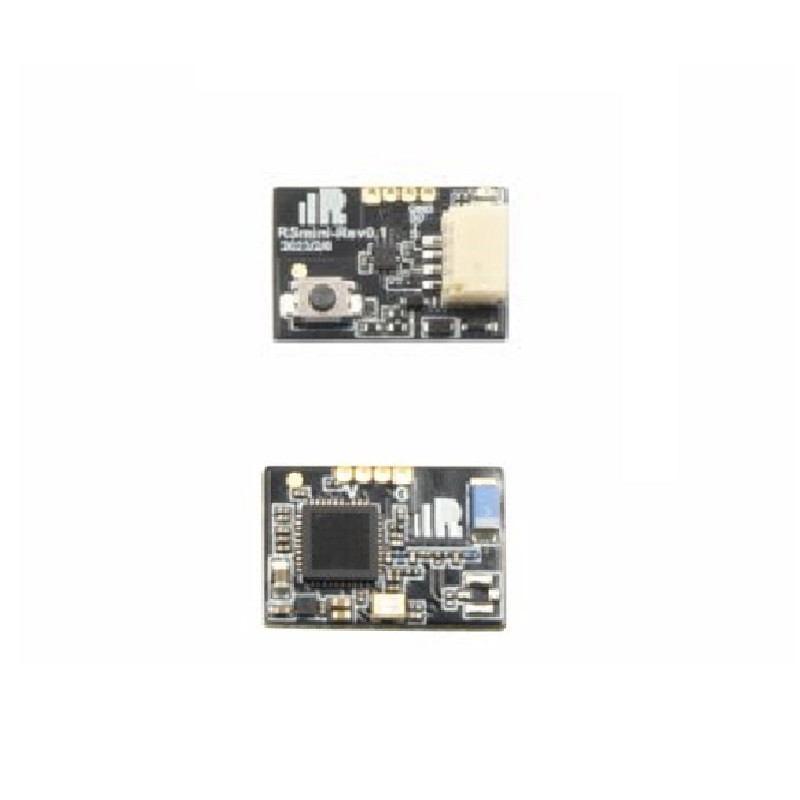

This is FrSky Archer Plus RS Mini Receiver. The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they support even more functions like configurable telemetry power (RS), S.Port / F.Port / FBUS switching, and VFR indicators.

The RS Mini version provides the optimal model-building solution that uses an onboard PCB-type antenna to reduce the building hassle of using the traditional ones and removes the soldering problems by adding a wire connector to lead the external device more easily.

Note: Refer to manuals in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Tiny and super lightweight
2. S.Port / F.Port / FBUS (Configurable via S.Port)
3. Over-The-Air (OTA) FW update
4. SBUS Out port (Supports 16CH / 24CH mode)
5. Onboard PCB-type antenna
6. Easily plug wire connector without soldering

Specifications:

1. Dimension: 16*11mm (L*W)
2. Weight: 1.3g
3. Operating Voltage: 3.5-10V
4. Operating Current: 12mA@5V
5. Onboard PCB-type antenna
6. Control Range: 600m (*The control range may vary based on local conditions.)
7. Compatibility: All FrSky ACCESS/ACCST D16 transmitters.

Package Includes:

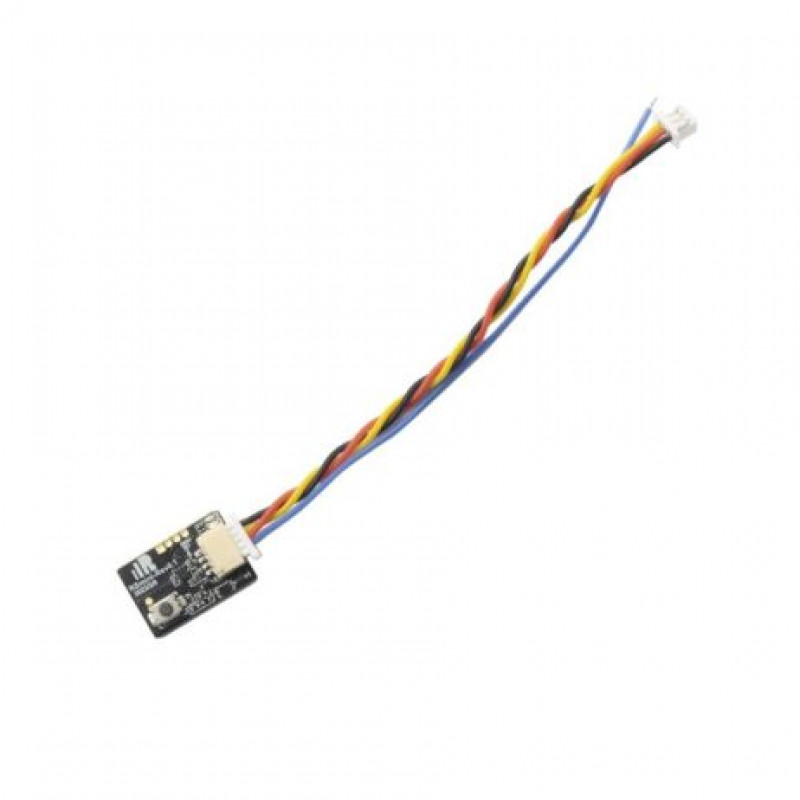

1 x FrSky ArcherPlusRSMini Receiver

1 x Connecting cable
