Key Specifications:-

  • Output Voltage           12V
  • Output Current          8A
  • Type                         DIN Rail Mount Type
  • Approx. Wattage 24W
  • Features                 Standard
  • Series                 G31(Reliable)
  • Mechanical Form Enclosed
  • Warranty                 1 Year Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         185-270V AC


Features:-

  • Single Phase Input
  • Built In Transient protector & EMI filter
  • Protection against short circuit, overload & overvoltage
  • Low ripple & noise
  • Cooling by free air convection
  • Power OK indication, terminations, output set control & rating details on front
  • 100% full load burn in tested
  • Low cost
  • High reliability
  • Compact
  • High efficiency, long life and high reliability
  • Low cost
  • 1 year warranty


Specifications:-



ISOLATION

 Input – Output : 3KVAC, 1 minute

 Input – Earth : 2KVAC, 1 minute

 Output – Earth : 0.5KVAC, 1 minute

EFFICIENCY

 80 ~ 85% @ full load & Nominal input voltage

O/P VOLTAGE ADJUSTMENT

 +/- 10% of nominal output voltage

OVERLOAD PROTECTION

 105% ~ 130% of rated load

LINE & LOAD REGULATION

 Better than 0.5%

HOLD UP TIME

 > 20ms at rated input voltage and load

OPERATING AMBIENT

 0 ~ 50oC, 95% RH

STORAGE AMBIENT

 -20oC to 85oC

SAFETY STANDARD

 Design refers to EN60950-1

EMC STANDARD

 Design refers to EN55022, EN55024

APPROVAL / MARK

 CE

TERMINATIONS

 Screw type, for 2.5mm sq. wire

MOUNTING

 35 mm DIN rail

WEIGHT

 530 grams


Related Documents:-

 G31-120-12 Shavison Datasheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

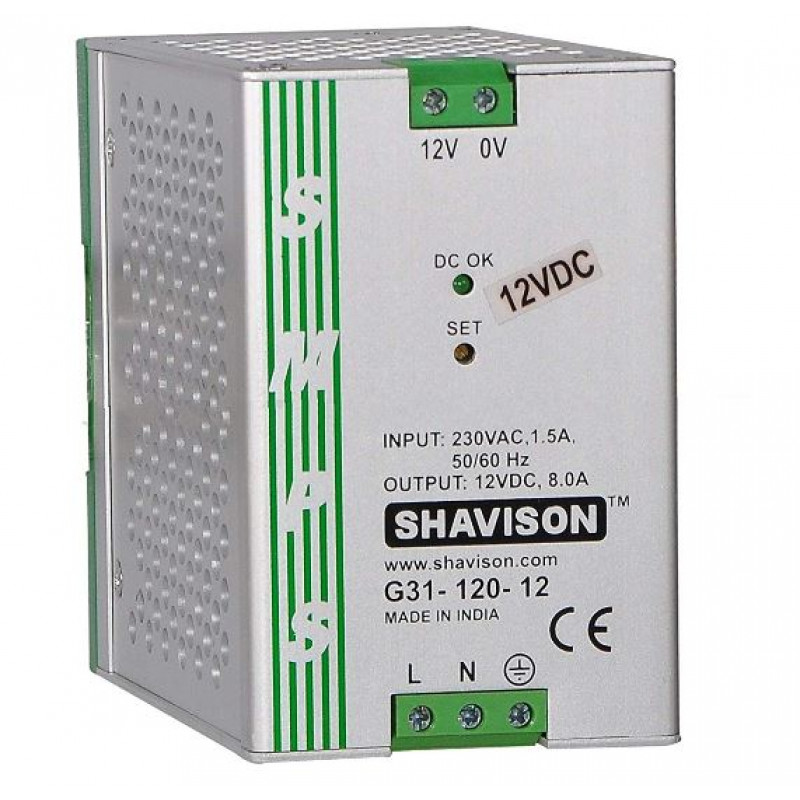

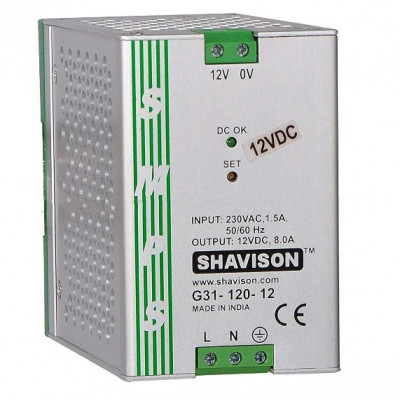

G31-120-12 Shavison SMPS - 12V 8A - 96W DIN Rail Mountable Metal Power Supply

  • Product Code: EC-3097
  • Availability: 61
  • Rs.1,425.00
