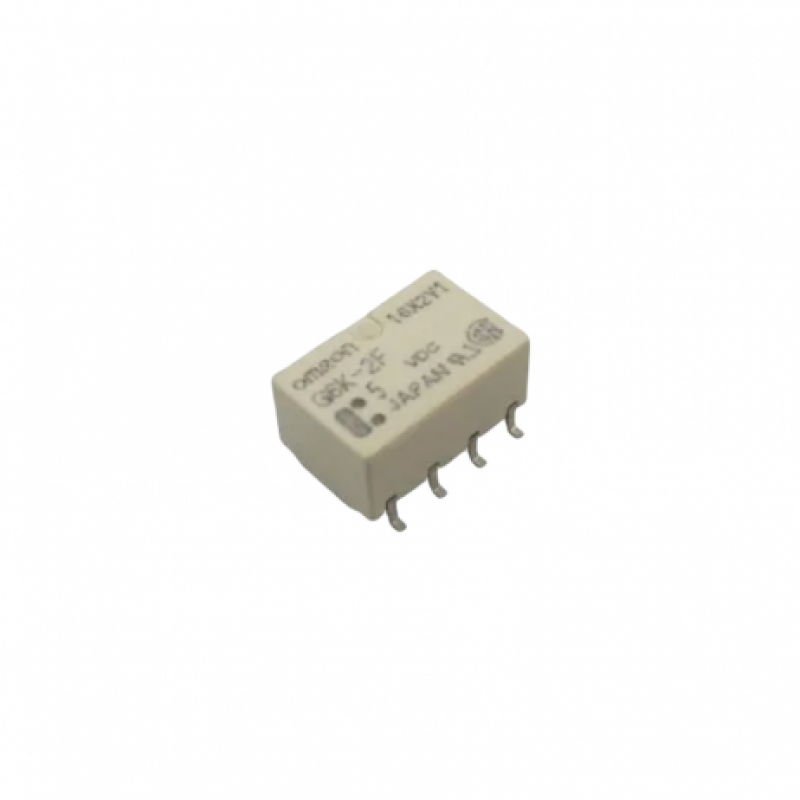

The Omron G6K series are signal relays. These electromechanical signal relays are standard, double pole subminiature model for high density mounting. Surface mounting terminal types incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering. Ideal for applications such as telecommunication, test & measurement equipment and home appliances.
Specifications:
- Coil Resistance: 237ohm
- Coil Type: Non Latching
- Contact Current: 1A
- Coil Voltage: 5VDC
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Product Range: G6K
- Relay Mounting: Surface Mount
- Contact Configuration: DPDT
- Relay Terminals: Solder
Package Includes:
1 x G6K-2F DC5-OMRON ELECTRONIC COMPONENTS-G6K-2F DC5-Signal Relay, 5 VDC, DPDT, 1 A, G6K, Surface Mount, Non Latching
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
G6K-2F DC5-OMRON ELECTRONIC COMPONENTS-G6K-2F DC5-Signal Relay, 5 VDC, DPDT, 1 A, G6K, Surface Mount, Non Latching
- Product Code: EC-25822
- Availability: Out Of Stock
-
Rs.158.00
- (Excluding 18% GST)
