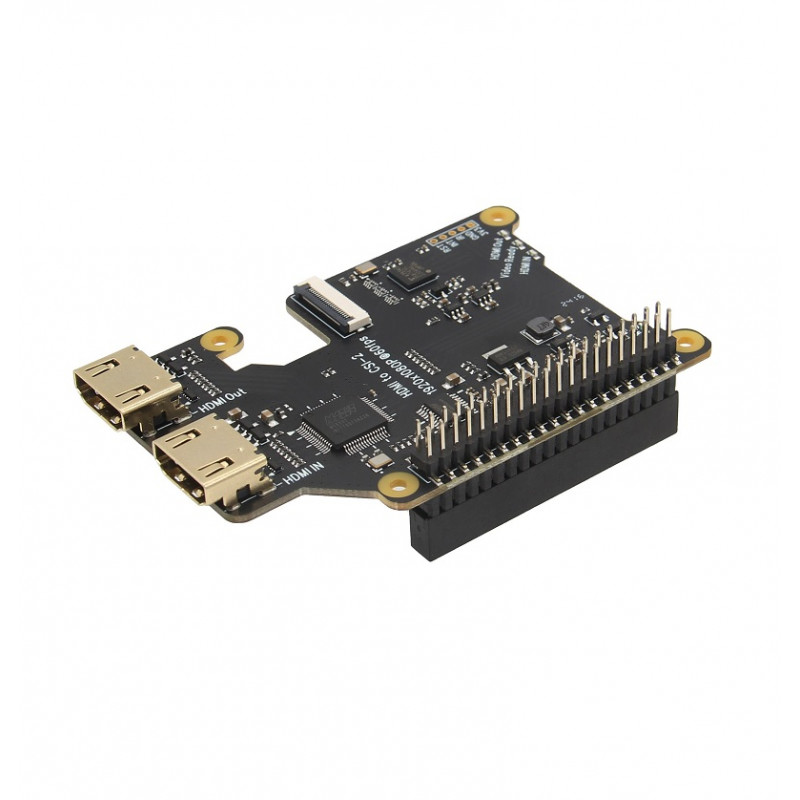

The X1301 HDMI to CSI-2 Shield bridge with I2S audio interface is a specialized product tailored for the Raspberry Pi. HDMI to CSI-2 Shield is equipped with the Toshiba TC358743XBG bridge chip and a one-to-two active HDMI splitter chip, enabling support for HDMI input and HDMI Pass-Through up to 1080P at a refresh rate of 60 fps.
HDMI to CSI-2 Shield the HDMI Pass-Through feature, you can seamlessly output the HDMI to CSI-2 Shield signal (audio/video) from various source devices such as a Blu-ray Disc player, cable box, or satellite receiver to a TV or projector for local monitoring, even when the Raspberry Pi is in standby mode.
Features:
- For use with Raspberry Pi 5/4B/3B+/3B
- Capable of handling video formats up to 2K Full HD (19201080, 60fps)
- Supports HDMI Pass-Through for local HDMI display
- Equipped with the HDMI to CSI-2 bridge chip: Toshiba TC358743XBG
- Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane
- Enables HDMI audio input and transmission over IS
- Prevents HDMI backpowering to the Raspberry Pi CSI
- Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch

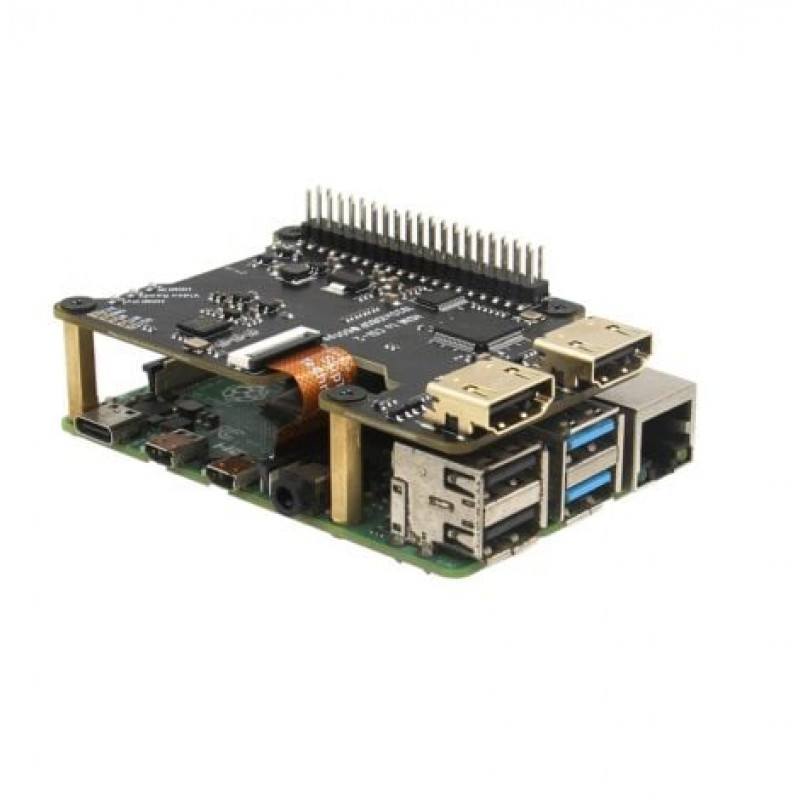

- Designed to be attached on top, allowing stacking with other HATs
- Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down
- Easily mountable on the Raspberry Pi, allowing you to customize your perfect case
Specification:
- Compatibility: Raspberry Pi 5, 4B, 3B+, 3B
- Video Support: Up to 2K Full HD (19201080, 60fps)
- HDMI Pass-Through: Allows local HDMI output while Pi is in standby
- Bridge Chip: Toshiba TC358743XBG
- Data Interface: MIPI CSI-2 with 4 lanes (up to 1 Gbps each)
- Audio: HDMI audio input over IS
- Protection: Prevents HDMI backpowering to Raspberry Pi
- Connector: CSI-2 22-pin FPC, 0.5mm pitch
- Design: Stackable on top of other HATs

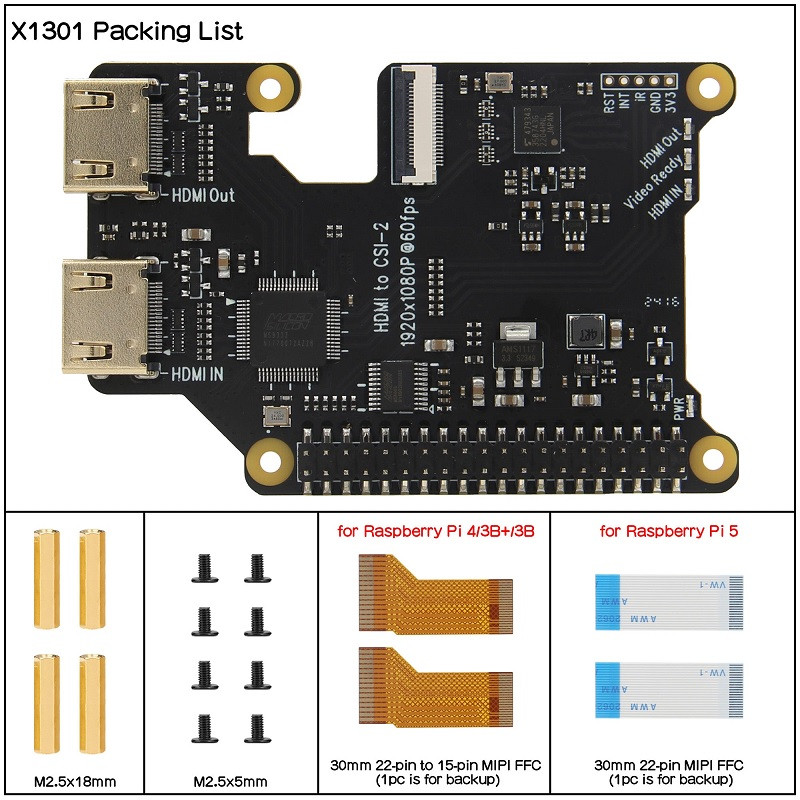

Package include:
1x X1301 V1.1 HDMI to CSI-2 module
2x 22-pin to 15-pin MIPI FFC 30mm (For Raspberry Pi 4B/3B+/3B)
2x 22-pin MIPI FFC 30mm (For Raspberry Pi 5B)
4x M2.5*19mm F/F Spacer
8x M2.5*5mm Screw
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Geekworm X1301 HDMI to CSI-2 Shield for Raspberry Pi 5/4B/3B+/3B Support 1080P@60fps
- Product Code: EC-29861
- Availability: Out Of Stock
-
Rs.3644.00
- (Excluding 18% GST)
