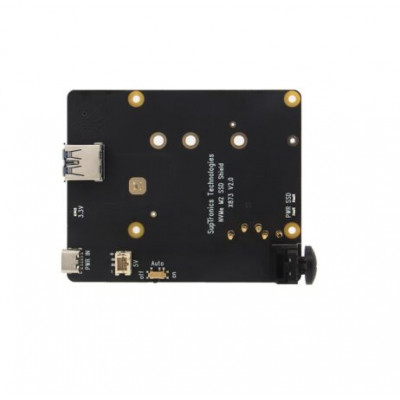

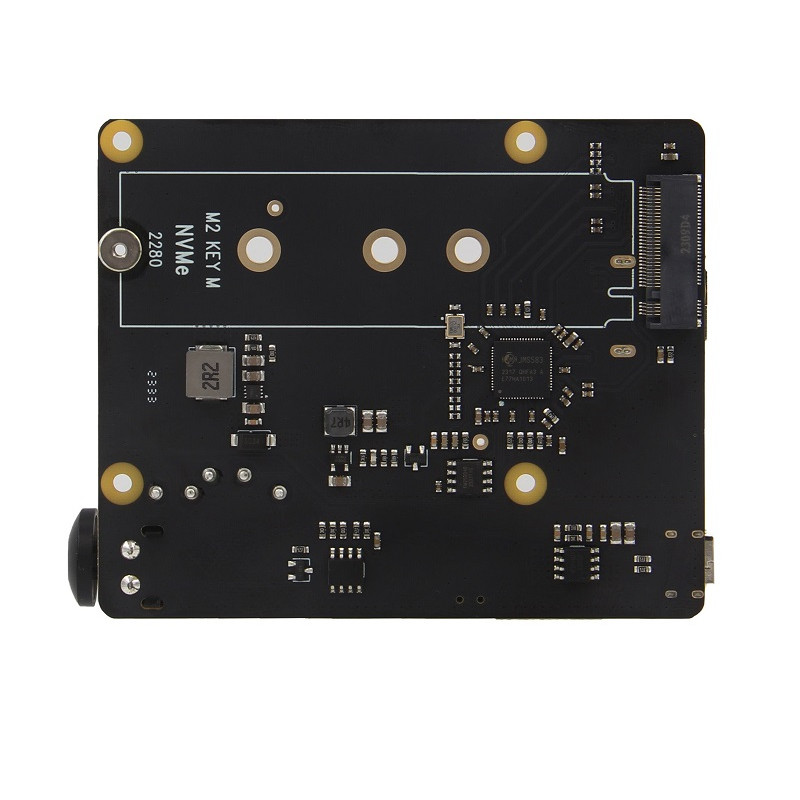

The X873 V2.0 is a USB 3.0 to NVMe SSD Storage Expansion Board specifically designed for the Raspberry Pi 4, providing a simple and speedy means to expand storage capacity for your Raspberry Pi 4. Storage Expansion Board compact and sleek shield facilitates effortless connection of various M.2 SSD Storage Expansion Board sizes (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 4. The SuperSpeed USB 3.0 port enables rapid data transfer speeds of up to 5Gbps, allowing you to move large amounts of data within seconds. Additionally, the built-in LED light indicates the reading or writing status, eliminating the need for guesswork

The X873 also includes a power button for easy power control, which is a great feature missing in the Raspberry Pi 4. A single press turns it on, while holding it for 3 seconds initiates a safe shutdown, and holding it for 7 seconds forces a power-off.

Whether you aim to establish a home media center or create a Network-attached storage (NAS) system for storing and streaming your videos, music, and photos, the X872 can function as an ideal storage solution. Moreover, it supports booting the operating system from your SSD Storage Expansion Board, leading to quicker application launches, web serving, and file copying.

Features:

1. Model: X873 V2.0
2. Compatible with Raspberry Pi 4 Model B Only
3. Supports high-capacity M.2 NVMe solid-state drives up to 4TB
4. Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
5. Supporting booting OS from your SSD for faster app opens, web serving and file copying
6. Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllerUSB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
7. Compatible with USB 2.0
8. LED blue indicator indicates drive status
9. On-board button to control power on, reboot and safe shutdown
10. On-board LED shows the status of power on, reboot and shutdown
11. Supports safe shutdown and full power off through software
12. Supports auto power-on
13. Powering via both GPIO pin header and USB port, ensuring sufficient power supply without any worries
14. Designed to be attached on bottom, allows using your favorite HATs alongside it
15. Specially-made USB3.1 jumper to connect with Raspberry Pi no additional cables needed
16. PCB Size: 87.3mm x 72mm

Specifications:

1. Model: X873 V2.0
2. Compatibility: Raspberry Pi 4 Model B
3. SSD Support: Up to 4TB, M.2 NVMe (2280, 2260, 2242, 2230)
4. Data Transfer: USB 3.1 Gen1, up to 5Gbps
5. Boot Capability: Supports booting OS from SSD
6. Power Button: On/Off, safe shutdown, forced power-off
7. LED Indicators: Blue LED for drive status and power notifications
8. Power Supply: 5V via USB3 port & GPIO header

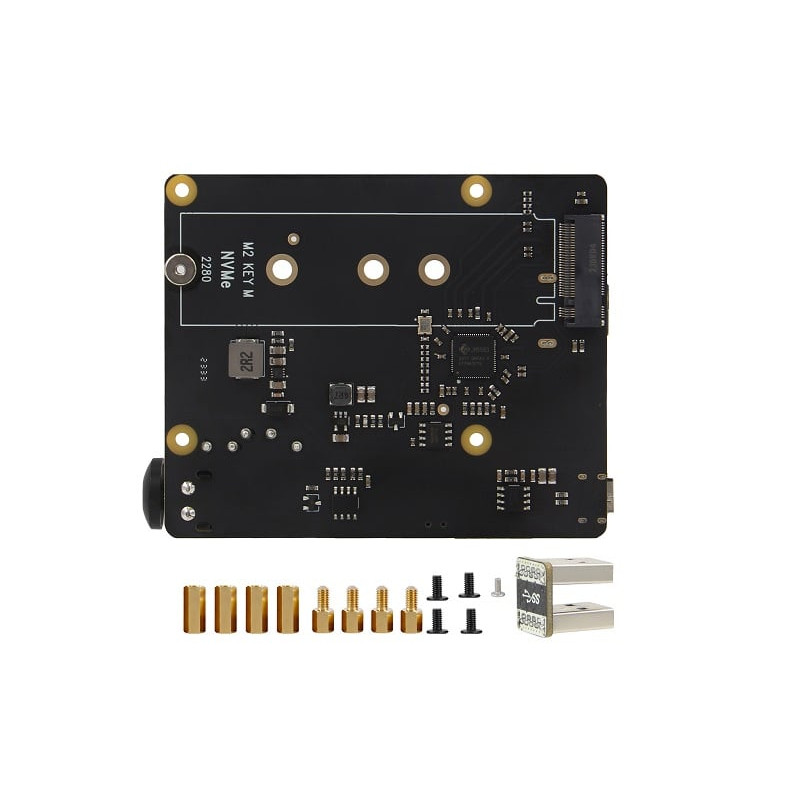

Package include:

• 1x X873 V2.0 shield
• 1x USB3.0 Connector
• 4x M2.59.5mm F/F Spacers
• 4x M2.55+6mm F/M Spacers
• 4x M2.5x5mm Screws
• 1x M2x4mm Screw
