H0512S-2WR2 series meets reinforced insulation requirements. They are especially designed for applications where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required. They are widely used in applications such as medical, electrical grid, IGBT driver circuits and similar where:

1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less;

2. An extremely high input to output isolation voltage of up to 4200VAC or 6000VDC is required;

3. The requirement for ripple & noise or a tight output regulation is not as strict

Features:-

• SIP package
• High efficiency up to 84%
• Reinforced insulation
• Patient leakage current 2µAmax.
• I/O isolation test voltage 4.2k VAC or 6kVDC
• Operating ambient temperature: -40℃to+85℃
• Internal surface mounted design
• Industry standard pin-out
• EN60601-1, ANSI/AAMI ES60601-1 approved(1xMOPP/2xMOOP)

Specifications:-

• I/p Voltage range:4.5-5.5vdc
• Nominal voltage:5Vdc
• O/p voltage:12V
• O/p current:167/17
• wattage:2W
• Isolation:6kVdc
• Package: SIP

Package Includes:-

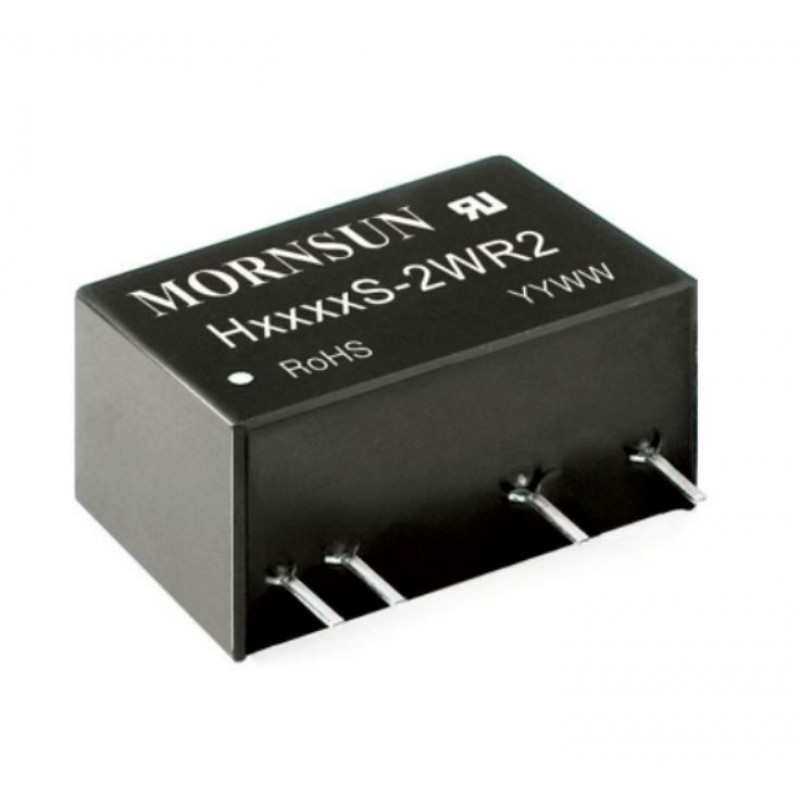

1 x H0512S-2WR2 Mornsun 5V to 12V DC-DC Converter 2W Power Supply Module - SIP Package
