The MP3-4-AV-8-A Panel Meter is a versatile and advanced measurement instrument designed for accurate and reliable monitoring of various electrical parameters in industrial and commercial applications. This cutting-edge panel meter combines precision measurement capabilities with user-friendly features, making it an essential tool for monitoring and controlling electrical systems.
Features:
- Multi-Parameter Measurement: The MP3-4-AV-8-A Panel Meter is capable of measuring multiple electrical parameters simultaneously, including voltage (V), current (A), and power (W). This makes it ideal for monitoring the health and performance of electrical circuits and equipment.
- Large LCD Display: The meter features a large, easy-to-read LCD display that provides clear and concise information about the measured parameters. The display offers real-time readings and is backlit for enhanced visibility even in low-light conditions.
- User-Configurable: Users can easily configure the meter to display specific parameters and units of measurement. The user interface is intuitive, allowing for quick setup and customization according to the specific requirements of the application.
- Accuracy and Precision: Known for its high level of accuracy and precision, the MP3-4-AV-8-A Panel Meter ensures reliable measurement results. This accuracy is crucial for maintaining the integrity and safety of electrical systems.
- Alarms and Notifications: The panel meter includes programmable alarm thresholds for each measured parameter. When these thresholds are exceeded, the meter can generate visual or audible alarms, alerting operators to potential issues or anomalies in the system.
- Data Logging and Analysis: With its data logging capabilities, the meter can record measurements over time. This historical data can be used for analysis, troubleshooting, and performance evaluation of the electrical system.
- Communication Options: The MP3-4-AV-8-A Panel Meter offers various communication interfaces such as RS-485 or Ethernet, allowing seamless integration into larger monitoring and control systems. This enables remote monitoring and data collection, enhancing overall system management.
- Durable Construction: Constructed with high-quality materials, the panel meter is designed to withstand harsh industrial environments. Its robust build ensures long-term reliability and performance even in demanding conditions.
- Compact Design: The compact form factor of the meter allows it to be easily installed on control panels, switchboards, or other equipment without taking up excessive space.
- Certifications and Standards: The meter complies with industry standards and regulations, ensuring its suitability for use in a wide range of applications across industries.
Specifications:
- Appearance: 96(W) x 48(H) x 112(D)
- Power Supply AC: 100 240 V a.c., 50 60 (voltage fluctuation rate 10 %)
- DC: 24 V d.c. (voltage fluctuation rate 10 %)
- Power Consumption AC: 5 VA DC: 5W
- Display: 7-segment LED Display
- Insulation Resistance: 100 M min. (at 500 V d.c.) between the external terminal and case
- Dielectric Strength: 2000 V a.c. min. for 1 minute between the external terminal and the case
- Noise Immunity By noise simulator, square-shaped wave noise, pulse width 1, 3000 V
- Vibration Resistance Malfunction: 10 55 Single amplitude 0.5 XY Z each direction for 1 hour
- Durability: 10 55 Single amplitude 0.75 XYZ each direction for 2 hours
- Shock Resistance Malfunction: 100 for 3 times each in XYZ direction
- Durability: 300 for 3 times each in XYZ direction
- Operating Ambient Temperature: -10 ~ +55 C (with no freezing)
- Operating Ambient Humidity: 35 ~ 85 % R.H.
- Operating Circumstance: With no corrosive gas
- Storage Ambient Temperature: -20 ~ 65 C (with no freezing)
Package Includes:
1 x MP3-4-AV-8-A Panel Meter
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

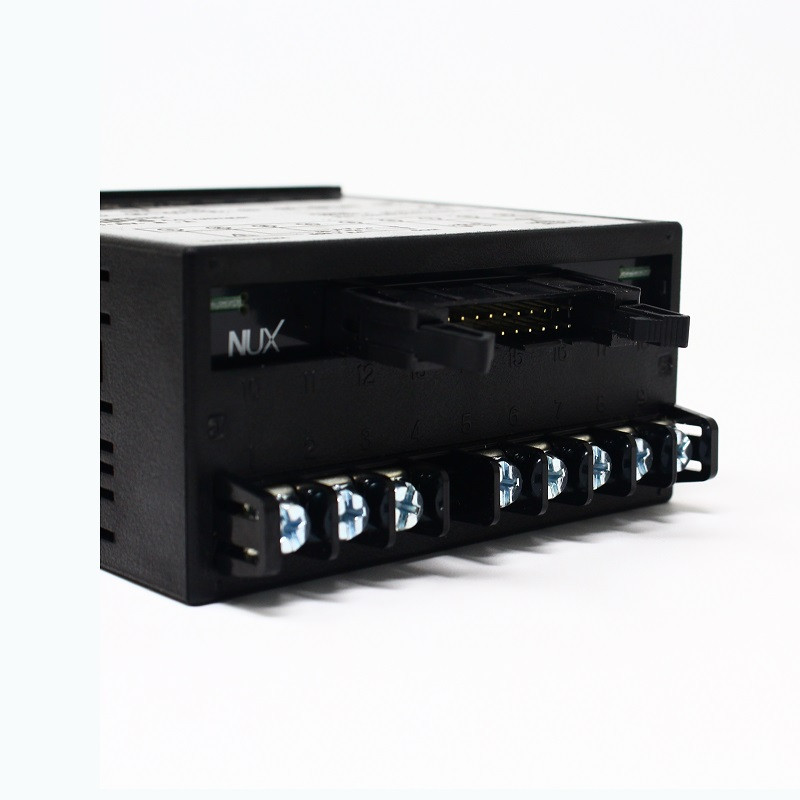

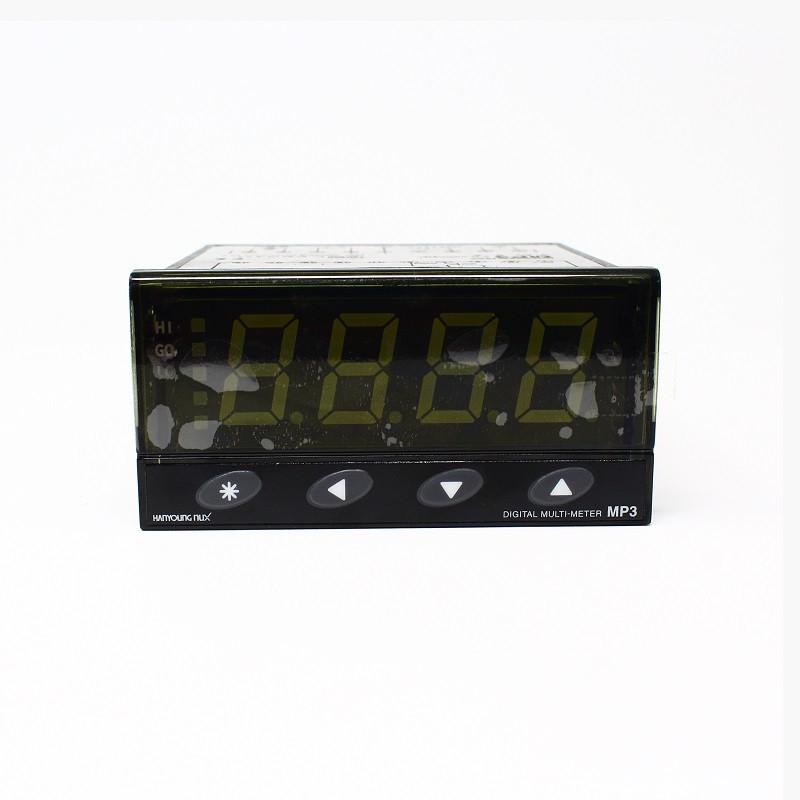

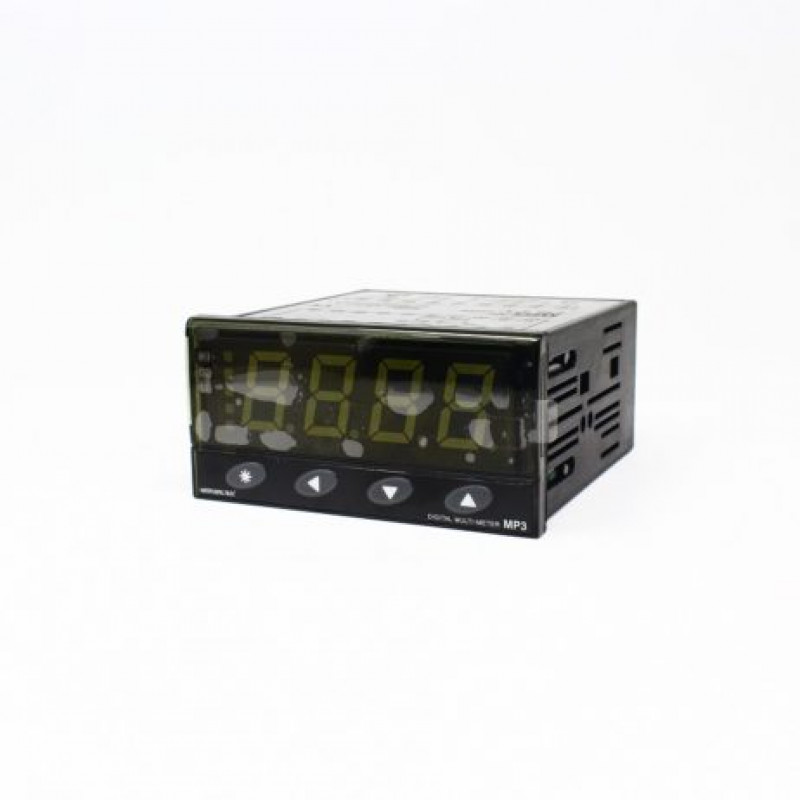

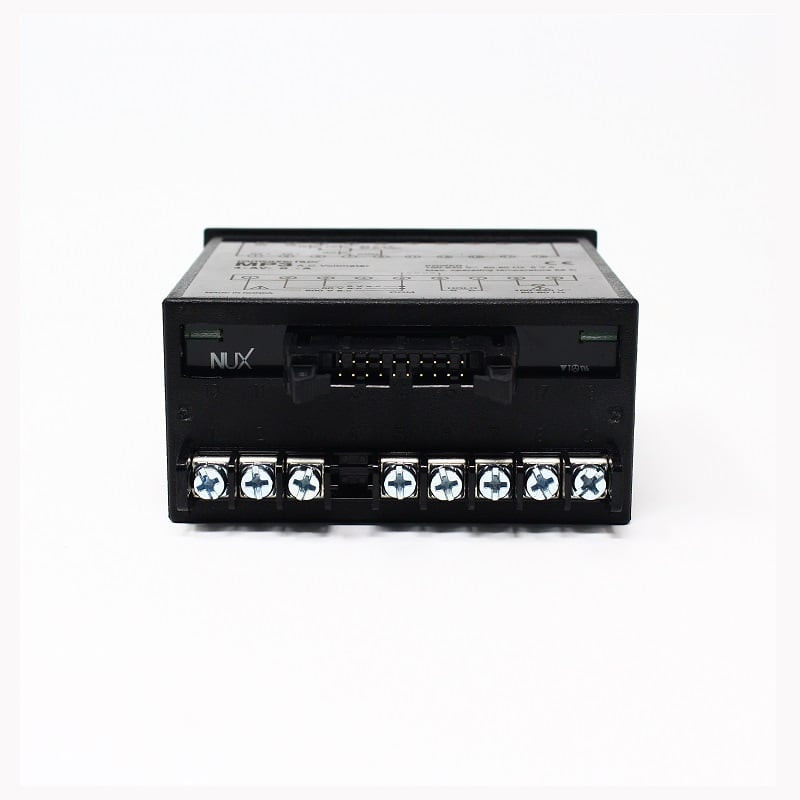

Hanyoung Nux MP3-4-AV-8-A Panel Meter
- Product Code: EC-19701
- Availability: Out Of Stock
-
Rs.6705.00
- (Excluding 18% GST)
