The HEF4093BT is a quad two input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive going and negative going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH).
Note: for more technical details go through the datasheet in the attachment section
Features:
- Schmitt trigger input discrimination
- Fully static operation
- Standardized symmetrical output characteristics
Package Includes:

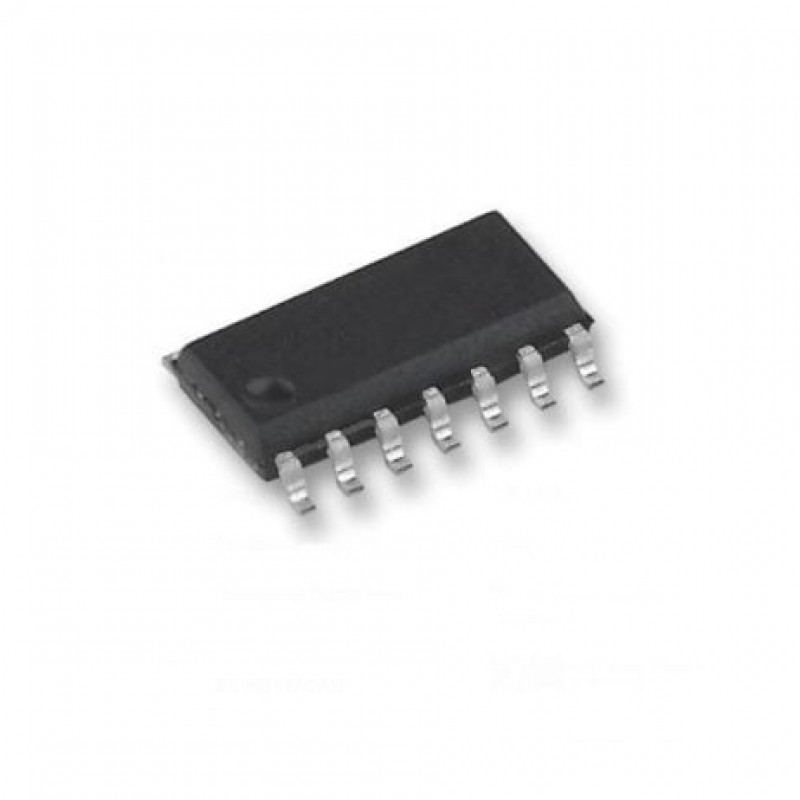

1 x HEF4093BT,653 NEXPERIA Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, SOIC, 4093
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HEF4093BT,653 NEXPERIA Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, SOIC, 4093
- Product Code: EC-18722
- Availability: Out Of Stock
-
Rs.26.00
- (Excluding 18% GST)
