A helical antenna is an antenna consisting of one or more conducting wires wound in the form of a helix. A helical antenna made of one helical wire, it has been widely used in telecommunication to communicate. One of the main reasons to use a helix antenna is its low cost and compact size.
Application: Sub GHz,Smart Meters
Features:
- Compact Size
- Low Cost
- Right Angle version available on request
- Tin and Nickel plated for corrosion-free
- Antennas with a rubber sleeve to protect from sparks
Package Includes:
1 x Helix Antenna 433 Mhz
Specifications :-
| Model | LWC-433-HELIX-15 |
| Frequency Range | 433 MHz |
| Gain | Approx 0.5 dBi (depends on PCB ground plane) |
| Impedance () | 50 |
| VSWR | < 1.5 |
| Polarization | Vertical |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 30 |
| Connector | Direct Solder |
| Housing | PB (Passivated) |
| Operating Temperature (C) | -30 to 60 |
| Humidity | 5 95% |
| Length (mm) | 23 |
| Diameter (mm) | 9 |
| Weight (gm) | 1.2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 56.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

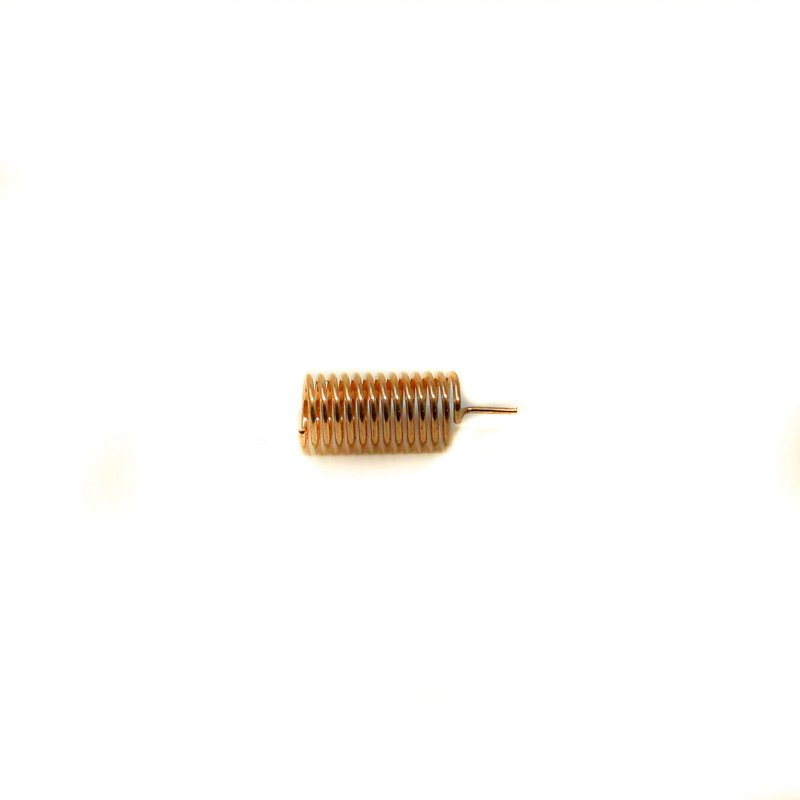

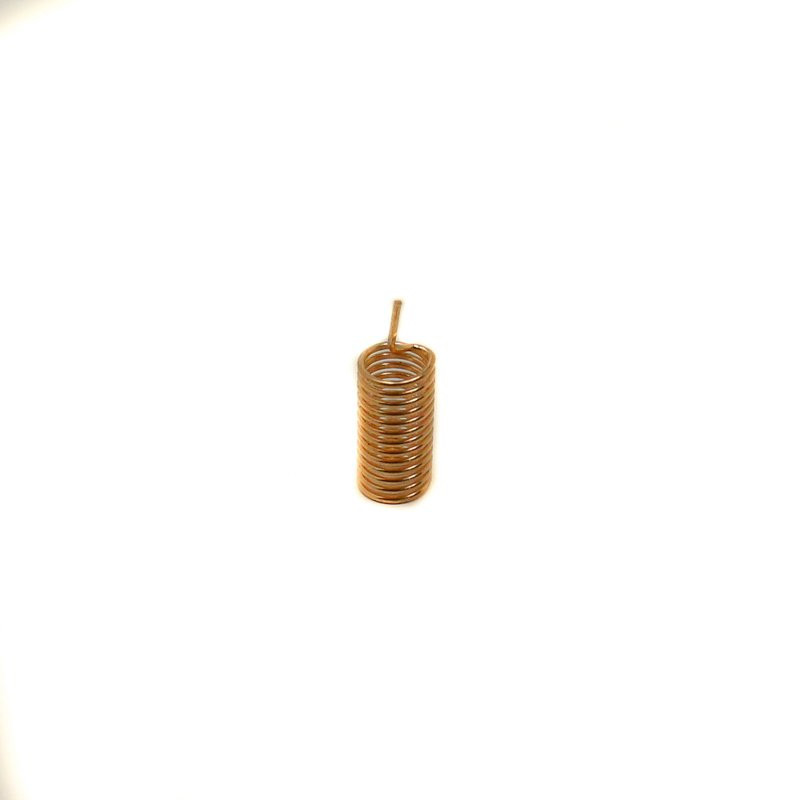

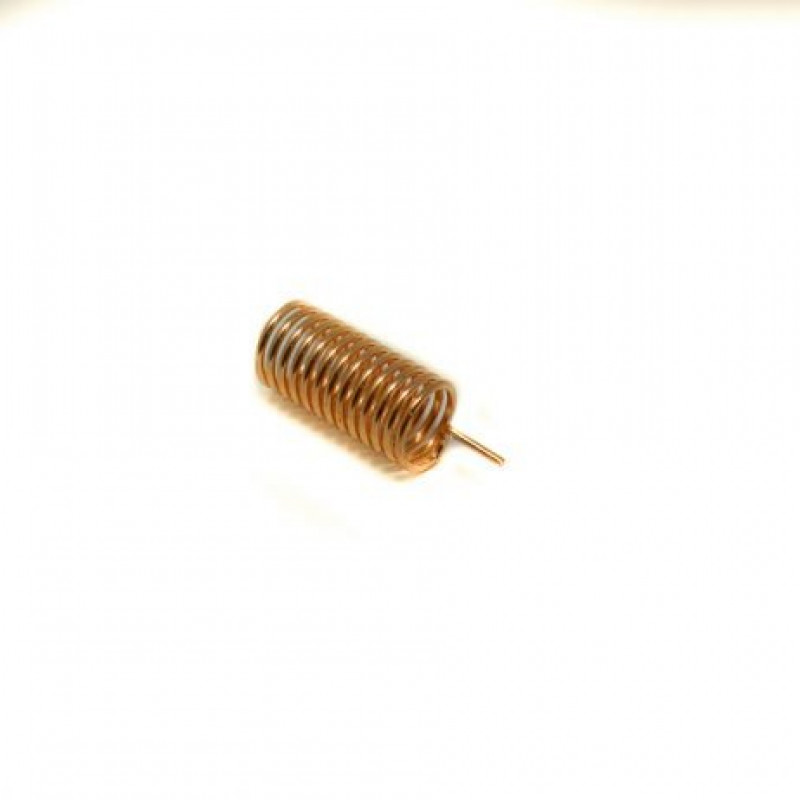

Helix Antenna 433Mhz
- Product Code: EC-5985
- Availability: Out Of Stock
-
Rs.43.00
- (Excluding 18% GST)
