CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.

CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, making it perfectly Arduino-Compatible, can run the LoRaWAN protocol stably, on-board 1/2 AA battery holder allow users use a battery easily.

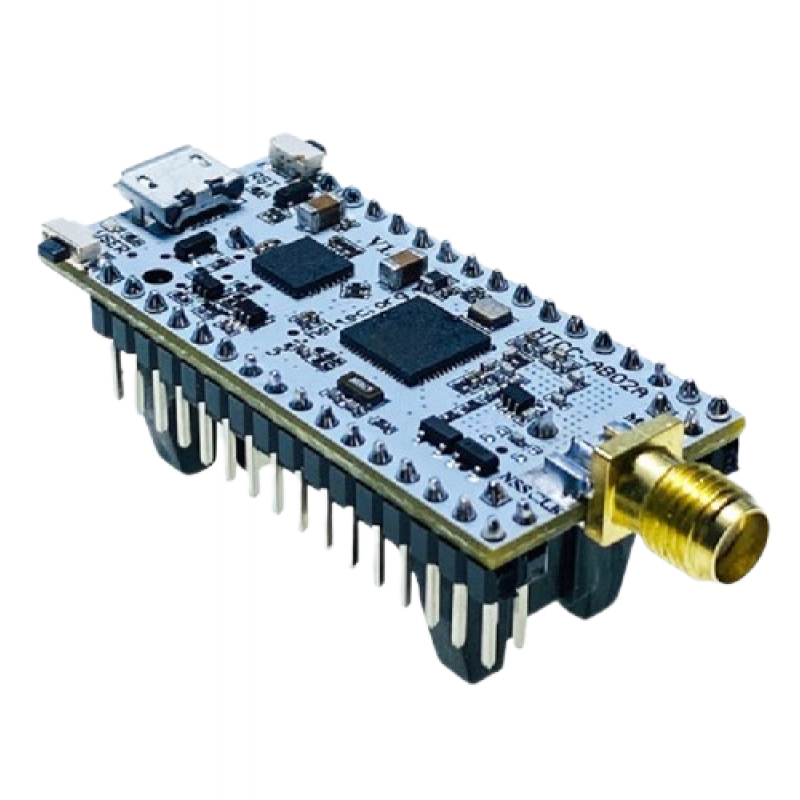

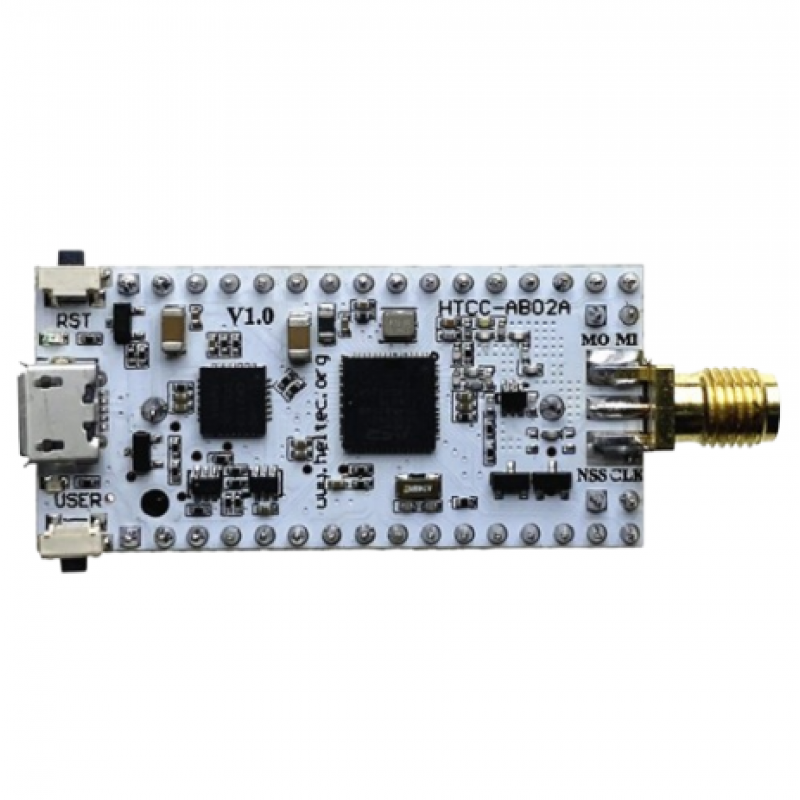

HTCC-AB02A is a Dev-Board. Friendly designed for developers, easy to verify communication solutions.

Features:

1. Perfect Arduino-Compatible!
2. CE and FCC certification;
3. Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
4. LoRaWAN 1.0.2 support;
5. Ultra low power design, 3.5uA in deep sleep;

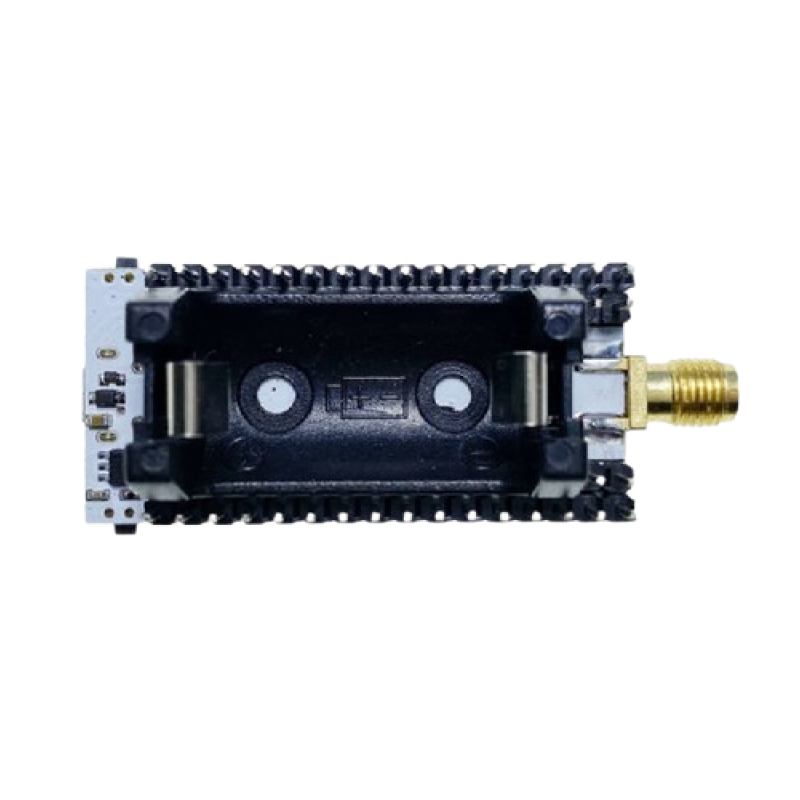

6. 1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery cant charge, but onboard USB / battery power automatic switching allows connect USB when the battery is assembled);
7. Good impendence matching and long communication distance.
8. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
9. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

Package Includes:

1 x CubeCell AB02A 1/2AA Node

1 x Glue Rod Antenna

1 x SH1.252 Battery Connector
