CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.

CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.

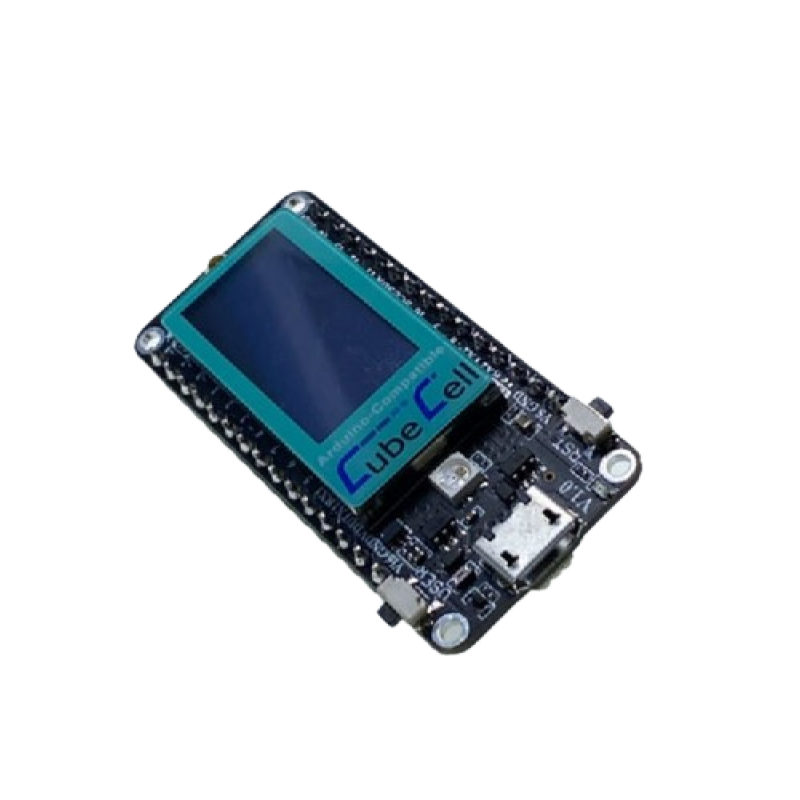

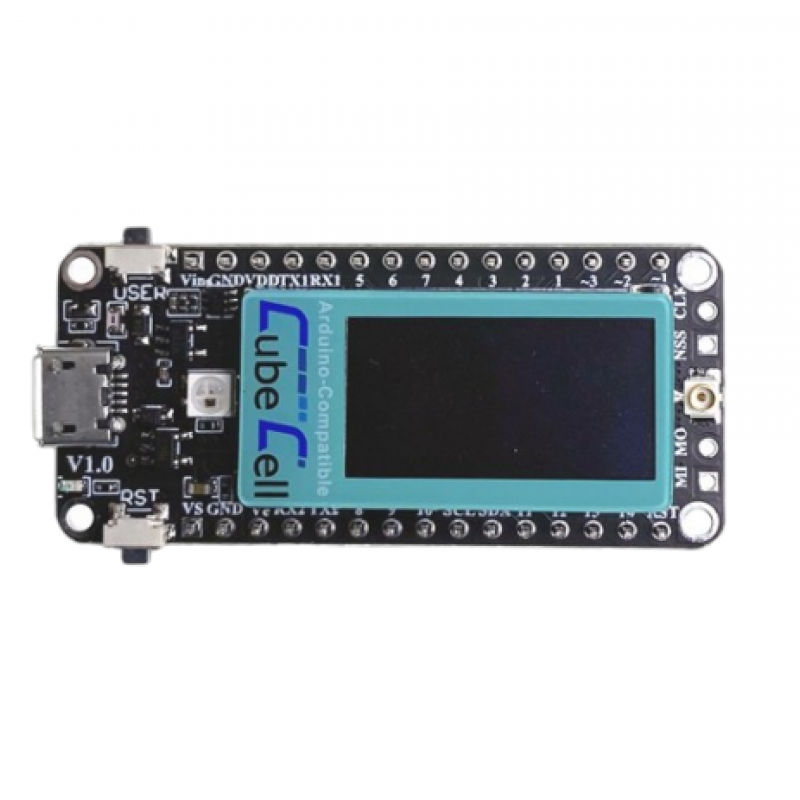

HTCC-AB02 is a Dev-Board. Friendly designed for developers, easy to verify communication solutions.

Features:

1. Perfect Arduino-Compatible!
2. CE and FCC certification;
3. Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
4. LoRaWAN 1.0.2 support;
5. Ultra low power design, 3.5uA in deep sleep;
6. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
7. Good impendence matching and long communication distance.

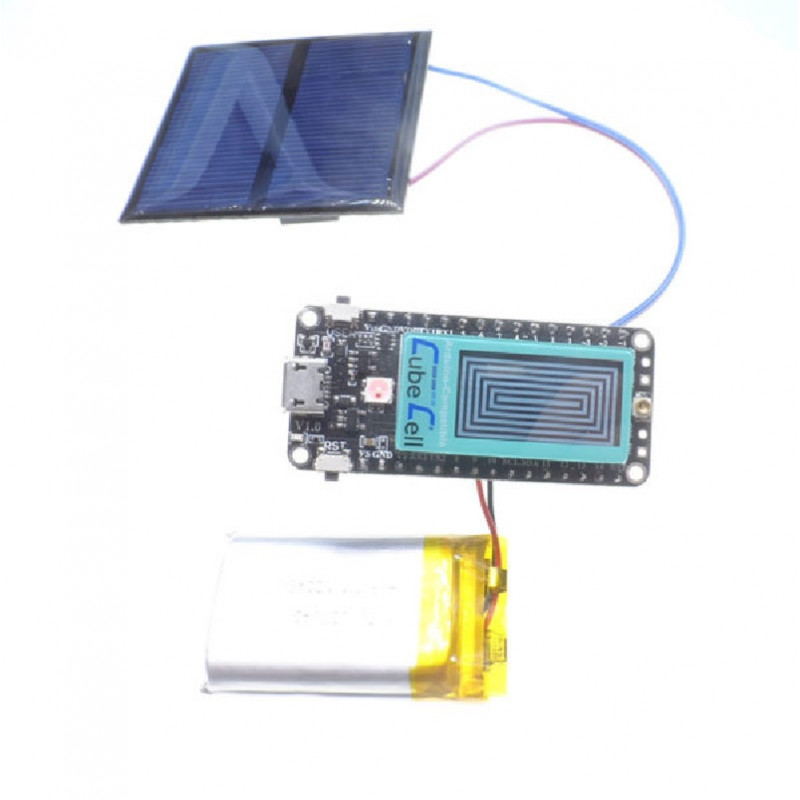

8. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
9. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
10. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
11. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information

Package Includes:

1 x CubeCell AB02 Dev-Board Plus

1 x Antenna

1 x SH1.252 Battery Connector
