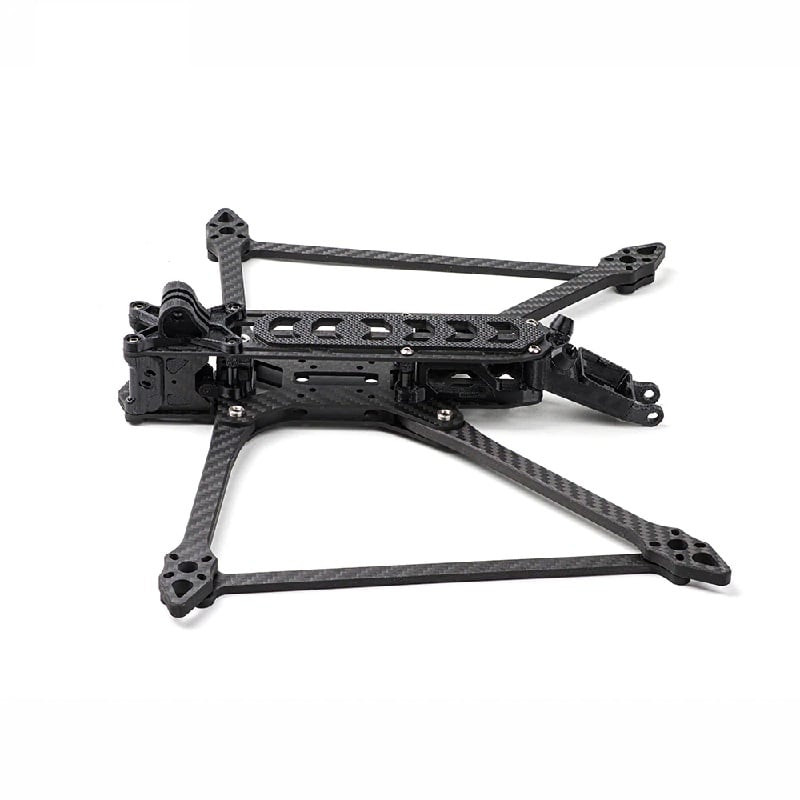

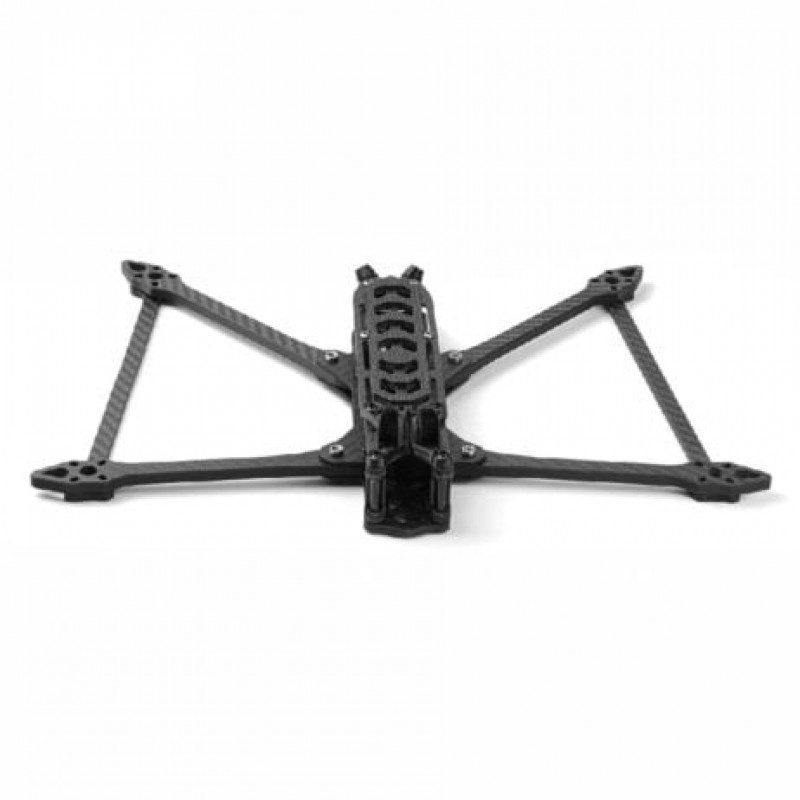

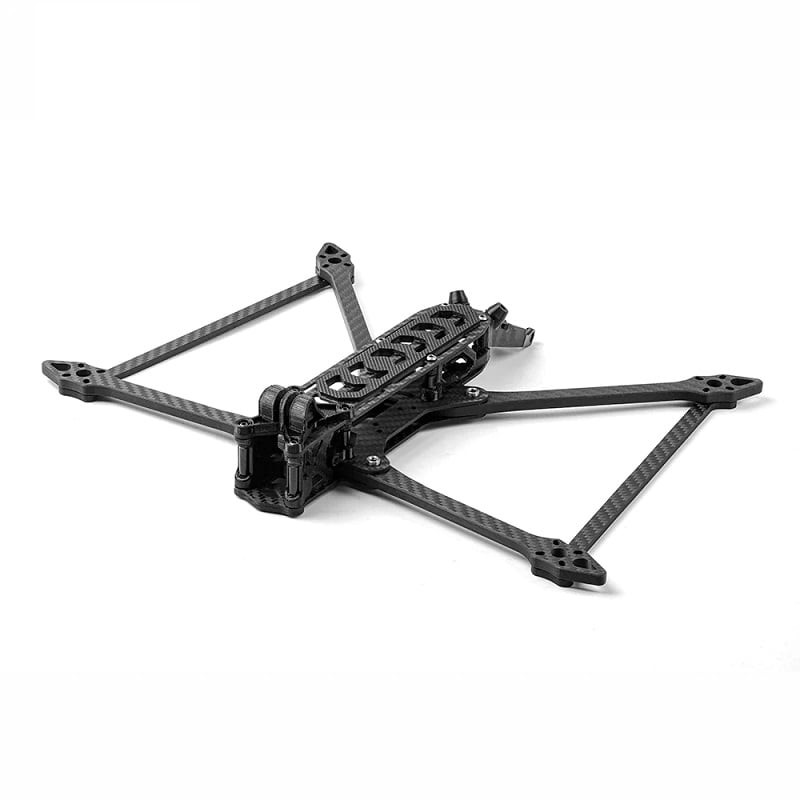

The HGLRC Rekon7 Pro Long Range Frame Kit is designed for optimal long-range performance with its 7-inch size. This frame kit offers a balance between durability and lightweight construction, making it suitable for extended flight sessions. It accommodates an efficient component layout and provides ample space for various electronics. Whether for aerial photography or exploration, the Rekon7 Pro frame kit delivers a reliable foundation for building a capable long-range drone.
Specifications:
- Product name: Rekon
- Model:Rekon7 LR Frame kit
- Material:3K Carbon fiber
- Type:7 inch
- Wheelbase:324mm
- Size:337*246mm
- Top plate thickness:2mm
- Bottom plate thickness:2mm
- Middle plate thickness:2mm
- Front arm:6mm
- Rear arm:6mm
- Frame protection bar:2mm
- Camera side plate:2mm
- Top and middle plate space:20mm
- Flight controller mounting hole:20x20mm
- Camera mount:19*19mm/20x20mm
- Motor mounting hole:16*16/19*19mm
- Weight:0g
Features:
- Specifically designed for long-range flights
- 7-inch frame size
- Durable yet lightweight construction
- Optimized layout for components
- Ideal for aerial photography and exploration
- Reliable foundation for long-range drone building
Package Includes:
1x 2mm top plate
1x 2mm base plate
1x 2mm mid plate
2x 6mm front arm
2x 6mm rear arm
2x 2mm rack protection board
2x 2mm camera side panel
2x 4mm Arm Reinforcement rod
2x M3*28mm black mesh aluminum column
4x M3*20mm black mesh aluminum column
2x M3*18mm black mesh aluminum pillar
4x M4*12 Screws
4x M3*20 Screws
4x M3*16 Screws
4x M3*10 Screws
8x M3*8 Screws
4x M2*20 Screws
1x M2*16 Screws
1x M2*10 Screws
2x M2*4 Screws
1x M5 lock nut (red)
4x M3 self-locking nuts
5x M2 self-locking nuts
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x battery straps 20x250mm
1x Battery Anti-slip pad
1x TPU black GoPro holder mount
1x TPU black GPS mount
1x TPU black antenna mount
1x TPU black T-antenna mount
1x TPU black buzzer mount
1x TPU black DJI Air unit Block A
1x TPU black DJI Air unit Block B
1x TPU black DJI O3 holder mount
1x TPU black Camera converting seat
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HGLRC Rekon7 Pro Long Range Frame Kit 7 Inch
- Product Code: EC-20003
- Availability: Out Of Stock
-
Rs.9488.00
- (Excluding 18% GST)
