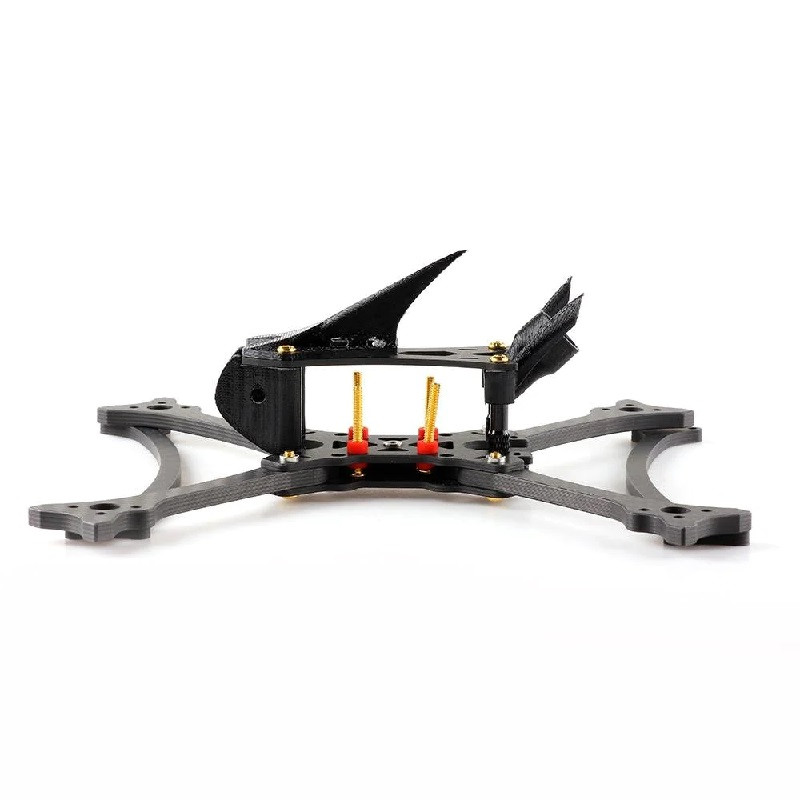

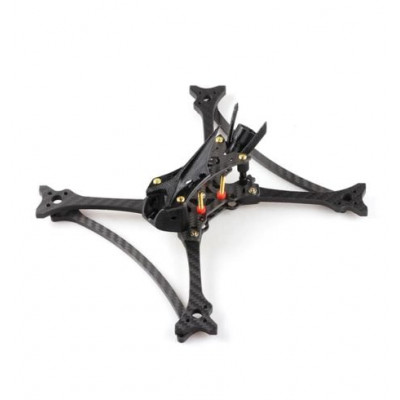

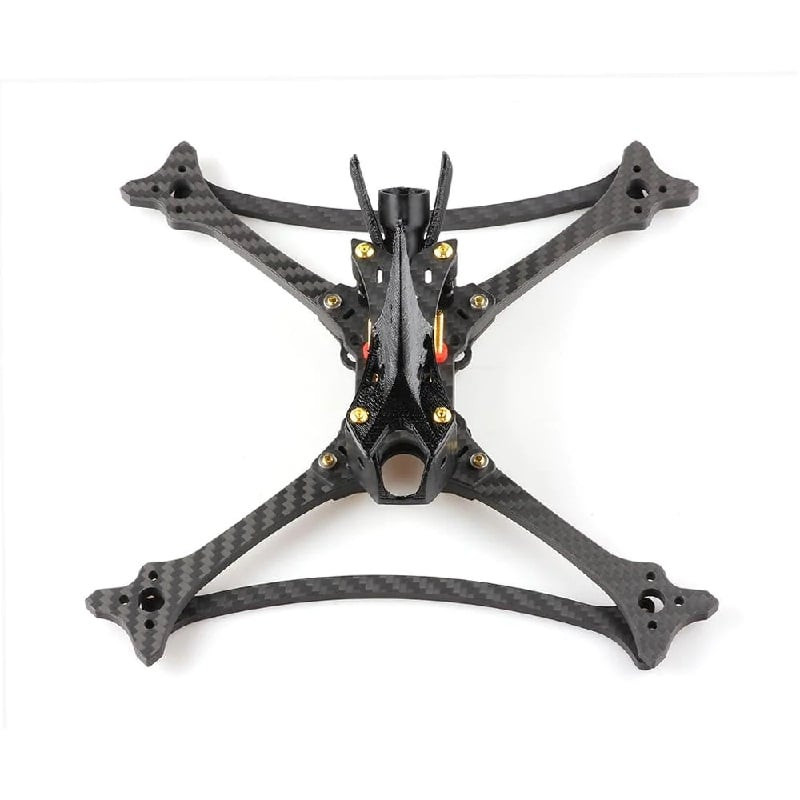

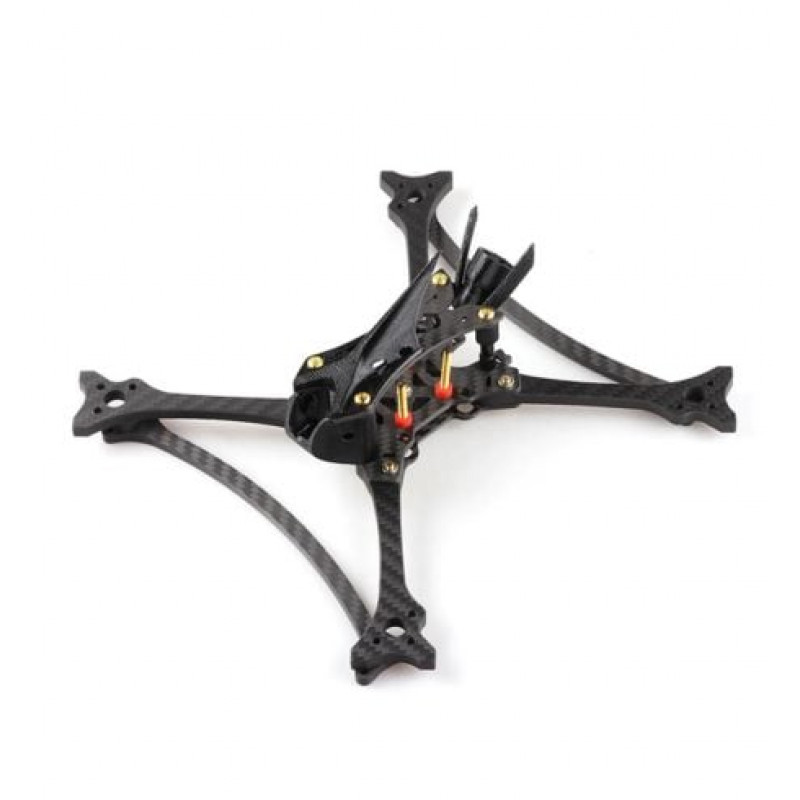

The HGLRC Wind5 Lite True X Frame Kit with HD Vista is a top-notch package designed for high-performance FPV drone enthusiasts. This kit includes a robust True X frame optimized for stability and agility during flights. The integrated HD Vista system ensures crystal-clear digital video transmission for immersive flying experiences. With HGLRCs renowned quality, this kit provides an exceptional foundation for building a cutting-edge FPV drone capable of delivering impressive visuals and responsive control.

Specifications:

1. Brand Name: HGLRC
2. Model: Wind5 Lite Frame Kit
3. Material:3K Carbon Fiber
4. Type:5 frame
5. Wheelbase:208mm
6. size:148*148mm
7. Top plate thickness:2mm
8. Bottom plate thickness:2mm
9. Middle plate thickness2.5mm
10. Arm Thickness:5mm
11. Top and middle plate spacing:32mm
12. Installation holes:2020/30.530.5mm
13. Support camera:19mm
14. Weight:80g
15. Motor mounting holes:16

Features:

1. Flight control installation damping system
2. 4mm protective bar
3. SMA antenna Mount
4. Camera Mount
5. Anti-turtle Shark Fin

Package Includes:

1 x 2mm top plate
1 x 2mm bottom plate
1 x 2.5mm middle plate
4 x 5mm arm
2 x 4mm protective bar
4 x M3*32mm black aluminum column
2 x M3*30mm black aluminum column
4 x round head screw M2*35
4 x round head screw M3*16
12 x round head screw M3*12
1 x Sink head screw M3*10
2 x round head screw M3*10
8 x round head screw M3*8
2 x round head screw M2*4
4 x M2 Self-tightening nut
4 x M3*6.6 shock absorber ball
1 x Battery cable tie 15x250mm
1 x Battery cable tie 20x250mm
1 x Battery Anti-slip tape
2 x strap
1 x Anti-turtle Shark Fin
1 x TPU hammer antenna mount
1 x TPU Camera Nebula Pro Mount
