The KEMET HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si dust cores and are useful in various
fields, such as DC/DC converters and differential noise countermeasures.
Applications:
- Switching power supply outlet
- DC-DC converter
- Phase compensation
- Boost converter
- Normal mode noise countermeasure
Features:
- Fe-Si dust core material
- Available for noise countermeasure as well as general use
- Good balance of core loss and DC superposition characteristics
- Wide variety of sizes and specifications
- Operating temperature range from 40C to +125C
Specifications:
- Model: HHBC12-1R0A0028V
- Rated Current: 5A
- Inductance (H): 28 , 26.5
- DC Resistance/ Line (m) Maximum: 21.1
- Temperature Rise1 (K) Maximum: 25
- Wire Diameter (mm): 1.0
- Weight: 13g
Packages Includes:
1 x HHBC12-1R0A0028V Differential Mode Coils
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

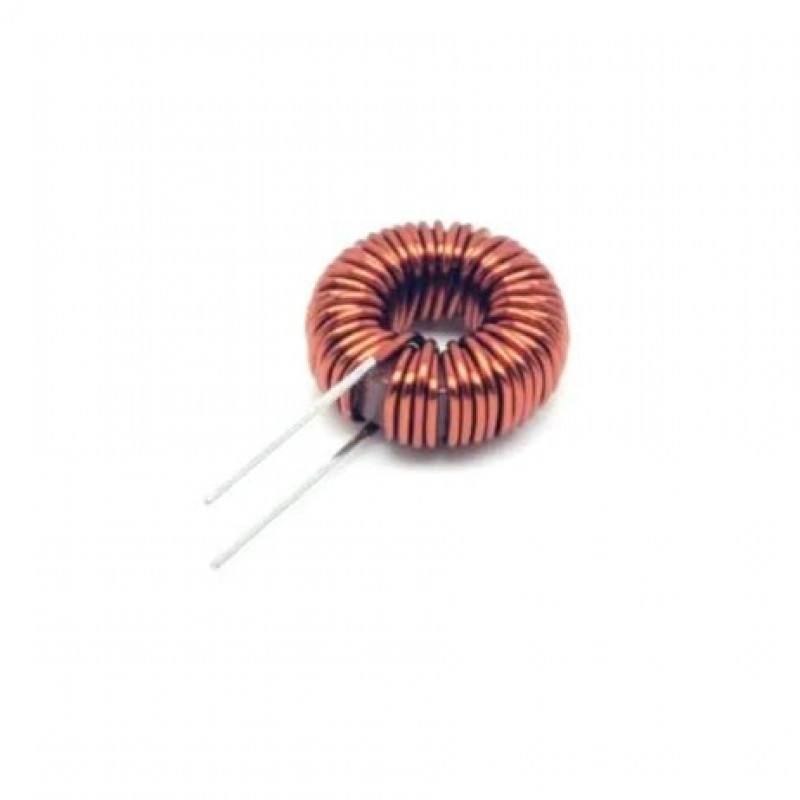

HHBC12-1R0A0028V Differential Mode Coils
- Product Code: EC-24069
- Availability: Out Of Stock
-
Rs.796.00
- (Excluding 18% GST)
