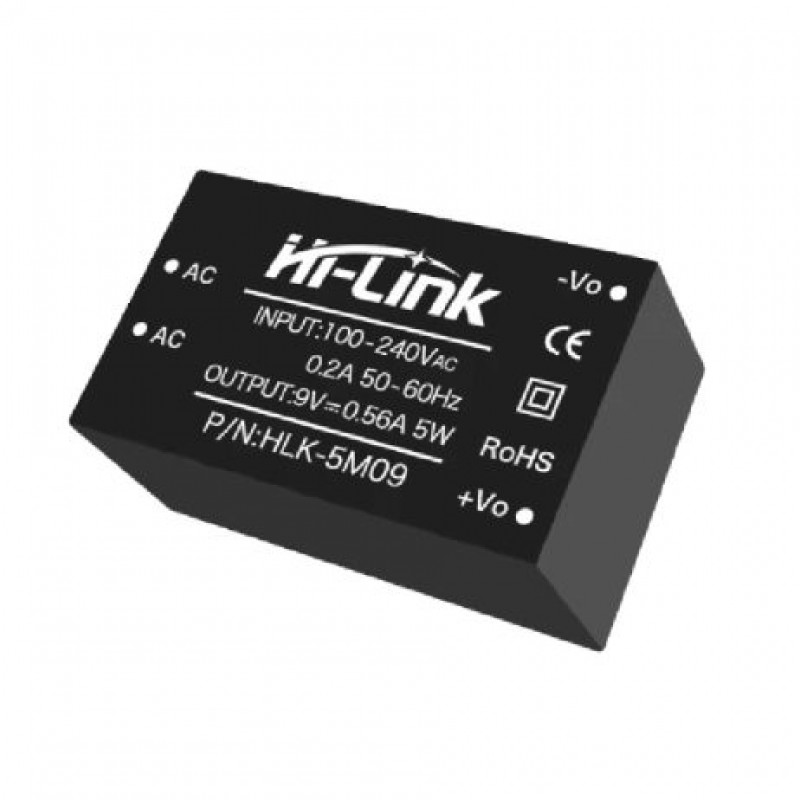

The HLK-5M09 is a compact and intelligent AC to DC Step Down Mini Power Supply Module. With a 9V output and a power capacity of 5W, it efficiently converts household AC power. This module is designed for various intelligent household applications, offering a reliable and space-saving solution for powering electronics with a lower voltage requirement.

Features:

1. Global universal input voltage(90-264VAC)
2. Input and output isolation voltage 3000VAC
3. Low power consumption, green environment protection, no-load loss0.1W
4. High efficiency, high power density
5. Long life design, continuous working time is greater then 100,000hours
6. High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
7. Meet UL/CE/EMC and safety testing requirements
8. Can be used in medical, industrial control, electric power, instrumentation, communication, railway, and other fields

Specifications:

Environment Condition

1. Model: HLK-5M09
2. Working Temperature: -25+60
3. Storage temperature: -40+80
4. Relative humidity: 595 %
5. Thermal methods: Natural cooling
6. Atmospheric pressure: 80106 Kpa
7. Altitude: 2000 m
8. Vibration coefficient: 10~500Hz,2G10min./1cycle, 60min.each along the X, Y, and Z axes. Meets secondary road transportation requirements

Input Features( test at room temperature)

1. Rated input voltage: 100-240Vac
2. Input voltage range: 85-264VAC
3. maximum input voltage is 270VAC
4. maximum input Current: 0.2A
5. Input inrush current: 10A
6. Input low start: 50mS
7. Long-term reliability MTBF100000H
8. External fuse recommended: 1A

Output Features

1. Full-load rated output voltage: 9.00.2%
2. Load regulation: 0.5%
3. Switching on/off overshoot amplitude: 5mS(115VAC
4. Output over-current protection Output maximum load: 110-150% A
5. Ripple/Noise: 100mVp-p(Typ:50)

Package Includes:

1 x AC to DC 9v5w Step Down Mini Intelligent Household Switch Power Supply Module Converter HLK-5M09
