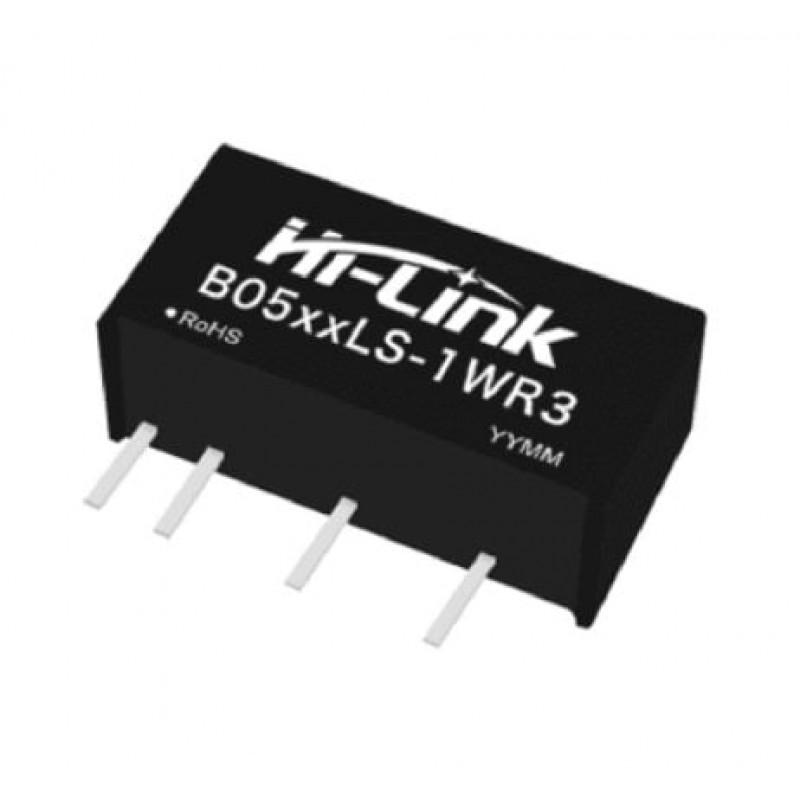

The IB0505LS-1WR3 is a 5V to 5V DC-DC Power Module with a stabilized single output. With a power capacity of 1W and a current handling capability of 200mA, it efficiently converts the input voltage to a stable 5V output. This compact and reliable module is designed for applications requiring precise and regulated power supply in a 5V environment.
Features:
- Fixed voltage input, isolated and regulated output, power 1W
- isolation voltage1500VDC
- Low static current and high conversion efficiency
- Low ripple, low noise
- output short-circuit protection Sustainable short circuit protection, automatic recovery
- Small SIP package plastic shell
- High reliability and long life design, continuous working time MTBF3.5 million hours (3500000Hrs)
Specifications:
- Model: IB0505LS-1WR3
- Input Voltage: 5V
- Output Voltage: 5V
- Power Capacity: 1W
- Current Handling: 200mA
- isolation voltage: 1500VDC
- Length: 19mm
- Width: 9mm
- Height: 5mm
Package Includes:
1 x IB0505LS-1WR3 Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 184.08 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

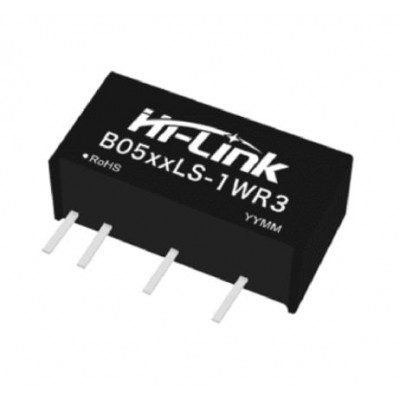

Hi-Link IB0505LS-1WR3 Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module
- Product Code: EC-18594
- Availability: Out Of Stock
-
Rs.140.00
- (Excluding 18% GST)
