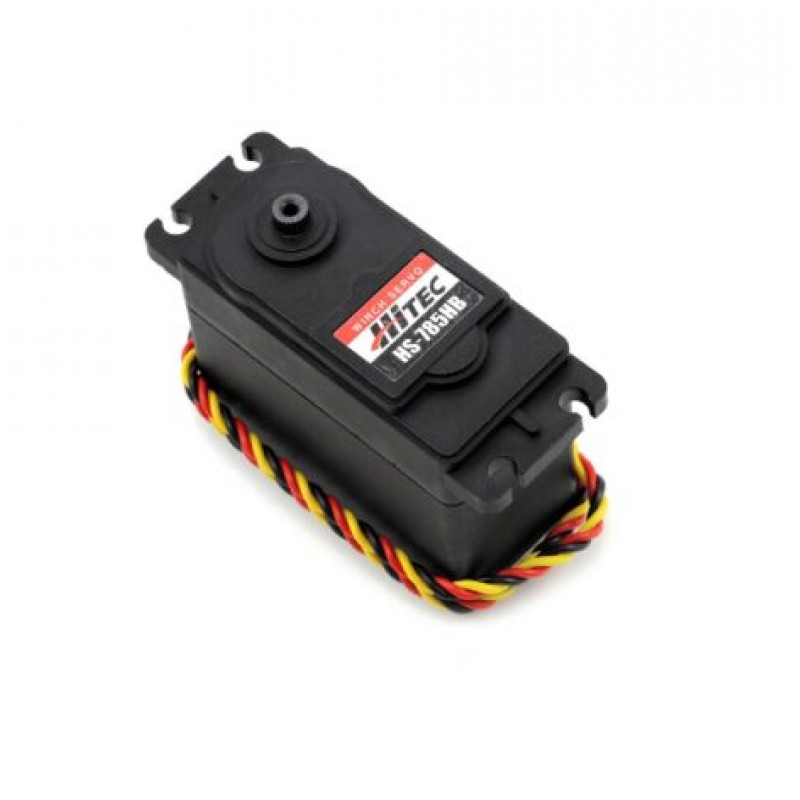

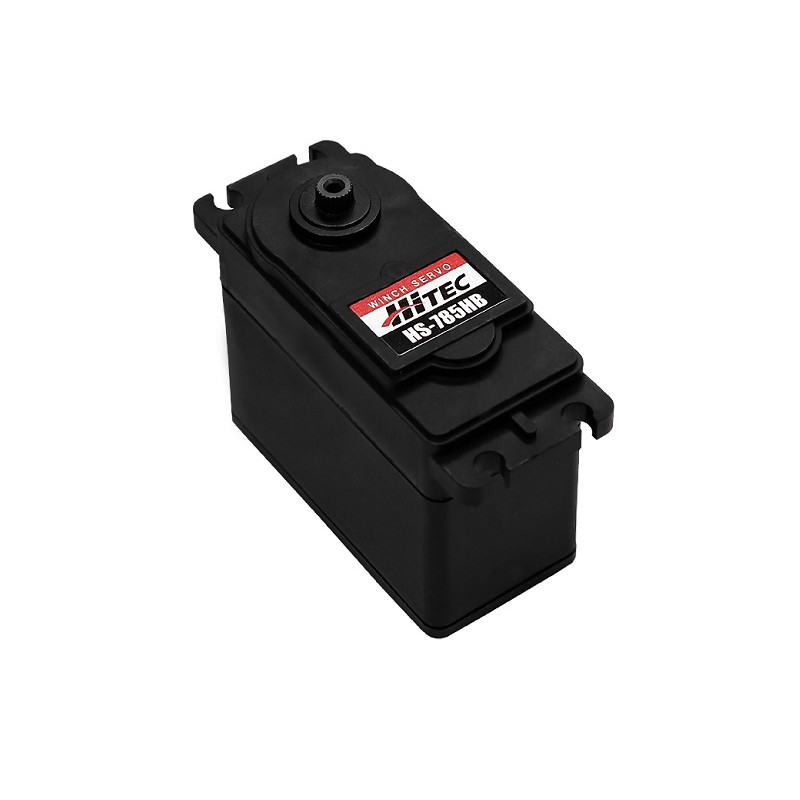

The HS-785HBsail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.

Features:

1. Large Drum Wheel with 3.5 Revolutions of Travel
2. Strong Karbonite Gear Train
3. Dual Ball Bearing-Supported Output Shaft
4. Water and Dust-Resistant Case

Specifications:

1. Model: HS-785HB
2. Motor Type: 3 Pole Metal Brush Ferrite
3. Bearing Type: DualBall Bearing
4. Gear Material: Karbonite
5. Circuit Type: HT7003 Analog MosFet
6. Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
7. Maximum Torque Range kg. / cm: 11.0~13.2
8. Speed (Second @ 60): 1.68~1.38
9. Current Draw at Idle: 8mA
10. No Load Operating Current Draw: 250mA
11. Stall Current Draw: 1,800 mA
12. Dead Band Width: 5s
13. Case Material: Plastic

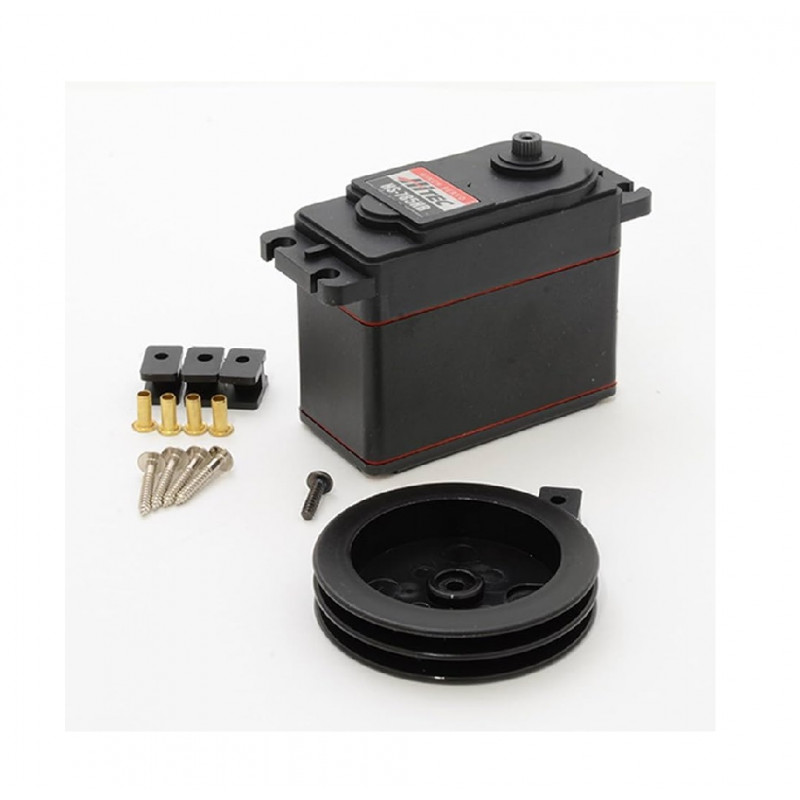

Package Includes:

1 x Karbonite Gear Set

1 x Plastic Case Set

1 x Applicable Horns
