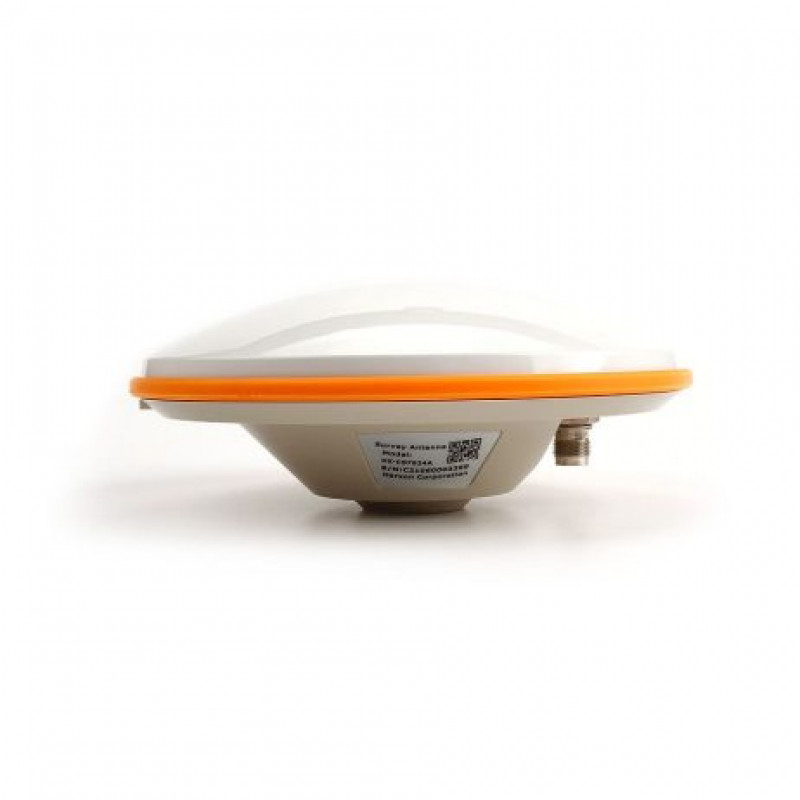

Holybro High Precision RTK GNSS Antennas HX-CSX627A features a multi-point feeding design to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions. The ability to receive low elevation signals with high gain and wide beam width makes HX-CSX627A an excellent choice for tracking visible satellites under challenging conditions, providing positioning solutions with precision and reliable data. It can be widely used in GNSS surveying applications where high precision is needed, such as the obstructed environment of tree lines or construction.

Note: For more details please refer to the attachment.

Features:

1. Supports 4 frequency bands
2. Support GPS, Glonass, Galileo, Beidou, QZSS, and SBAS signal reception
3. A stable phase center guarantees the accuracy of positioning within millimeter-level
4. Strong anti-interference ability to endure the harshest operating environments
5. IP67 ruggedized protection
6. Connector: TNC female
7. Mounting: BSW5/8-11 screw,Depth:12-14mm
8. Weight: 440g

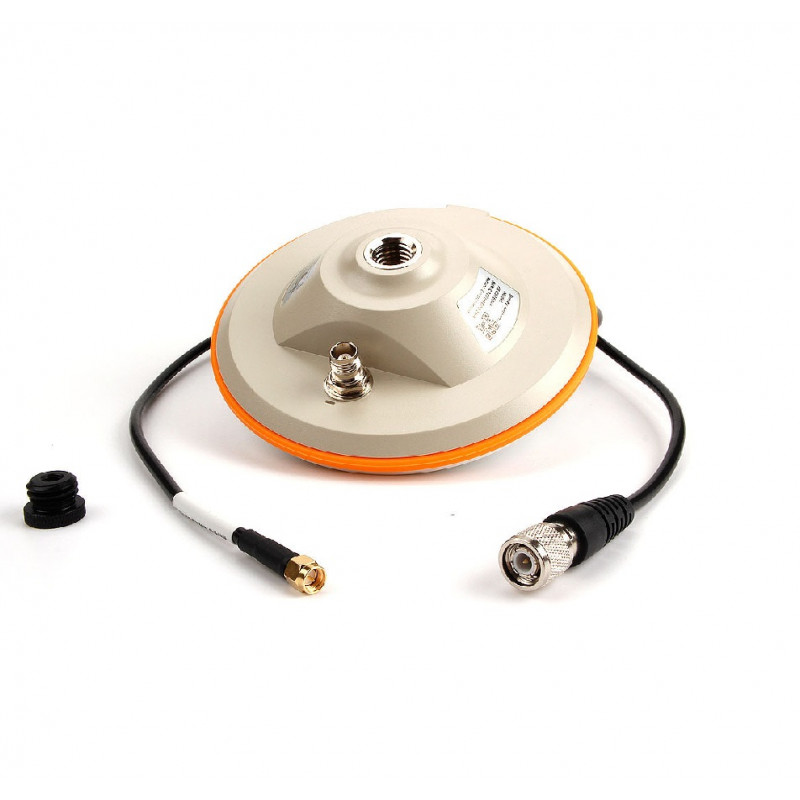

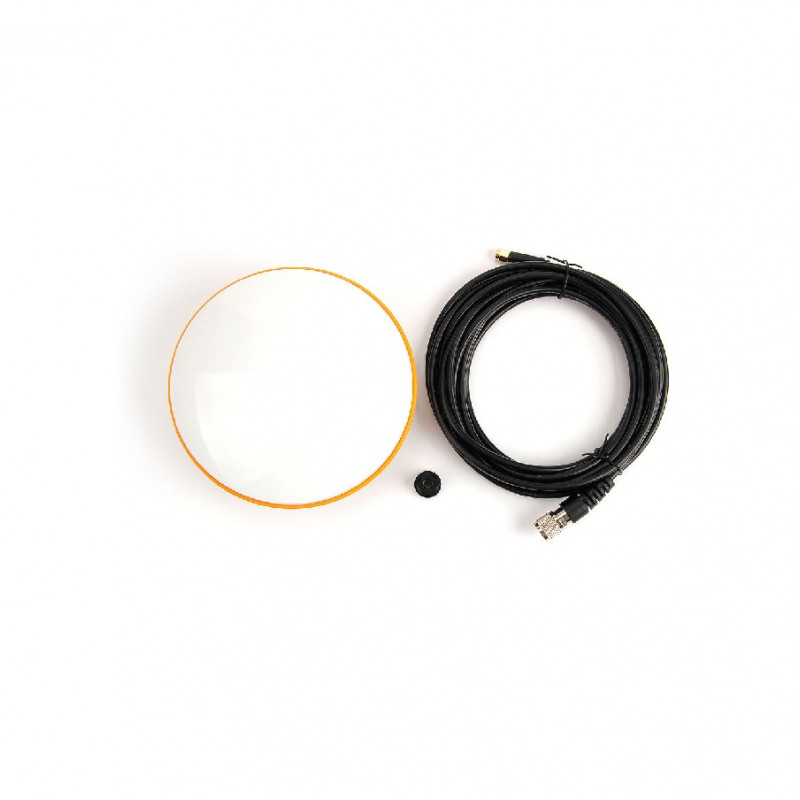

Package Includes:

1 x High Precision GNSS Antenna(CSX627A)
1 x Male-male SMA-TNC cable(length: 5m)
1 x 1/4 Female to 5/8 -11 Male Adapter
