The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.
The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Package Includes:
1x Holybro Kakute F4 V2.4 Stacks + Tekko32 F4 Metal 4in1 65A ESC
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JSTSH6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
1x JSTSH 6pin 100mm cable(for Caddx HD Systems)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

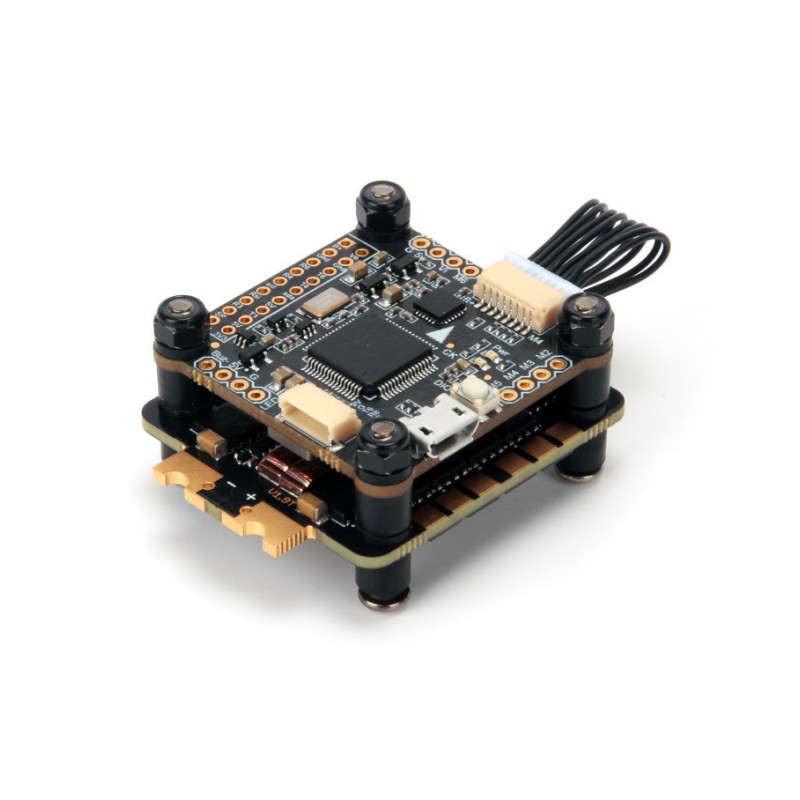

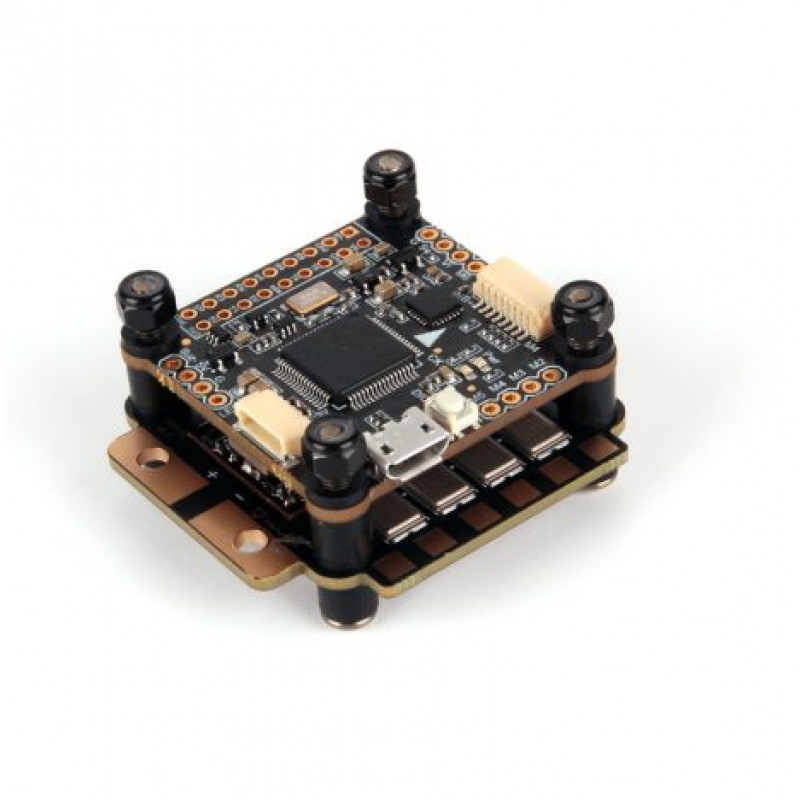

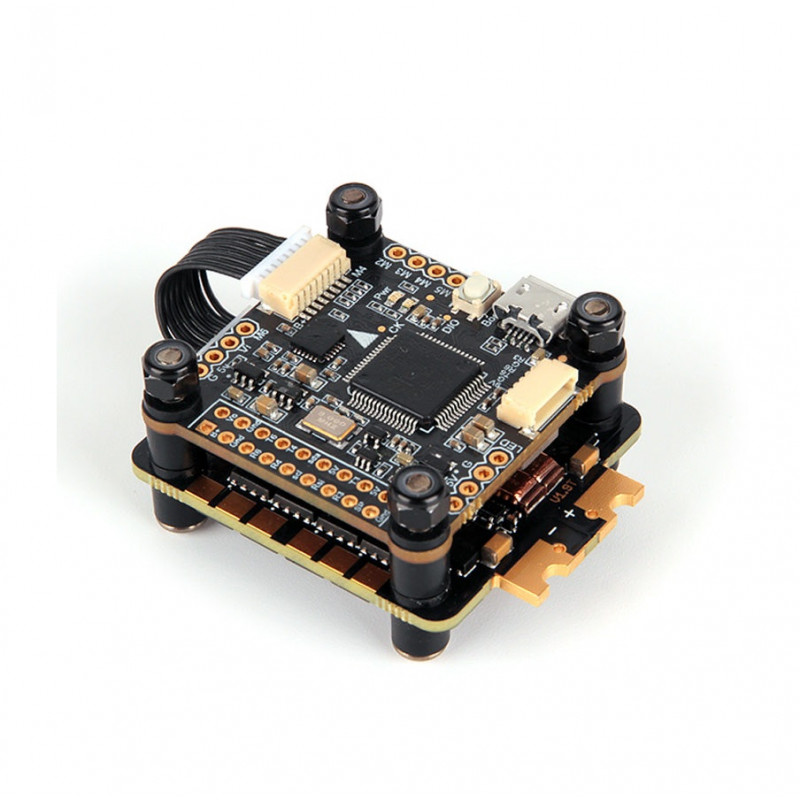

Holybro Kakute F4 V2.4 Stacks + Tekko32 F4 Metal 4in1 65A ESC
- Product Code: EC-28722
- Availability: Out Of Stock
-
Rs.13527.00
- (Excluding 18% GST)
