The PM06D Power Module features an input voltage range of 2S-14S and a continuous current rating of 70A, with a burst current rating of 120A for less than 60 seconds. It includes XT60 plugs with 14 AWG silicone wires rated for 30A continuous and 60A burst current. The module provides a maximum current sensing of 327A and outputs 5.2V and 3A max. It includes voltage and current monitoring with an I2C-compatible interface.

Current Rating:

The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference.

PX4 Parameter Setup:
If you are using the PM06D 14S version, you must set SENS_EN_INA228 to enable.

Note
PM06D is supported by PX4. For Ardupilot, it is supported in version 4.4 and later.
This PM uses I2C digital signal data output and is not compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.

PM06D provides regulated power supply for your Pixhawk 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board.

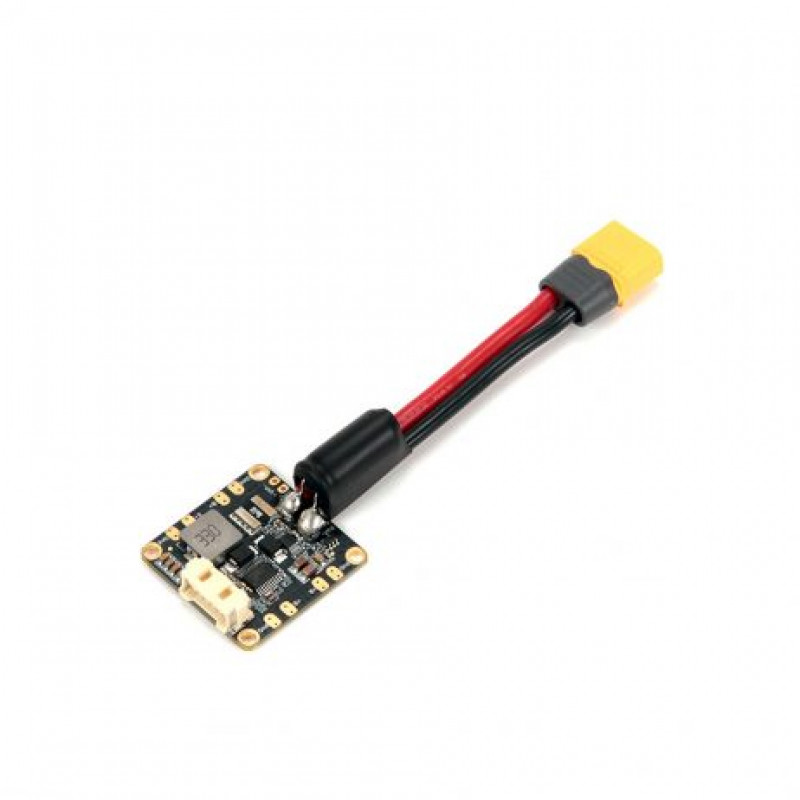

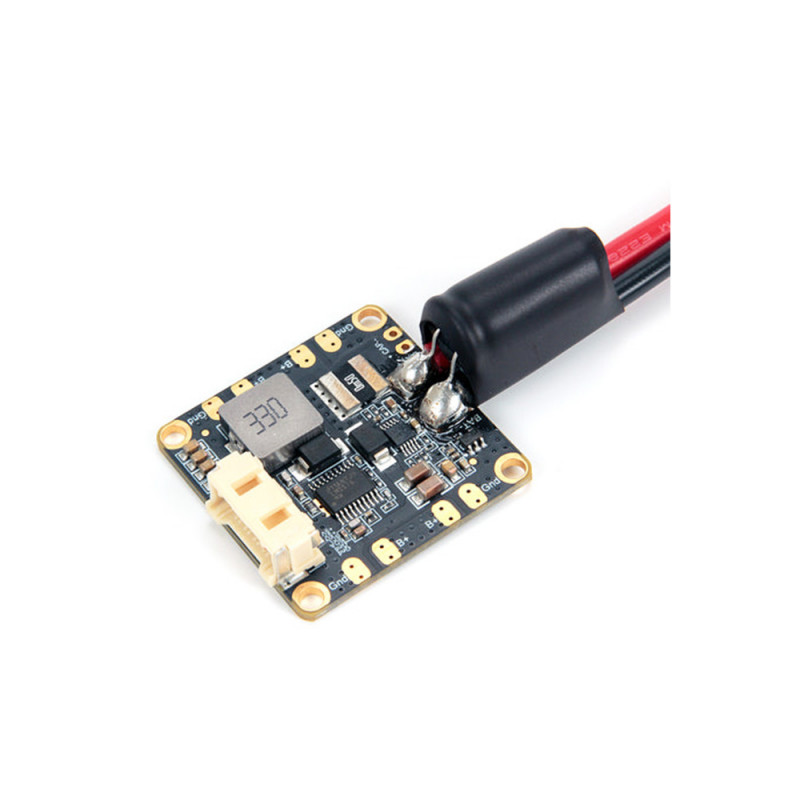

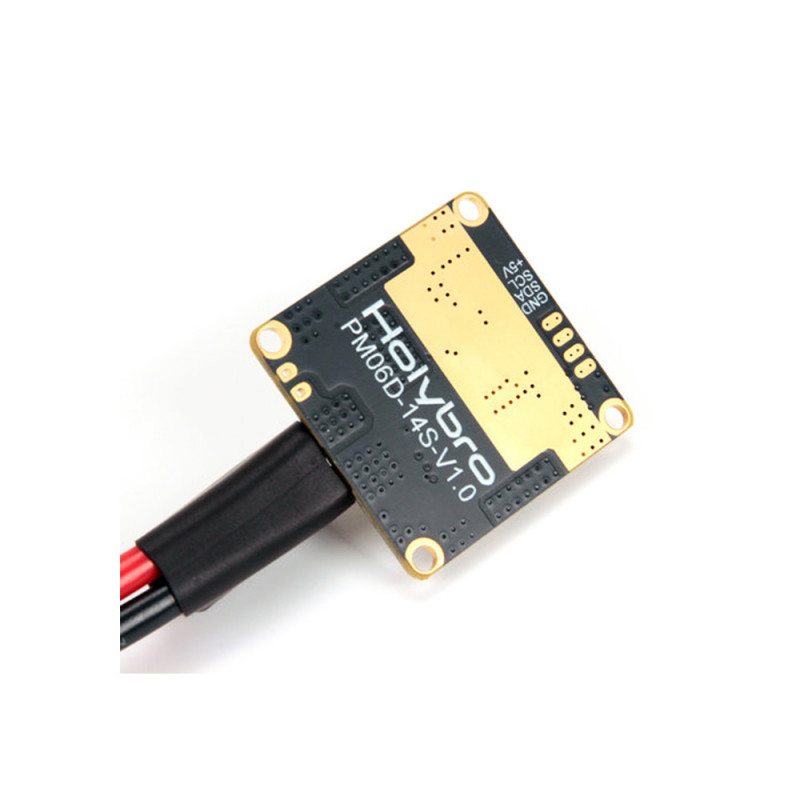

The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.

Specification

• Input voltage: 2S- 14S
• PCB Cont.Current Rating: 70A
• PCB BurstCurrent Rating: 120A (<60 Sec)
• Max current sensing:327A
• Voltage and current monitor with I2C compatible interface
• Connector Outputs: 5.2V and 3A max
• Weight: 24.5g

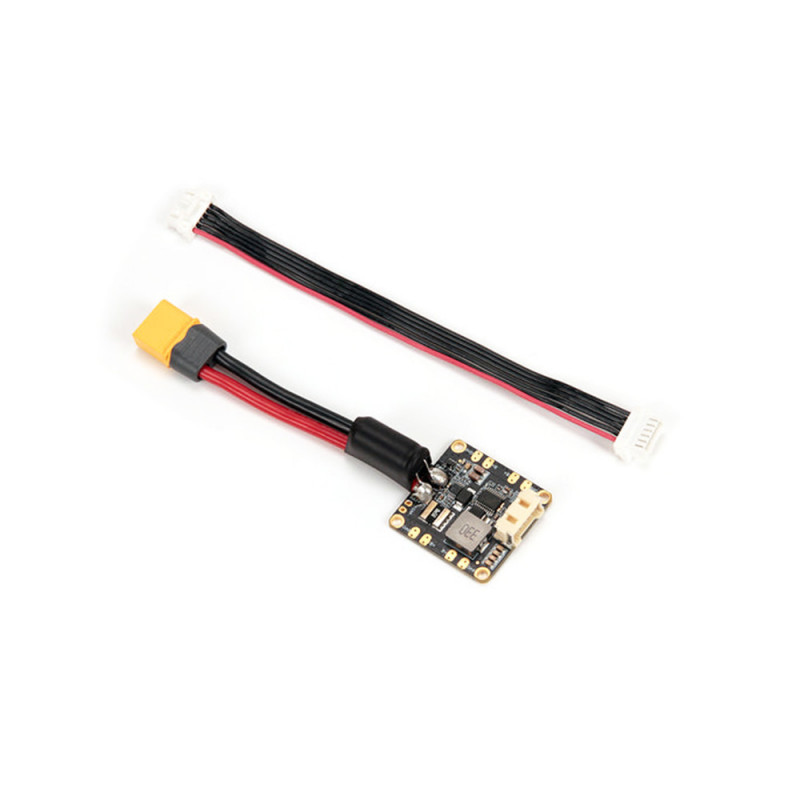

Package Includes

1x PM06D Power Module
1x 6pin 2.00mm pitch cable
