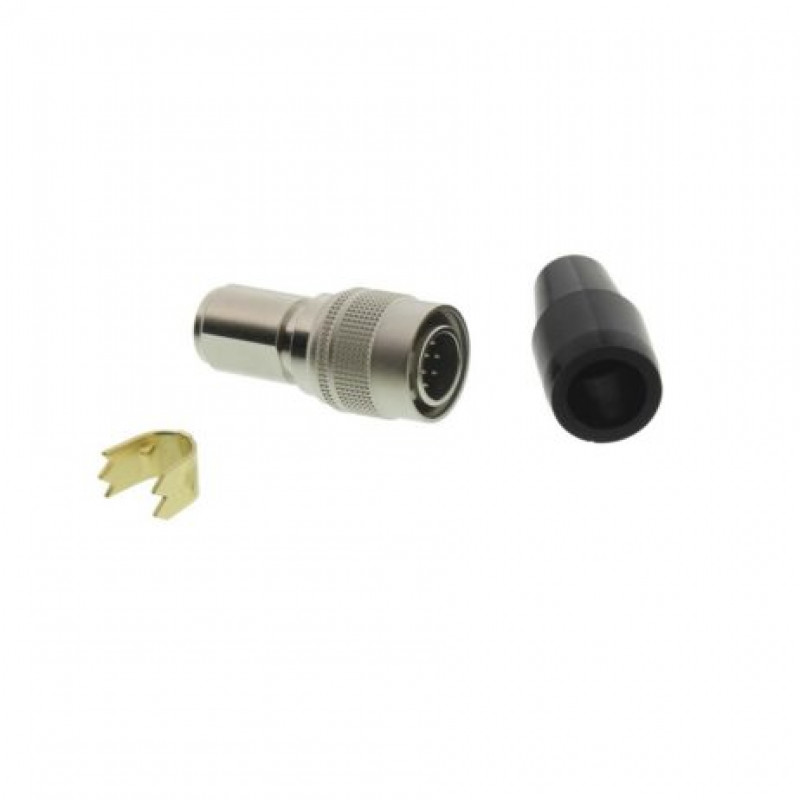

The HR10A-10P-10P(73) is a 10-position male high-performance miniature Circular Connector with polyamide resin and PBT resin insulator, silver-plated copper alloy contacts. The HR10 series plug has a straight connector orientation, soldering wire termination method, and push-pull locking style. It is recommended for use with 26AWG wire. Although small in size, fully featured a well-integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.
Features:
- Easy to use
- Easy to install
- Good quality Product
Specifications:
- Simple, yet highly reliable design for compact, high-density applications
- Extremely easy mating/unmating operations
- 7mm Cable outer diameter
- 2A Rated current
- 100VAC, 140VDC Rated voltage
- 10mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 300VAC for one minute Withstanding voltage
- 1000 Mating/unmating cycles
Package Includes:
1 x HR10A-10P-10P(73)-CIRCULAR CONNECTOR, PLUG, 10 W
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HR10A-10P-10P(73)-Circular Connector, Plug, 10W
- Product Code: EC-21418
- Availability: Out Of Stock
-
Rs.1344.00
- (Excluding 18% GST)
