The HR10A series from Hirose(HRS) are low-cost push-pull coupling type micro connectors. These are developed in response to customer needs for miniaturization, high density and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. The connector pin is located to avoid any damage which may be caused when blind mating
2. Space saving push-pull mechanism facilitates multi-installation of connectors
3. Easy wiring and mounting
4. Satin finished nickel plated zinc alloy and brass shell
5. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Plug, jack, and receptacle: shell type
2. The number of contacts varies: 4 to 20
3. Current rating: 2A
4. Operating temperature range: -25C to 85C
5. Insulation type Material: Blue or black polyamide/PBT insulation

Package Includes:

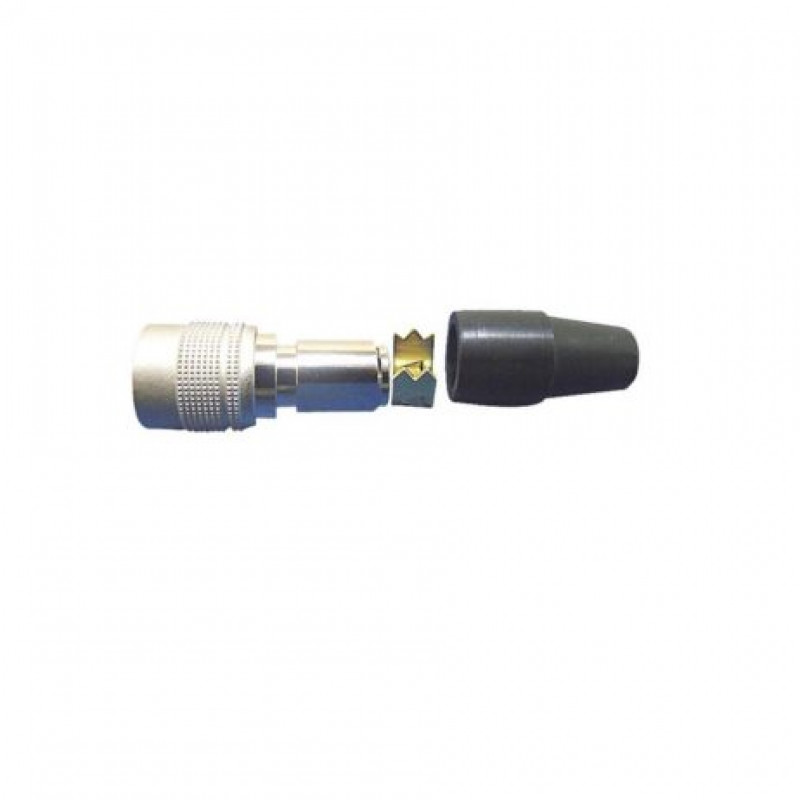

1 x HR10A-10P-12S(73)-PLUG, SOCKET CNTS, PUSH-PULL,
