The HR10A series from Hirose(HRS) are low-cost push-pull coupling-type micro connectors. These are developed in response to customer needs for miniaturization, high density, and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push-pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance the appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. Plug, jack, and receptacle shell type
2. The number of contacts varies from 4 to 20
3. Current rating of 2A
4. Operating temperature range -25C to 85C
5. The connector pin is located to avoid any damage which may be caused when blind mating
6. Space saving push-pull mechanism facilitates multi-installation of connectors
7. Easy wiring and mounting
8. Satin finished nickel plated zinc alloy and brass shell
9. Blue or black polyamide/PBT insulation
10. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Male Terminal Material: Silver or gold plated brass/bronze
2. Female Terminal Material: beryllium/phosphor bronze
3. Number of contacts: varies from 4 to 20
4. Operating temperature range: -25C to 85C
5. Current rating: 2A

Package Includes:

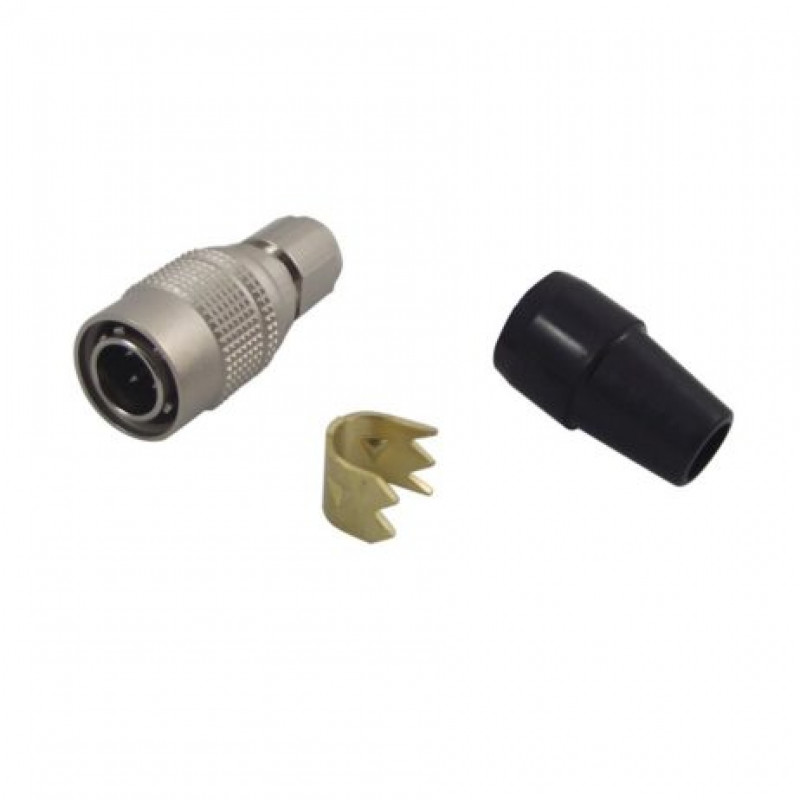

1 x HR10A-7P-6S(73)-PLUG, SOCKET CNTS, PUSH-PULL,
