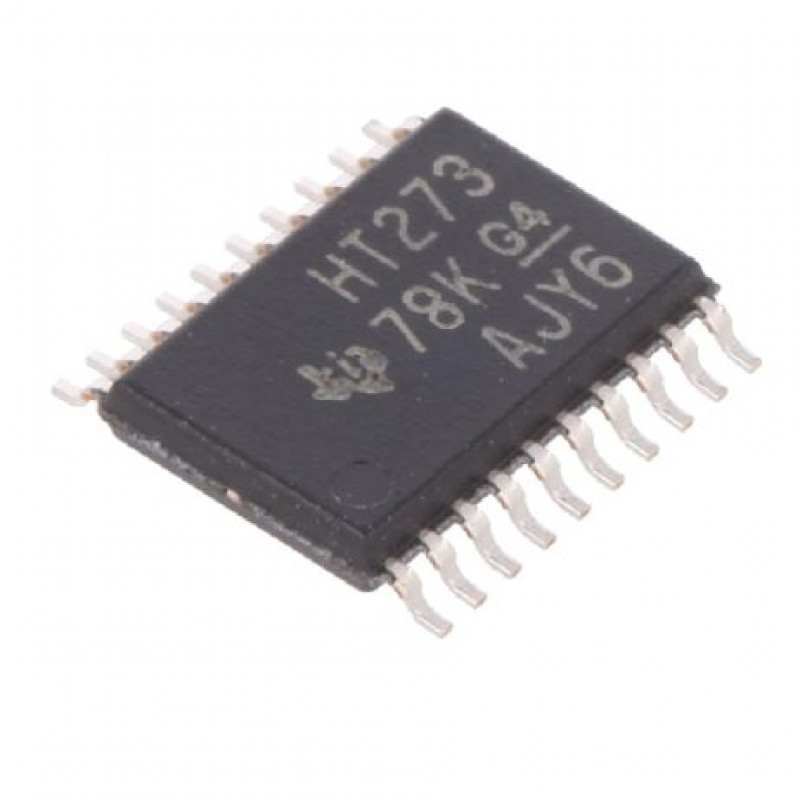

This is HT-273, 78K SMD Octal D-Type Flip-Flops With Clear Input IC. These devices are positive-edge-triggered D-type flip-flops with a direct clear (CLR) input.

Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect at the output.

Applications:

1. Buffers and Storage Registers
2. Shift Registers
3. Pattern Generators
4. Servers
5. PCs and Notebooks
6. Network Switches
7. Memory Systems
8. Databases

Note: Images are for reference only, the actual product may vary in terms of markings. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Operating Range 2-V to 5.5-V Vcc
2. Contain Eight Flip-Flops With Single-Rail Outputs Direct Clear Input
3. Individual Data Input to Each Flip-Flop
4. Latch-Up Performance Exceeds 250 mA Per JESD 17
5. ESD Protection Exceeds JESD 22:
   • 2000-V Human-Body Model (A114-A)
   • 1000-V Charged-Device Model (C101)

Package Includes:

1 x HT-273, 78K SMD Octal D-Type Flip-Flops With Clear Input IC
