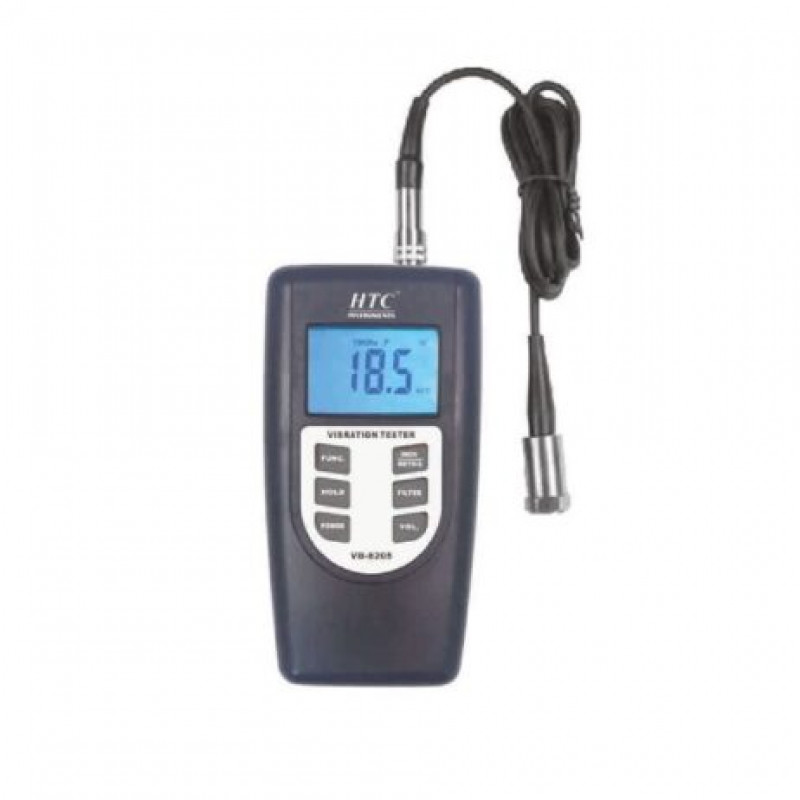

The HTC Vibration Meter VB-8205 offers precise vibration measurements with its 18mm LCD display. Capable of monitoring RPM from 60 to 99,990r/min, it provides versatile usage across multiple industries. Its compact design and user-friendly interface make it ideal for on-site assessments and maintenance tasks. This meter ensures accurate readings, enabling effective management of machinery and equipment vibration levels for optimal performance and safety.

Features:

1. Measure Accelerator / Velocity / Displacement with RPM & Frequency
2. Metric / Imperial Measurement
3. AC output socket for headphones and recording
4. Optional Headphones for use as electronic stethoscope
5. Optional RS-232 Communication (Advanced Software Program for all windows)

Specifications:

1. Model: HTC-J1
2. 4 Digits, 18mm LCD Display
3. Auto Power OFF
4. Max. Hold
5. Frequency: 1~20KHz
6. Measure Accelerator / Velocity / Displacement with RPM & Frequency
7. Metric / Imperial Measurement
8. Low Battery Indicator
9. Velocity: 10Hz~1KHz
10. Displacement: 10Hz~1KHz
11. POWER:AAA 1.5V X 4
12. AC output socket for headphones and recording
13. Optional Headphones for use as electronic stethoscope
14. Optional RS-232 Communication: (Advanced Software Program for all windows)
15. Optional Accessory : HTC RS-232 Cable with Software, RS-232 USB Cable
16. Revolution/min RPM: 60~99.990r/min (rdg. Should be multiplied by 10 if the displays show 10)
17. Dimensions : 124 x 62 x 30mm

Package Includes:

1 x Magnet

1 x Accelerometer

1 x Stinger probe (Cone)

1 x Stinger Probe (Ball)

1 x Hard Carrying Case

1 x Manual
