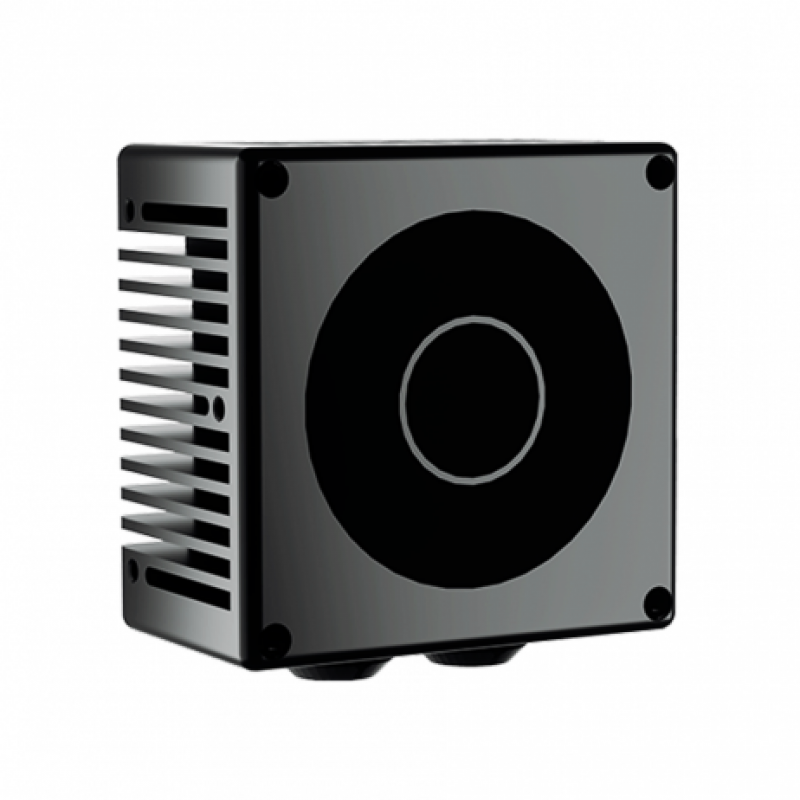

The HPS-3D640 is a high-resolution Time-of-Flight (ToF) sensor designed for precise distance measurement and 3D mapping applications. Featuring a robust solid-state design with IP67 protection, this sensor excels in demanding environments. Its advanced HDR modes and built-in data processing ensure accurate and reliable measurements.

Features:

1. High-Resolution Imaging: 640 x 480 resolution for detailed depth mapping.
2. Wide Field of View: 68 horizontal and 55 vertical FOV for comprehensive area coverage.
3. Advanced HDR Modes: Supports Simple-HDR, Auto-HDR, and Super-HDR for enhanced measurement accuracy.
4. Versatile Output: Provides point cloud maps, depth maps, and obstacle coordinate extraction.
5. Durable Design: Solid-state construction with IP67 protection for use in harsh environments.

Specifications:

1. Model: HPS-3D640

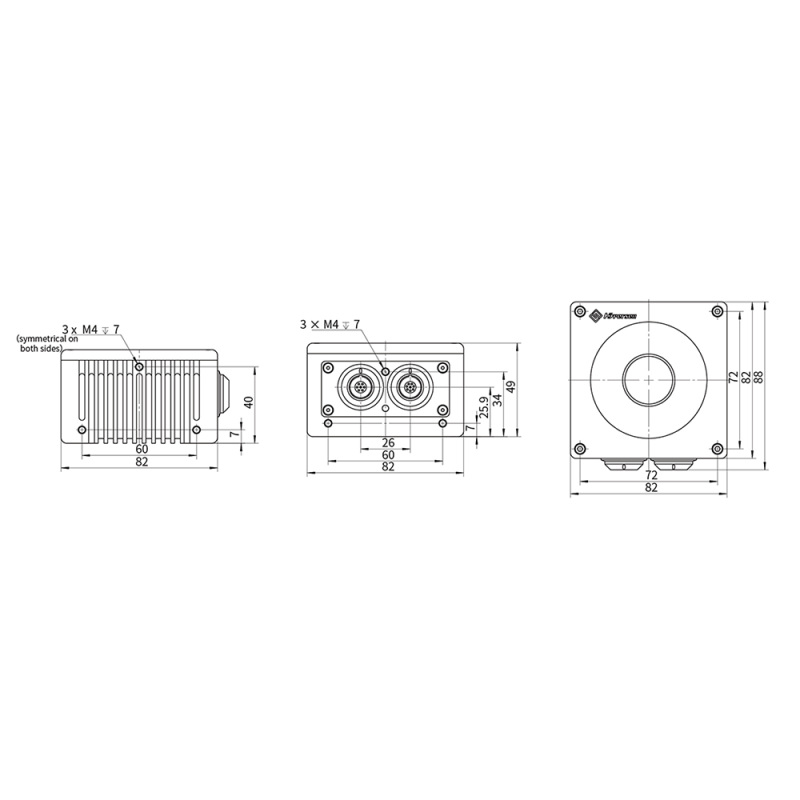

2. Size (WxDxH): 88x82x49mm
3. Weight: 440g
4. Power Supply: DC 12~24V
5. Power Consumption: 5~8W
6. Strong Light Performance: 80,000 Lux
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Wavelength: 850 nm
10. Emitting Angle: 68 (Horizontal) x 55 (Vertical)
11. Precision: 1cm
12. Measuring Range:
    0.25~2m @ 10% reflectivity
    0.25~5m @ 90% reflectivity
13. Operating Modes: Auto-HDR, Super-HDR, Simple-HDR
14. Output Data: Depth data, average distance, signal strength, number of weak signal pixels, number of saturated pixels, maximum distance, minimum distance
15. Frame Rate: 25Hz/adjustable
16. Power-On Initialization Time: 1500ms
17. Communication Interface: LAN
18. Optocoupler Isolation I/O: Standard: 1 input, 1 output

Applications:

1. Drone Navigation and Collision Avoidance
2. Industrial Automation and Robotics
3. Security and Surveillance Systems
4. 3D Scanning and Mapping
5. Smart Traffic Management

Package Include:

1 x 3D Solid- state HPS-3D640-L
