The HPS-166 Time-of-Flight (ToF) infrared ranging sensor is designed for high precision and reliability in distance measurement applications. Weighing only 6.8g, this ultra-lightweight sensor offers fast and accurate ranging with a high signal-to-noise ratio (SNR). It incorporates advanced algorithms for ambient light, temperature, and color compensation. The HPS-166 features an adaptive output data rate ranging from 6 to 54Hz, making it versatile for various applications.
Features:
- Ultra-Lightweight: Weighs only 6.8g, ideal for applications requiring minimal weight.
- High SNR: Ensures accurate and reliable distance measurements.
- Fast and Accurate: Provides quick and precise distance ranging.
- Advanced Compensation: Integrated ambient light, temperature, and color compensation algorithms.
- Adaptive Data Rate: Adjustable output data rate from 6 to 54Hz for versatile applications.
- Emitter: Infrared LED
- Emitting Angle: 1.8
- Maximum Measuring Distance: 10m
- Minimum Measuring Distance: 0.08m
- Waterproof: Lens cone waterproof
- Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
Applications:
- Drone Altitude Holding
- Drone Soft-landing
- Drone Collision Avoidance
- Security
- Height Difference Measurement
- Empty Bay Detection
Package Includes:
1 x ToF Ranging Sensor HPS-166
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

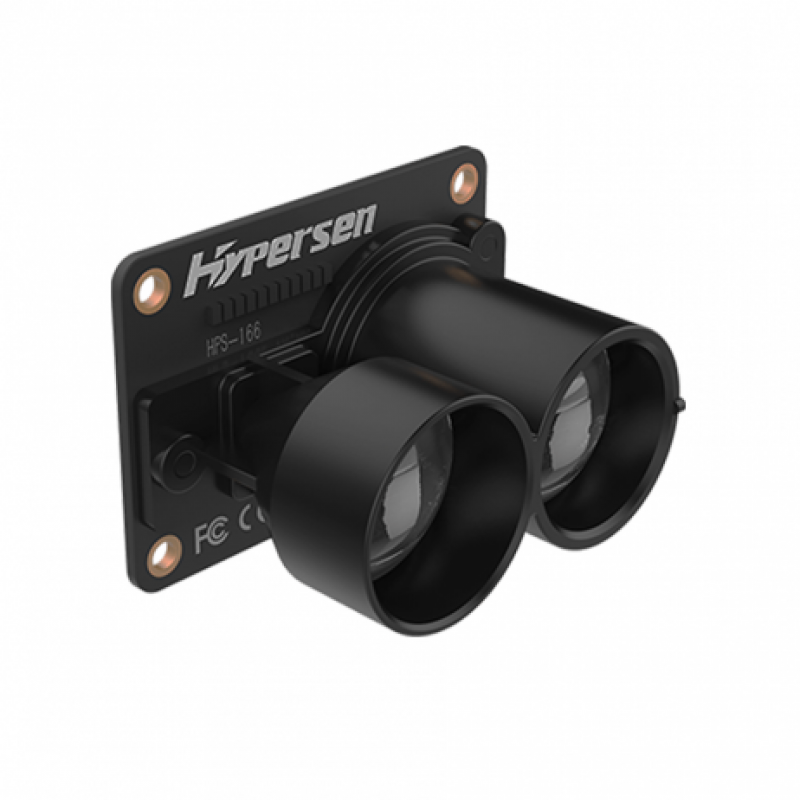

Hypersen-ToF Ranging Sensor HPS-166
- Product Code: EC-26918
- Availability: Out Of Stock
-
Rs.4094.00
- (Excluding 18% GST)
