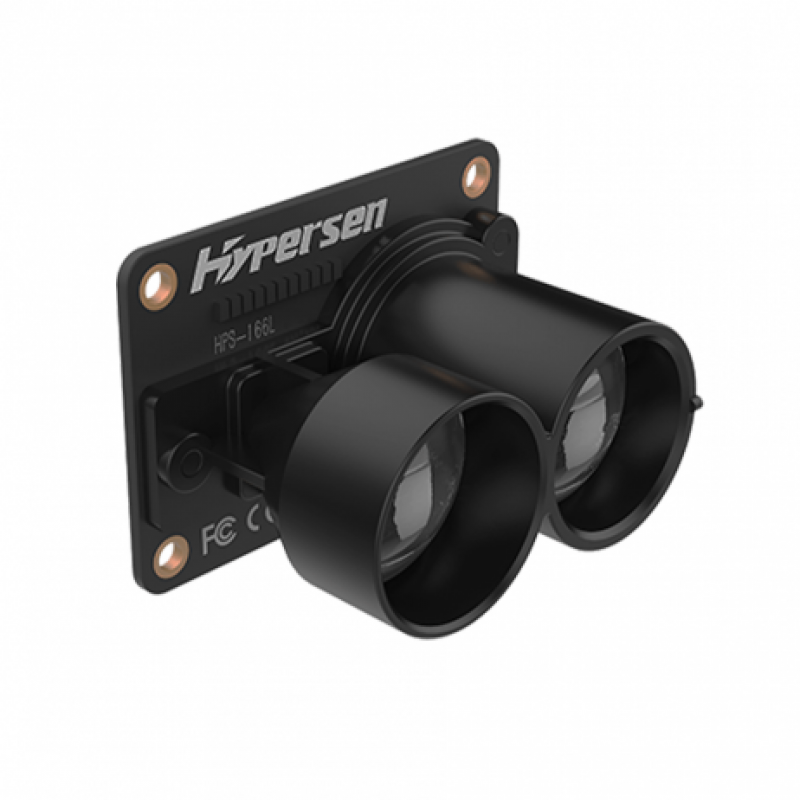

The HPS-166-L Time-of-Flight (ToF) infrared ranging sensor is engineered for precise and reliable distance measurements, perfect for a variety of applications. With an ultra-lightweight design of just 6.8g, this sensor delivers fast and accurate ranging capabilities supported by high signal-to-noise ratio (SNR). Featuring advanced compensation algorithms for ambient light, temperature, and color, it ensures consistent performance. The sensors adaptive output data rate, ranging from 6 to 54Hz, makes it versatile and adaptable for diverse usage scenarios.

Features:

1. Ultra-Lightweight: Only 6.8g, suitable for weight-sensitive applications.
2. High SNR: Ensures precision and reliability in distance measurements.
3. Fast and Accurate: Quick and precise ranging with advanced ToF technology.
4. Advanced Compensation: Integrated algorithms for ambient light, temperature, and color compensation.
5. Adaptive Data Rate: Output data rate adjustable between 6 and 54Hz for flexible application requirements.

Specifications:

1. Model: HPS-166-L

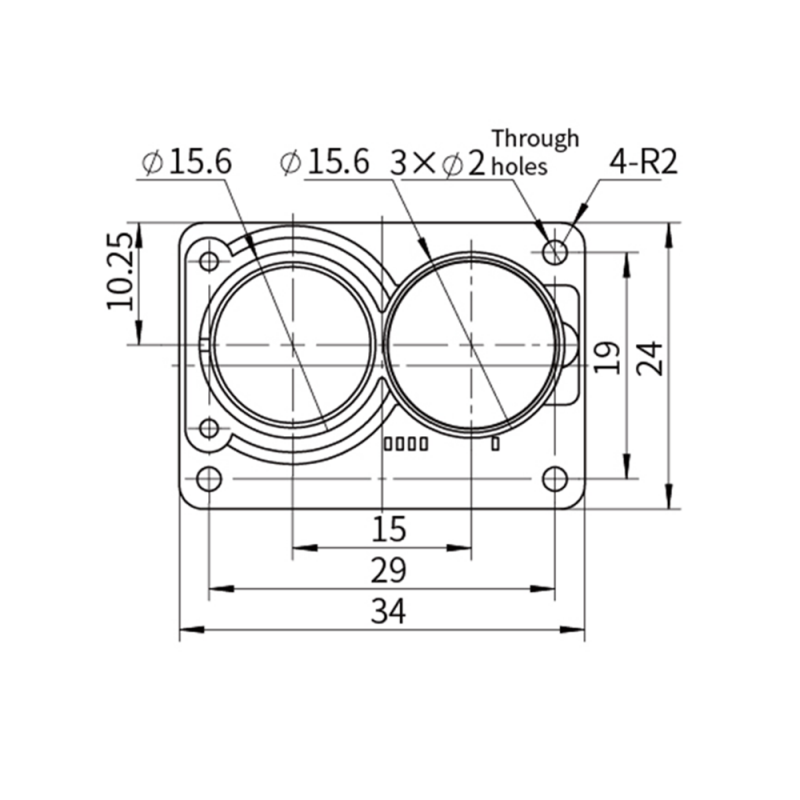

2. Size: 34x24x22 mm
3. Weight: 6.8g
4. Power Supply: DC 4~6V
5. Maximum Power Consumption: 1.3W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: VCSEL Laser
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 25m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: Lens cone waterproof
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: TTL UART

Applications:

1. Drone Altitude Holding
2. Drone Soft-landing
3. Drone Collision Avoidance
4. Security
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-166-L
