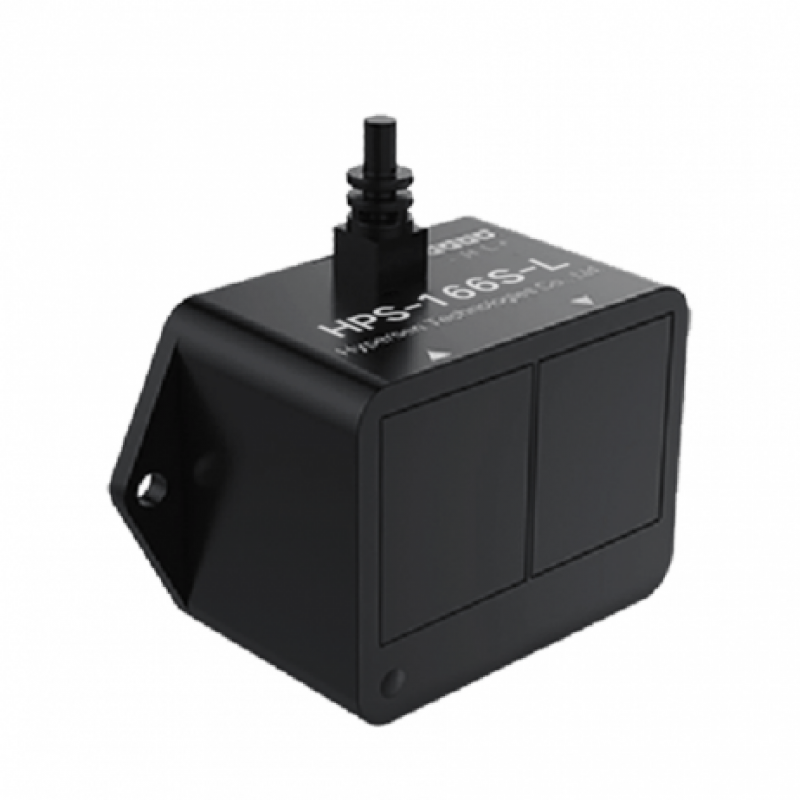

The HPS-166S-L Time-of-Flight (ToF) infrared ranging sensor offers superior precision and fast distance measurements with its high signal-to-noise ratio (SNR). Featuring advanced compensation algorithms for ambient light, temperature, and color, it ensures accurate readings in diverse environments. Encased in a robust, waterproof ABS and aviation aluminum shell, this sensor is built for durability. It provides a flexible adaptive output data rate of 6-54Hz and supports reliable data communication through the Rs485-Modbus interface, making it ideal for various industrial applications.

Features:

1. High SNR: Delivers precise and consistent distance measurements.
2. Fast and Accurate: Advanced ToF technology for quick and accurate ranging.
3. Advanced Compensation: Integrated algorithms adjust for ambient light, temperature, and color.
4. Robust Design: Durable, waterproof ABS and aviation aluminum casing.
5. Adaptive Data Rate: Offers an adjustable output data rate of 6-54Hz.

Specifications:

1. Model: HPS-166S-L

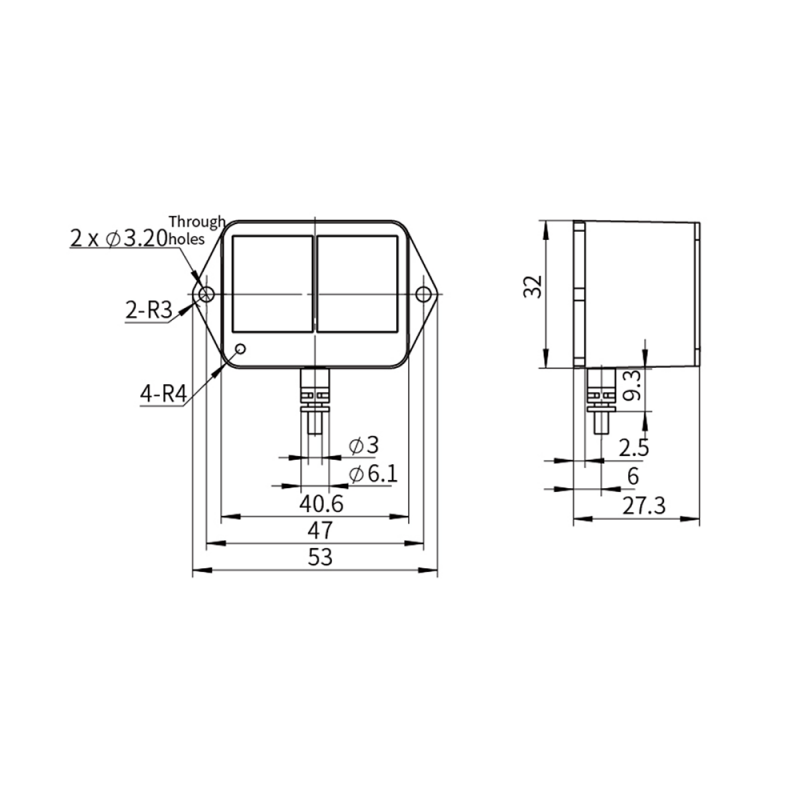

2. Size: 53x32x26.5 mm
3. Weight: 27g
4. Power Supply: DC 5~15V
5. Maximum Power Consumption: 1.4W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: VCSEL Laser
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 25m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: ABS + aviation aluminum waterproof case
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: Rs485-Modbus

Applications:

1. Application Fields
2. Drone Altitude Holding
3. Drone Soft-landing
4. Drone Collision Avoidance
5. Security
6. Height Difference Measurement
7. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-166S-L
