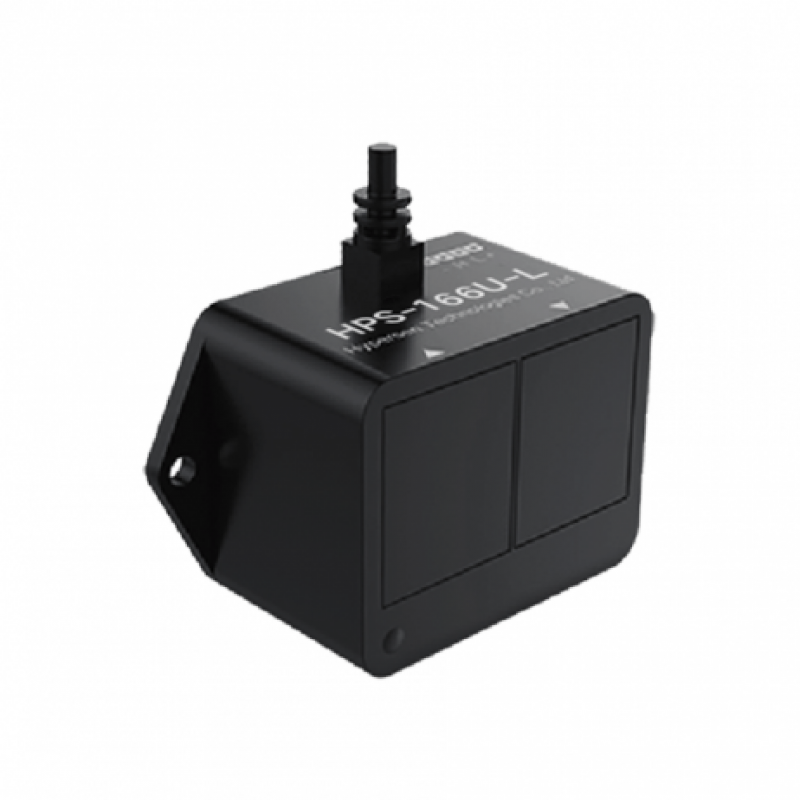

The HPS-166U-L Time-of-Flight (ToF) infrared ranging sensor is designed for high-performance distance measurements in various environments. It offers high SNR for precise readings, coupled with fast and accurate ranging capabilities. Integrated with advanced algorithms for ambient light, temperature, and color compensation, it ensures optimal performance. The sensor features a robust waterproof case made of ABS and aviation aluminum, making it durable and suitable for harsh conditions. With an adaptive output data rate of 6-54Hz, it caters to a wide range of applications.

Features:

1. High SNR: Delivers precise and reliable distance measurements.
2. Fast and Accurate: Utilizes advanced ToF technology for quick and accurate ranging.
3. Advanced Compensation: Features algorithms for ambient light, temperature, and color compensation.
4. Robust Design: Waterproof case made of ABS and aviation aluminum for durability.
5. Adaptive Data Rate: Output data rate adjustable between 6 and 54Hz for versatile applications.

Specifications:

1. Model: HPS-166U-L

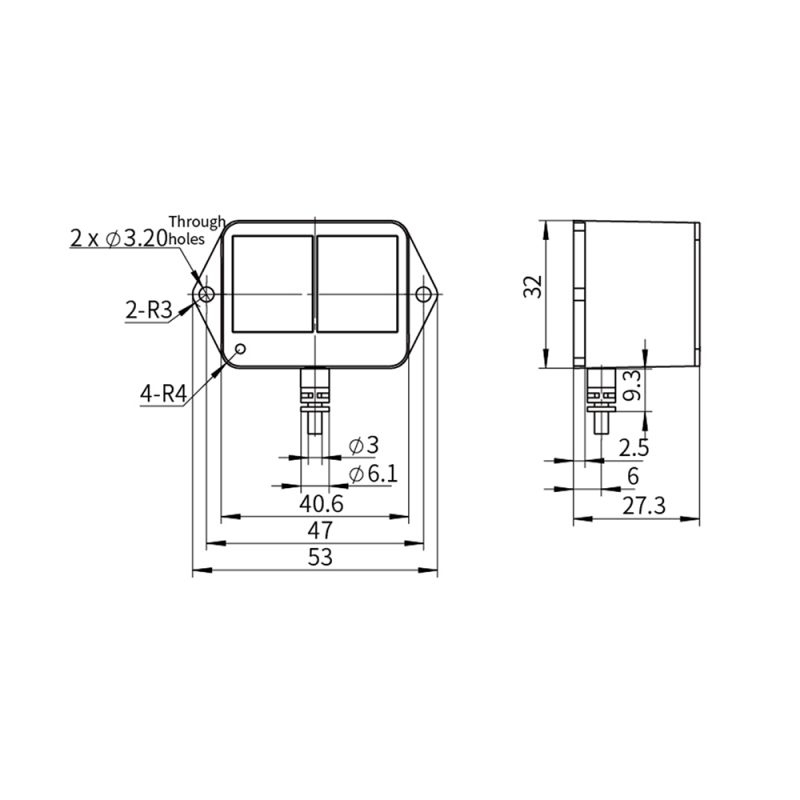

2. Size: 53x32x26.5 mm
3. Weight: 27g
4. Power Supply: DC 4~6V
5. Maximum Power Consumption: 1.3W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: VCSEL Laser
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 25m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: ABS + aviation aluminum waterproof case
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: TTL UART

Applications:

1. Drone Altitude Holding
2. Drone Soft-landing
3. Drone Collision Avoidance
4. Security
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-166U-L
