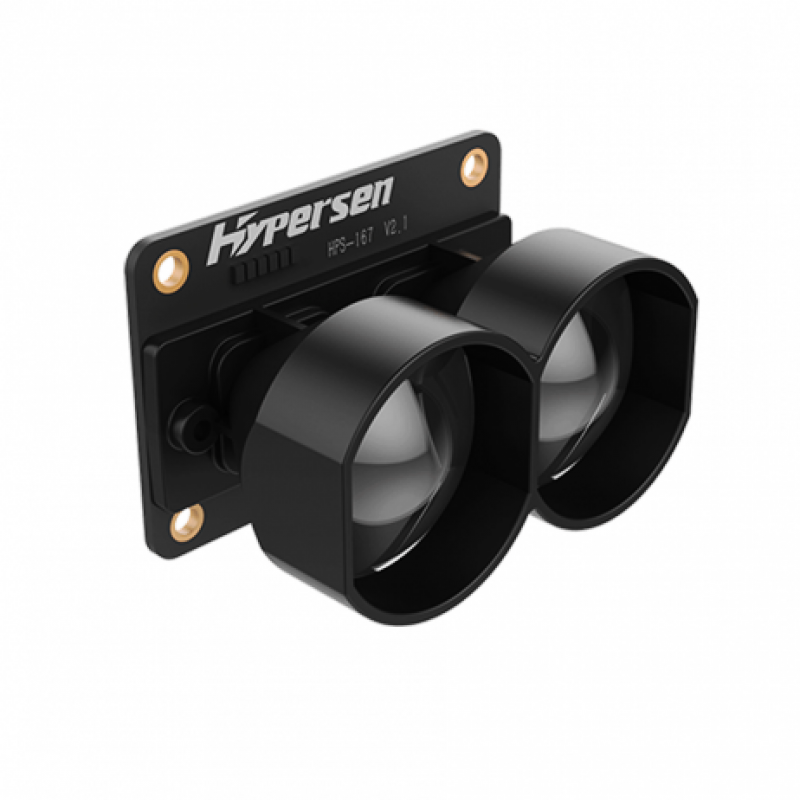

The HPS-167 is a lightweight, high-performance ToF infrared ranging sensor designed for precision and reliability. With its integrated ambient light, temperature, and color compensation algorithms, it offers fast and accurate distance measurement, making it suitable for various applications, especially in the drone and security fields.

Features:

1. Ultra Light Weight: Weighs only 6.8g, ideal for weight-sensitive applications.
2. High SNR: Ensures clear and reliable measurement signals.
3. Fast and Accurate: Provides quick and precise distance ranging.
4. Compensation Algorithms: Integrated ambient light, temperature, and color compensation for enhanced accuracy.
5. Adaptive Data Output Rate: Dynamically adjusts between 6 and 54Hz for optimal performance.

Applications:

1. Drone Altitude Holding
2. Drone Soft-landing
3. Security
4. Height Difference Measurement
5. Drone Collision Avoidance
6. Empty Bay Detection

Specifications:

1. Model: HPS-167

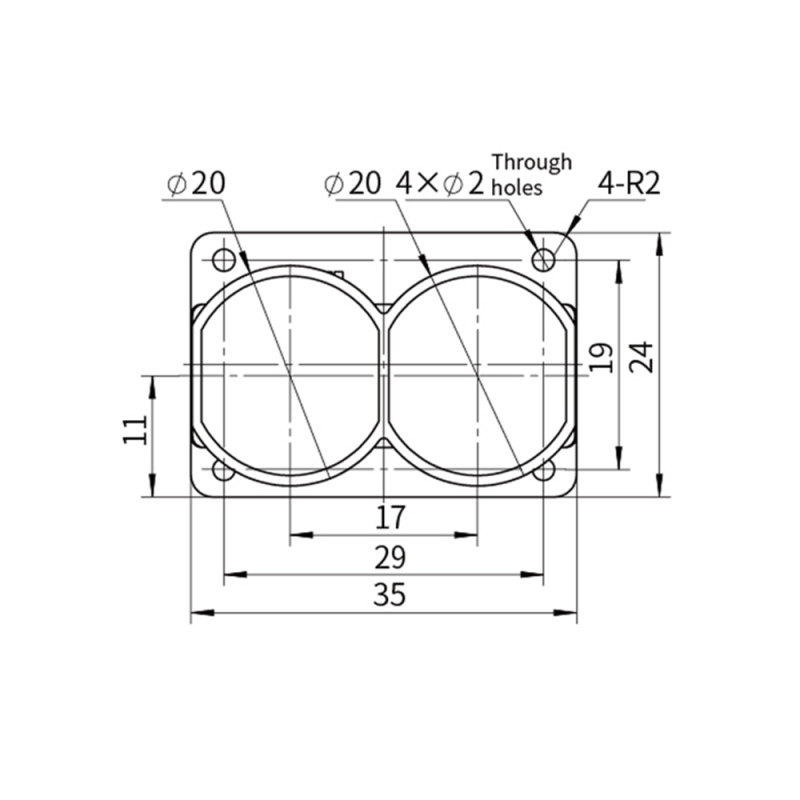

2. Size: 35x24x21.5mm
3. Weight: 8g
4. Power Supply: DC 4~6V
5. Maximum Power Consumption: 1.3W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: Infrared LED
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 18m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: Lens cone waterproof
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: TTL UART

Application Fields:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167
