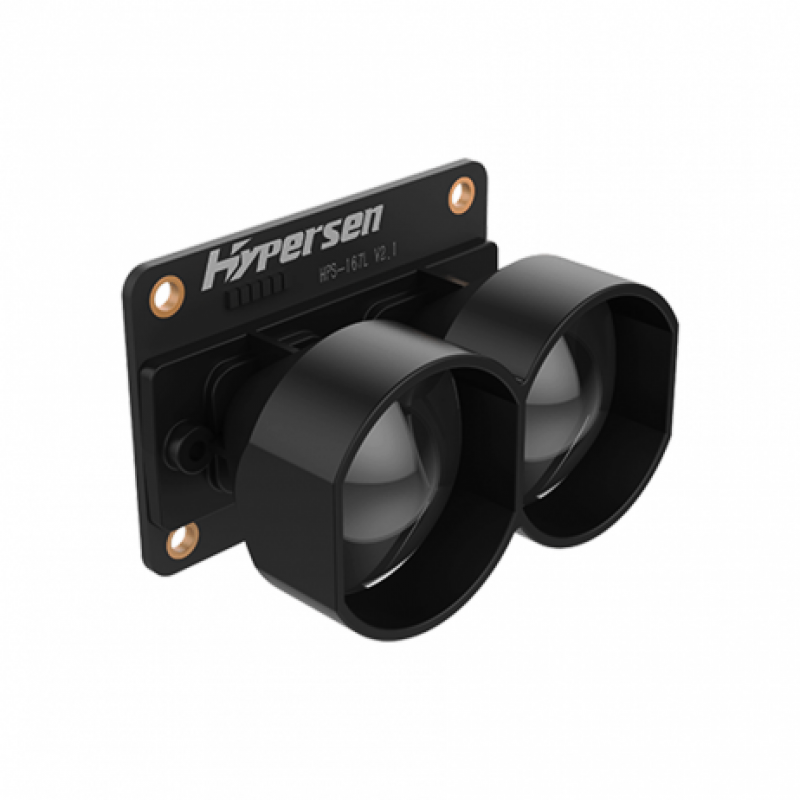

The HPS-167-L is a lightweight, high-precision ToF infrared ranging sensor, optimized for applications demanding accurate distance measurement up to 40m. Equipped with integrated ambient light, temperature, and color compensation algorithms, it ensures reliability and performance in various environments.

Features:

1. Ultra Light Weight: Weighs only 6.8g, ideal for weight-sensitive applications.
2. High SNR: Provides clear and reliable measurement signals.
3. Extended Range: Accurate distance ranging up to 40m.
4. Compensation Algorithms: Integrated ambient light, temperature, and color compensation for enhanced accuracy.
5. Adaptive Data Output Rate: Dynamically adjusts between 6 and 54Hz for optimal performance.

Specifications:

1. Model: HPS-167-L
2. Power Supply: DC 4~6V
3. Maximum Power Consumption: 1.3W
4. Quiescent Power Consumption: 0.1W
5. Storage Temperature: -40~+85
6. Operating Temperature: -10~+55
7. Emitter: VCSEL Laser
8. Emitting Angle: 1.6
9. Maximum Measuring Distance: 40m
10. Minimum Measuring Distance: 0.08m
11. Waterproof: Lens cone waterproof
12. Adaptive Data Output Rate: 6~54Hz
13. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
14. Communication Interface: TTL UART

Application:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167-L
