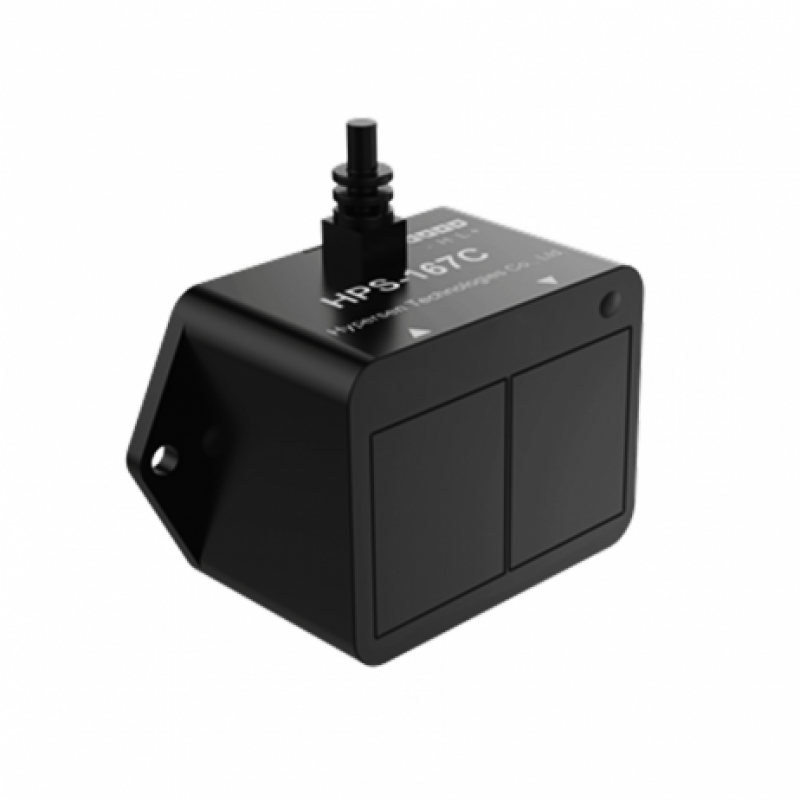

The HPS-167C is a sophisticated Time-of-Flight (ToF) infrared ranging sensor designed to deliver high SNR, fast, and accurate distance measurements. It features integrated ambient light, temperature, and color compensation algorithms, making it highly reliable for various applications.

Features:

High SNR: Ensures clear and reliable signal measurements.
Accurate Ranging: Provides fast and precise distance measurements.
Compensation Algorithms: Integrates ambient light, temperature, and color compensation for enhanced accuracy.
Adaptive Data Output Rate: Ranges from 6 to 54Hz for optimal performance.
Durable Design: Housed in an ABS+aviation aluminum waterproof case for added protection.

Specifications:

1. Model: HPS-167C
2. Power Supply: DC 5~15V
3. Maximum Power Consumption: 1.4W
4. Quiescent Power Consumption: 0.1W
5. Storage Temperature: -40~+85
6. Operating Temperature: -10~+55
7. Emitter: Infrared LED
8. Emitting Angle: 1.8
9. Maximum Measuring Distance: 18m
10. Minimum Measuring Distance: 0.08m
11. Waterproof: ABS+aviation aluminum waterproof case
12. Adaptive Data Output Rate: 6~54Hz
13. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
14. Communication Interface: CAN

Application:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167C
