The HPS-167S is a high-performance ToF infrared ranging sensor known for its high signal-to-noise ratio (SNR) and fast, accurate distance measurement. It features integrated ambient light, temperature, and color compensation algorithms, making it suitable for a wide range of applications. The sensors adaptive output data rate ranges from 6 to 54Hz.

Features:

1. High SNR: Ensures clear and reliable measurement signals.
2. Fast and Accurate: Provides quick and precise distance ranging.
3. Compensation Algorithms: Includes ambient light, temperature, and color compensation for enhanced accuracy.
4. Adaptive Data Output Rate: Dynamically adjusts between 6 and 54Hz for optimal performance.
5. Robust Design: Features an ABS and aviation aluminum waterproof case.

Specifications:

1. Model: HPS-167S

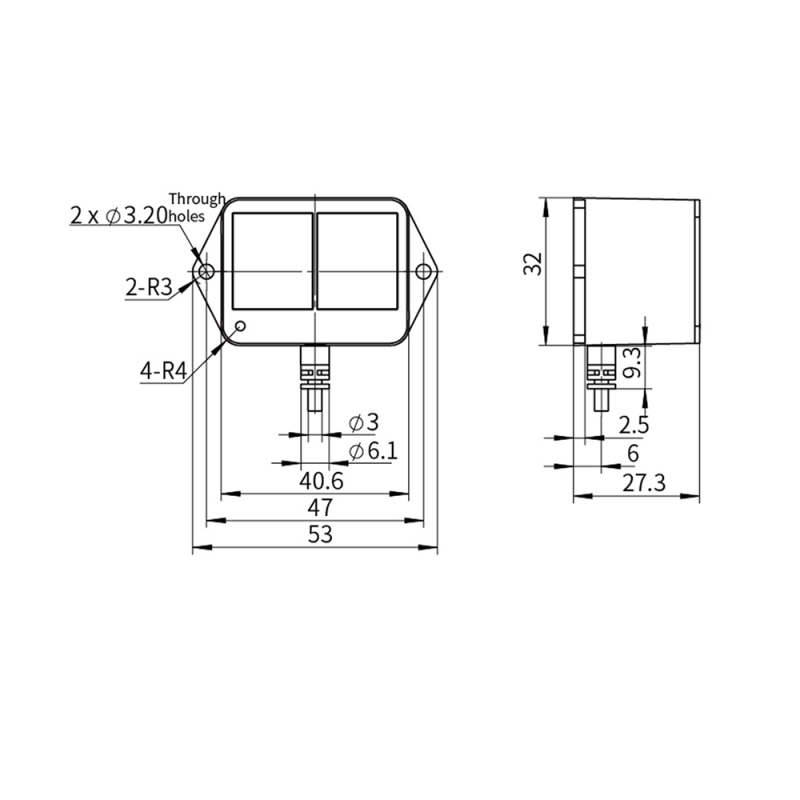

2. Size: 53x32x26.5mm
3. Weight: 27g
4. Power Supply: DC 5~15V
5. Maximum Power Consumption: 1.4W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: Infrared LED
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 18m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: ABS + aviation aluminum waterproof case
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: CAN, Rs485-Modbus

Applications:

1. Drone Altitude Holding
2. Drone Soft-landing
3. Security
4. Height Difference Measurement
5. Drone Collision Avoidance
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167S
