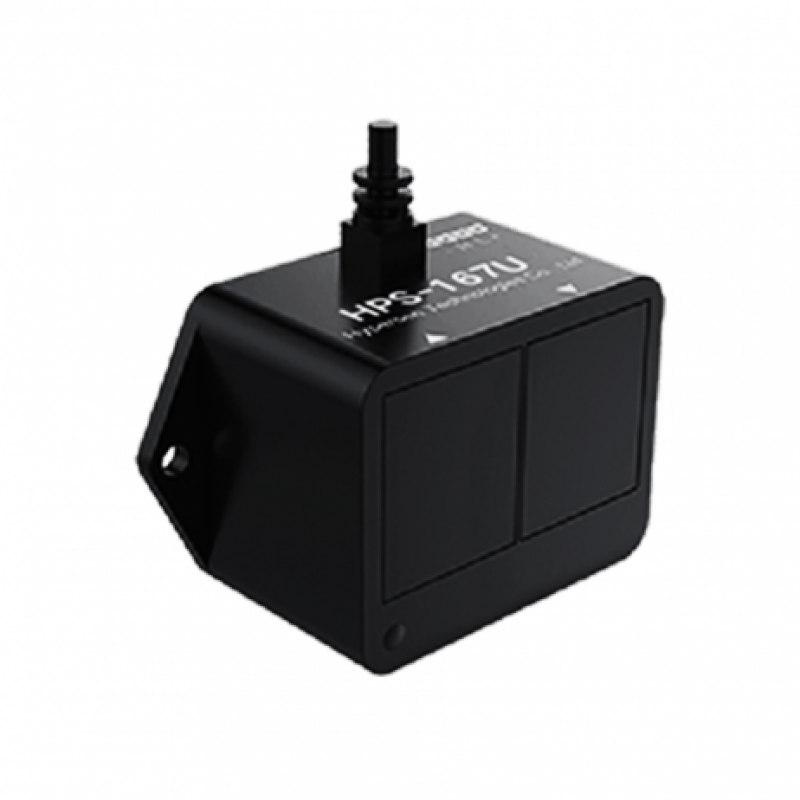

The HPS-167U is a robust ToF infrared ranging sensor designed for precise distance measurement. It features high SNR, fast ranging capabilities, and integrated compensation algorithms, making it ideal for various applications including drones and security systems.

Features:

1. High SNR: Delivers clear and reliable signal measurements.
2. Accurate Ranging: Ensures fast and precise distance measurement.
3. Compensation Algorithms: Integrates ambient light, temperature, and color compensation for enhanced accuracy.
4. Adaptive Data Output Rate: Adjusts dynamically between 6 and 54Hz for optimal performance.
5. Durable Build: Encased in an ABS+aviation aluminum waterproof case.

Specifications:

1. Model: HPS-167U

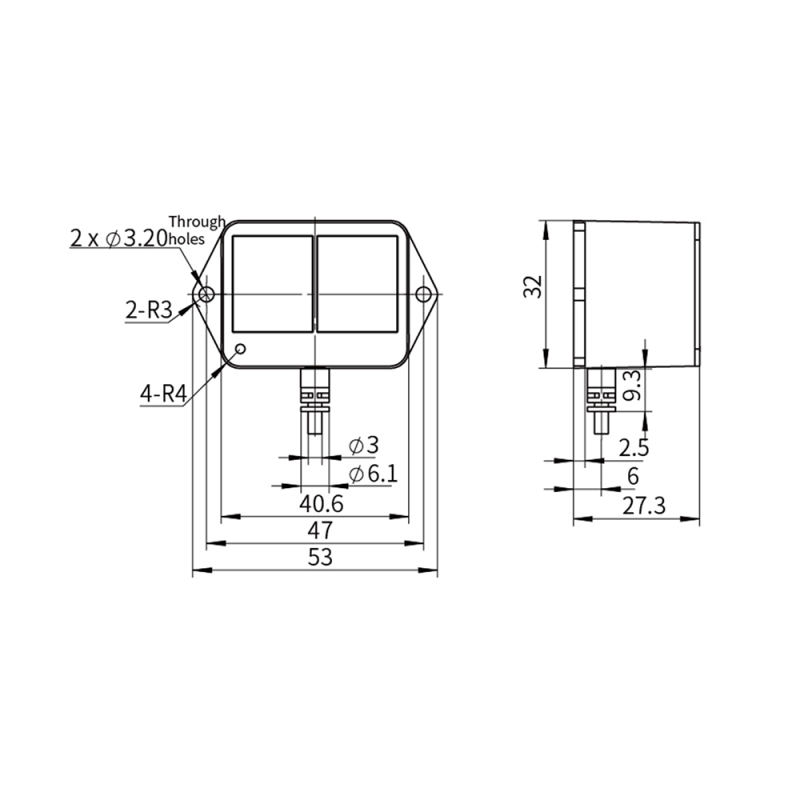

2. Size: 53x32x26.5mm
3. Weight: 27g
4. Power Supply: DC 4~6V
5. Maximum Power Consumption: 1.3W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85
8. Operating Temperature: -10~+55
9. Emitter: Infrared LED
10. Emitting Angle: 1.8
11. Maximum Measuring Distance: 18m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: ABS+aviation aluminum waterproof case
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: TTL UART

Application:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167U
