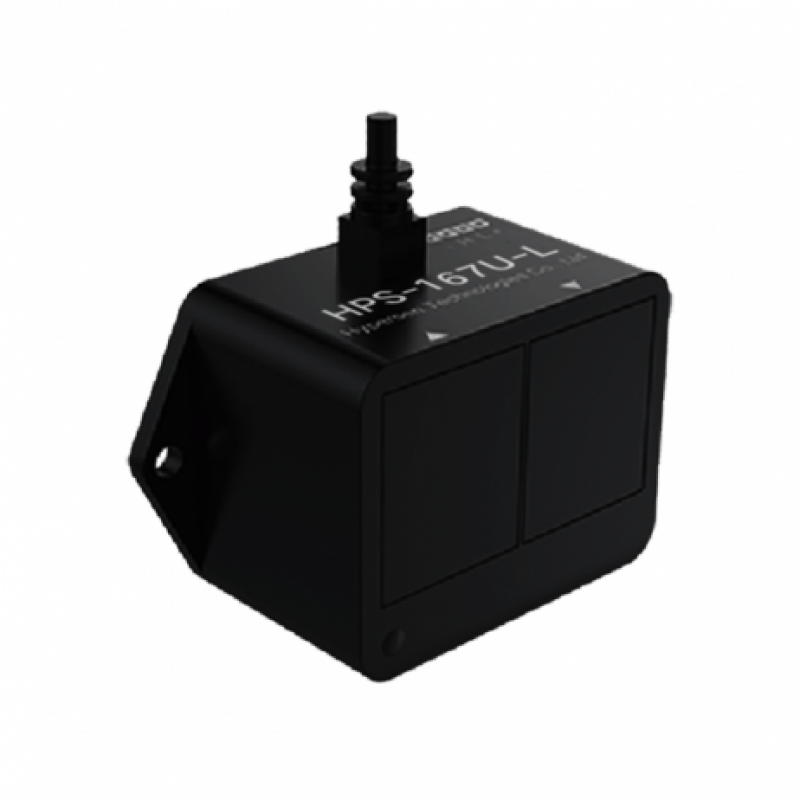

The HPS-167U-L is an advanced ToF infrared ranging sensor designed for precise and fast distance measurements up to 50m. It features high SNR, integrated compensation algorithms for ambient light, temperature, and color, and an adaptive data output rate, making it ideal for various applications including drones and security systems.

Features:

1. High SNR: Provides clear and reliable signal measurements.
2. Accurate Ranging: Ensures fast and precise distance measurements up to 50m.
3. Compensation Algorithms: Integrates ambient light, temperature, and color compensation for enhanced accuracy.
4. Adaptive Data Output Rate: Dynamically adjusts between 6 and 54Hz for optimal performance.
5. Durable Build: Encased in an ABS+aviation aluminum waterproof case.

Specifications:

1. Model: HPS-167U-L
2. Power Supply: DC 4~6V
3. Maximum Power Consumption: 1.3W
4. Quiescent Power Consumption: 0.1W
5. Storage Temperature: -40~+85
6. Operating Temperature: -10~+55
7. Emitter: VCSEL Laser
8. Emitting Angle: 1.6
9. Maximum Measuring Distance: 40m
10. Minimum Measuring Distance: 0.08m
11. Waterproof: ABS+aviation aluminum waterproof case
12. Adaptive Data Output Rate: 6~54Hz
13. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
14. Communication Interface: TTL UART

Application:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x ToF Ranging Sensor HPS-167U-L
