This is IC-LM2576S-12/NOPB.The LM2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, 15 V, and an adjustable output version.

The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required. A standard series of inductors optimized for use with the LM2576 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. Other features include a 4% tolerance on output voltage within specified input voltages and output load conditions, and 10% on the oscillator frequency. External shutdown is included, featuring 50-A (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

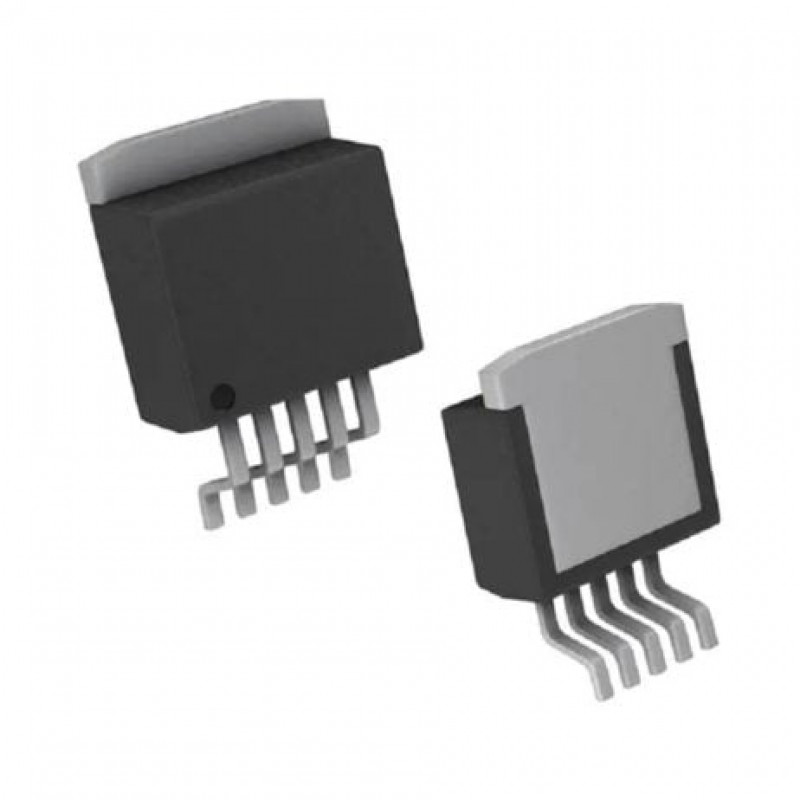

Note: Image shown is for representation only, the actual product may vary. Exact specifications & technical data should be obtained from the product data sheet from the attachments section.

Features:

1. 3.3-V, 5-V, 12-V, 15-V, and adjustable output versions
2. Adjustable version output voltage range,1.23 V to
3. 37 V (57 V for HV version) 4% maximum over line and load conditions
4. Specified 3-A output current.
5. Wide input voltage range: 40 V Up to 60 V for HV version
6. Requires only four external components
7. 52-kHz fixed-frequency internal oscillator
8. TTL-shutdown capability, low-power standby mode
9. High efficiency
10. Uses readily available standard inductors

Package Includes:

1 x IC-LM2576S-12/NOPB
