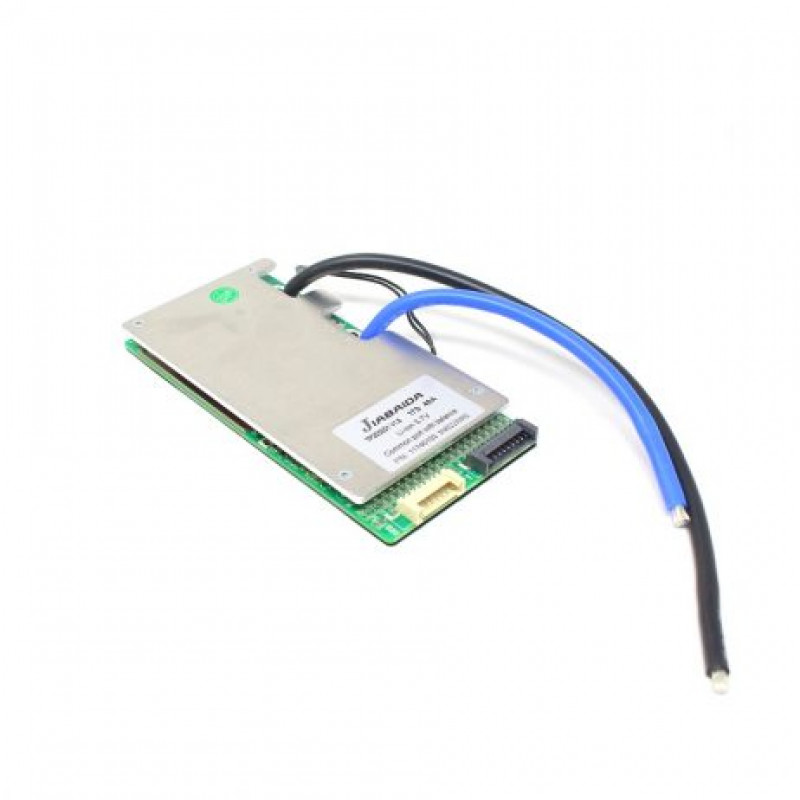

The JIABAIDA (JBD) NMC 17S 62.9V 40A Battery Management System (BMS) is a sophisticated electronic solution meticulously engineered to monitor and safeguard lithium-ion battery packs. Tailored for optimal performance, longevity, and safety, this BMS is designed to cater to a wide array of applications, including electric vehicles, renewable energy storage systems, and industrial machinery.

At its core, the JBD NMC 17S BMS is equipped with precise voltage and temperature monitoring capabilities for each individual cell within the battery pack. This comprehensive monitoring system enables the BMS to detect and respond promptly to any anomalies such as overcharging, over-discharging, or excessive temperatures, ensuring the reliability and safety of the battery pack.

Note: For more technical Details go through Datasheet in the attachment section

Features:

1. Individual Cell Monitoring
2. Voltage Balancing
3. Comprehensive Protection
4. Advanced Algorithms
5. High Accuracy
6. Communication Capabilities
7. User-Friendly Interface

Specifications:

1. Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide (NMC)
2. Battery Configuration: 17 series cells
3. Nominal Voltage: 62.9 volts
4. Maximum Continuous Discharge Current: 40 amps
5. Cell Voltage Monitoring Range: 0 volts to 4.2 volts per cell
6. Temperature Monitoring Range: -40C to 85C
7. Voltage Balancing Accuracy: 5 millivolts (mV)
8. Current Balancing Accuracy: 50 milliamps (mA)
9. Communication Interface: CAN bus, RS485, RS232, Ethernet

Package Includes:

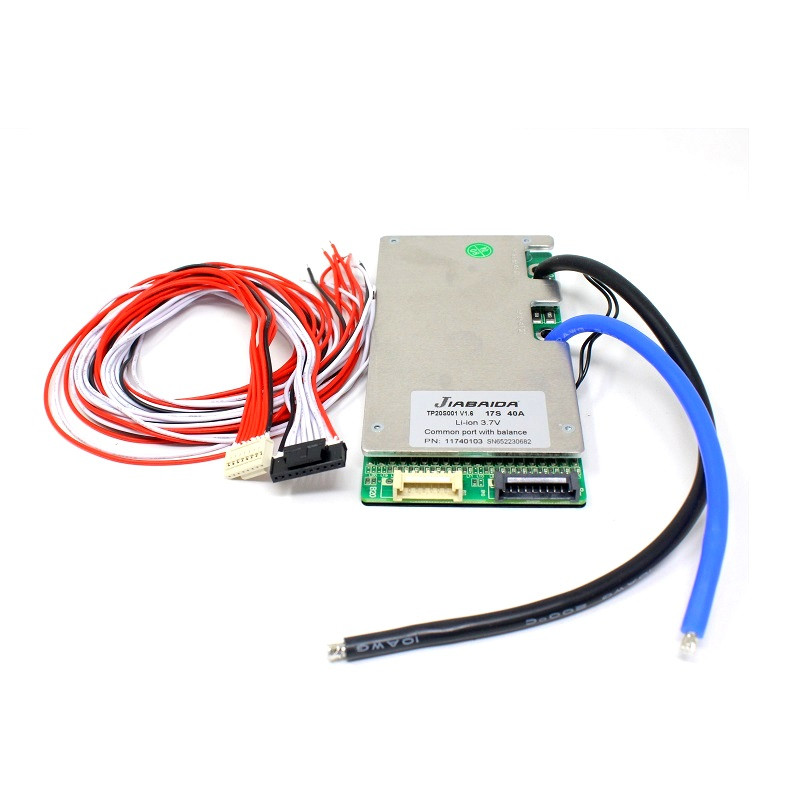

1 x JIABAIDA (JBD) NMC 17S 62.9V 40A Battery Management System- TP20S001 V1.6
