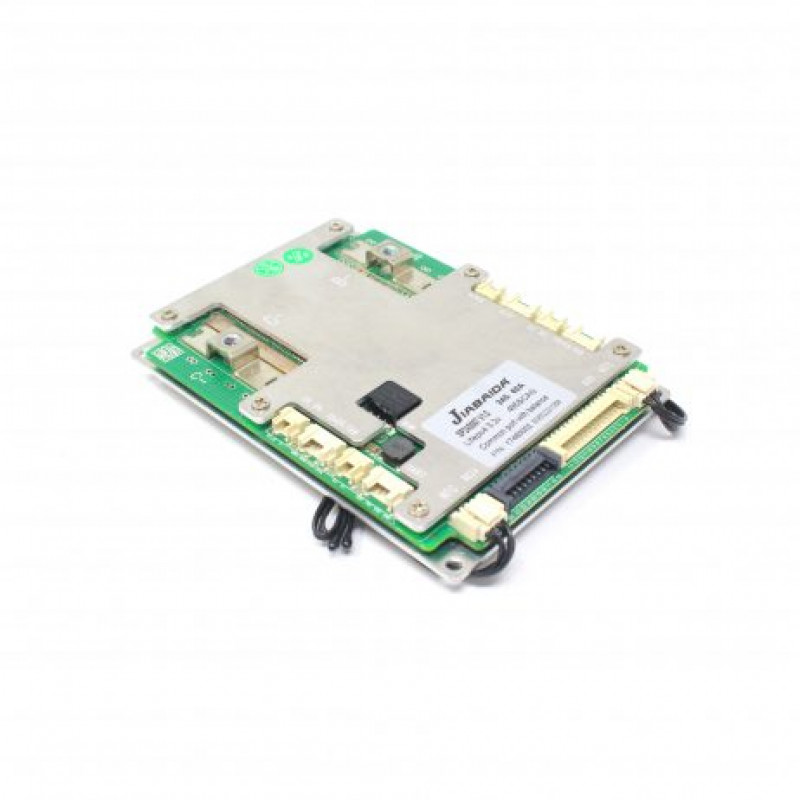

The JIABAIDA LFP 24S 76.8V 100A Battery Management System represents a cutting-edge solution for managing large-scale lithium iron phosphate (LFP) battery packs. Designed to cater to high-power applications, this BMS offers advanced functionalities to ensure optimal performance, safety, and longevity of the battery system.
At its core, this BMS is tailored for a 24S configuration, meaning it can manage 24 cells connected in series, resulting in a nominal voltage of 76.8V. This configuration is ideal for applications requiring substantial power output and energy storage capacity.
Features:
- 24S Configuration
- High Power Handling
- Comprehensive Protection
- Balancing Functionality
- Efficient Design
- Communication Interfaces
- User-Friendly Interface
Specifications:
- Cells in Sereies: 24S
- Voltage: 76.8V
- Current: 100A
- Continuous charging current: 200A
- Continuous discharging current: 200A
- Consumption of running: 10mA
- Consumption of sleep: 300uA
- Circuit resistance: 10mR
- Operating temperature: -20~75
Package Includes:

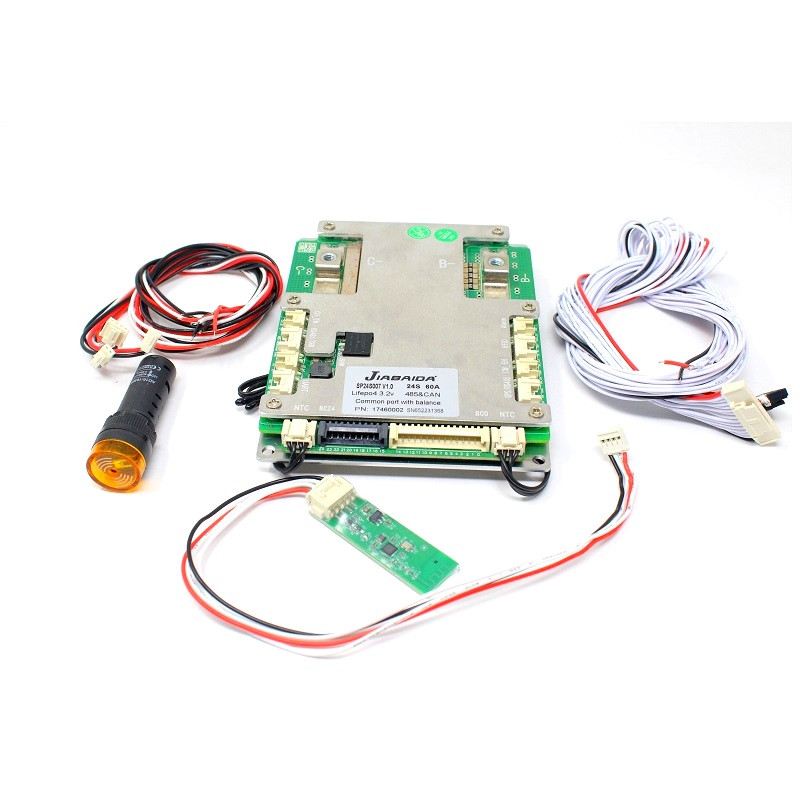

1 x JIABAIDA LFP 24S 76.8V 100A Battery Management System
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
JIABAIDA LFP 24S 76.8V 100A Battery Management System
- Product Code: EC-27115
- Availability: Out Of Stock
-
Rs.6979.00
- (Excluding 18% GST)
