FEATURES :
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range -40 to+85
- Support the negative output
- Output short-circuit protection
- Pin compatible with LM78xx series
- IEC60950, UL60950, EN60950 Approval
Specifications :-
I/p Voltage range:8-36vdc
Nominal voltage:24Vdc
O/p voltage:5V
O/p current:1000(mA)
wattage:1W
Isolation:No
Package:SIP
Package Includes:
1 x K7805-1000R3 Mornsun 5V Output DC-DC Converter 1W Power Supply Module - SIP Package
Download DATASHEET :
Download
| |
| Brand/Manufacturer |
Mornsun |
| Country Of Origin |
China |
| Packer / Importer Address |
Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP |
Rs. 352.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

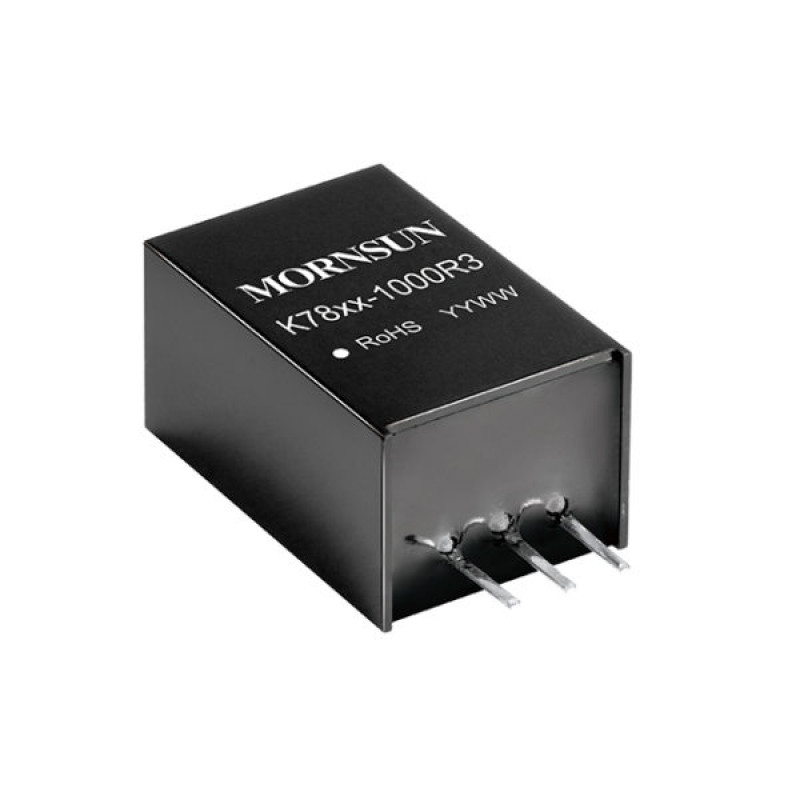

K7805-1000R3 Mornsun 5V Output DC-DC Converter 1W Power Supply Module - SIP Package
- Product Code: EC-9462
- Availability: Out Of Stock
-
Rs.299.00
- (Excluding 18% GST)
