Rocker Switch with Light is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are marked which helps users identify the current switch position during usage
SPST simply mean single pole, single throw. The product controls one circuit with one On position. SPDT means that it is a single pole double throw which means it has two ON positions. This can be a variety of circuitry however. It can be an On-On switch or On-Off-On
A rocker switch KCD4 is a small high capacity power switch suitable for home appliances and office equipment. Compared with other switches, it is more powerful. But there are also different types of KCD4 rocker switches
Applications:
- Rocker switches are used in a variety of applications, including HVAC equipment,
- home appliances, security products
- Vacuum cleaners and floor care equipment
- Dehumidifiers, medical systems
Features:
- Durable and long lifetime.
- Inbuild Light
- heavy dutySwitch
- Long life, up to 50,000 times
Specifications:
- Function: SPST ON-OFF
- Marking: I O
- Approvals: CE CQC
- Material: PA66
- Contact Resistance: 35m max
- Insulation Resistance: 500VDC 100m min
- Dielectric Strength: 1500VAC, 1 minute
- Operation Temperature: -25C~+85C
- Electrical Life: 10000 Cycles
- Max. Current: 6A
- Max. Voltage:12V 24V
Packages include:
1 x KCD1 12V-24V ON-OFF,2 PIN Rocker Switch
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

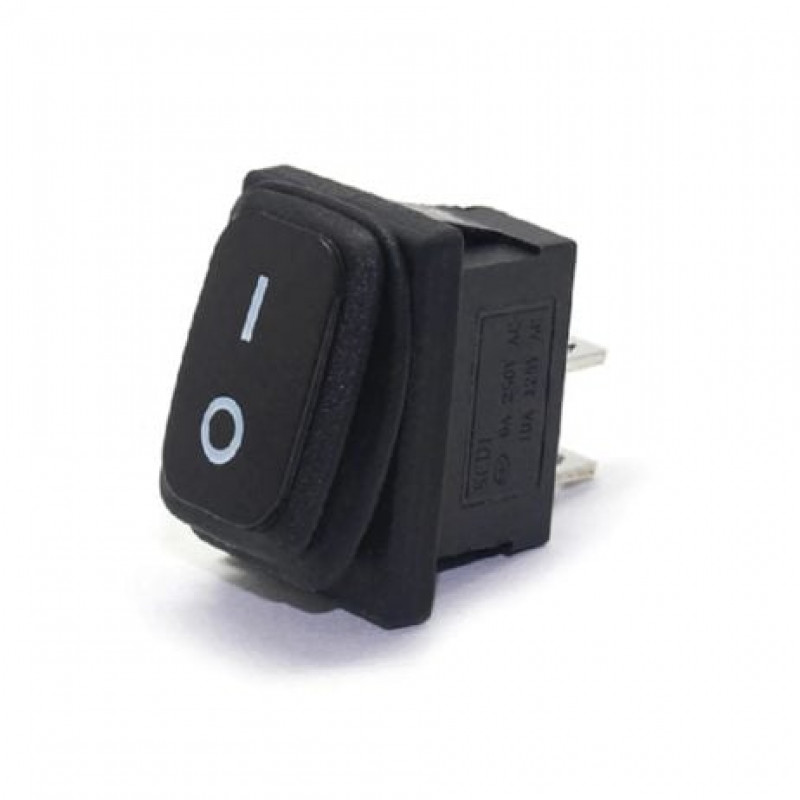

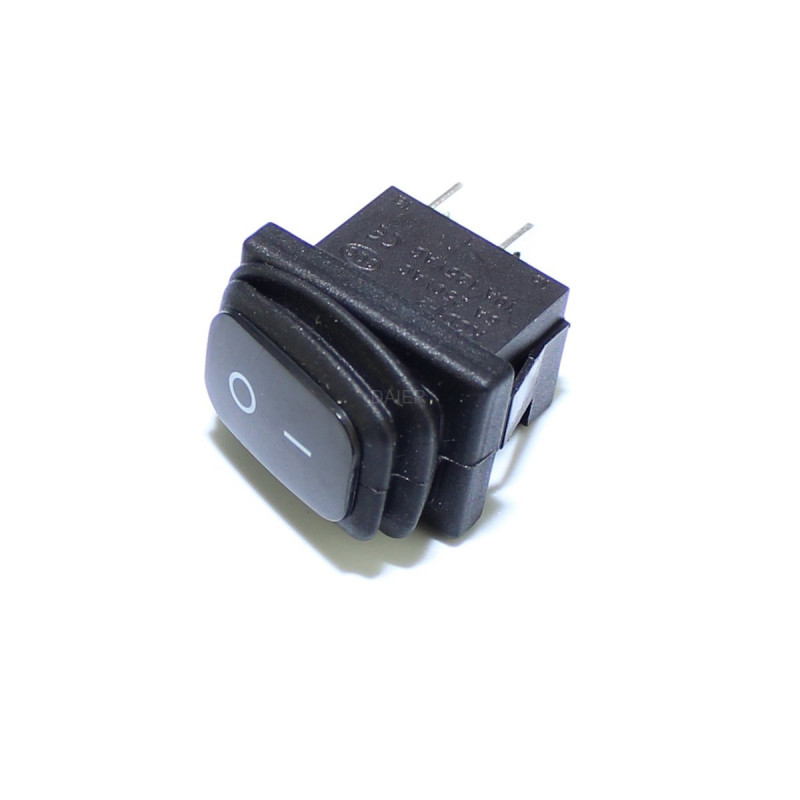

KCD1 12V-24V ON-OFF,2 PIN Rocker Switch
- Product Code: EC-24222
- Availability: Out Of Stock
-
Rs.61.00
- (Excluding 18% GST)
