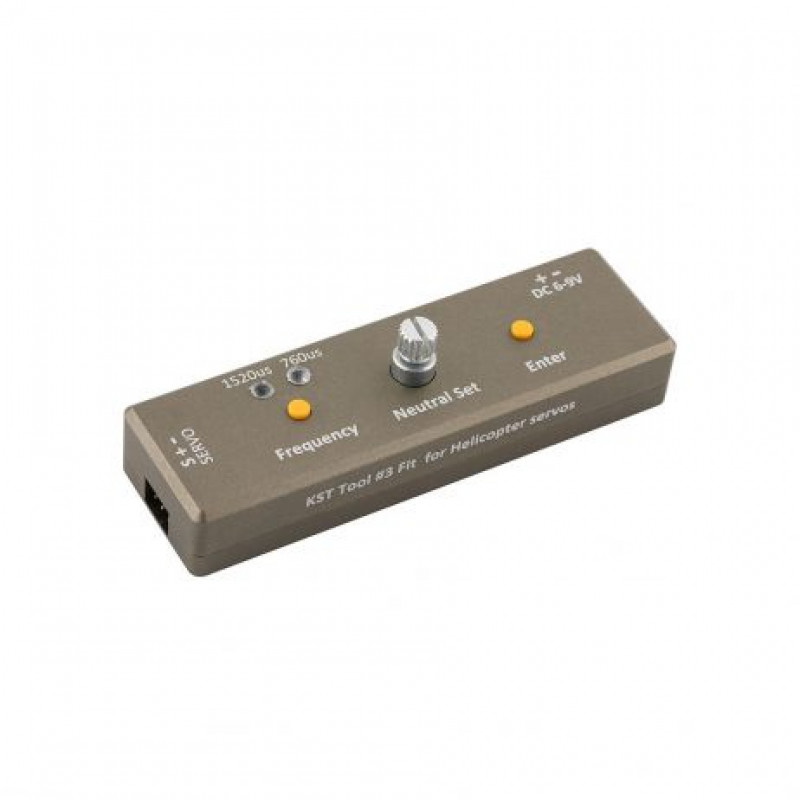

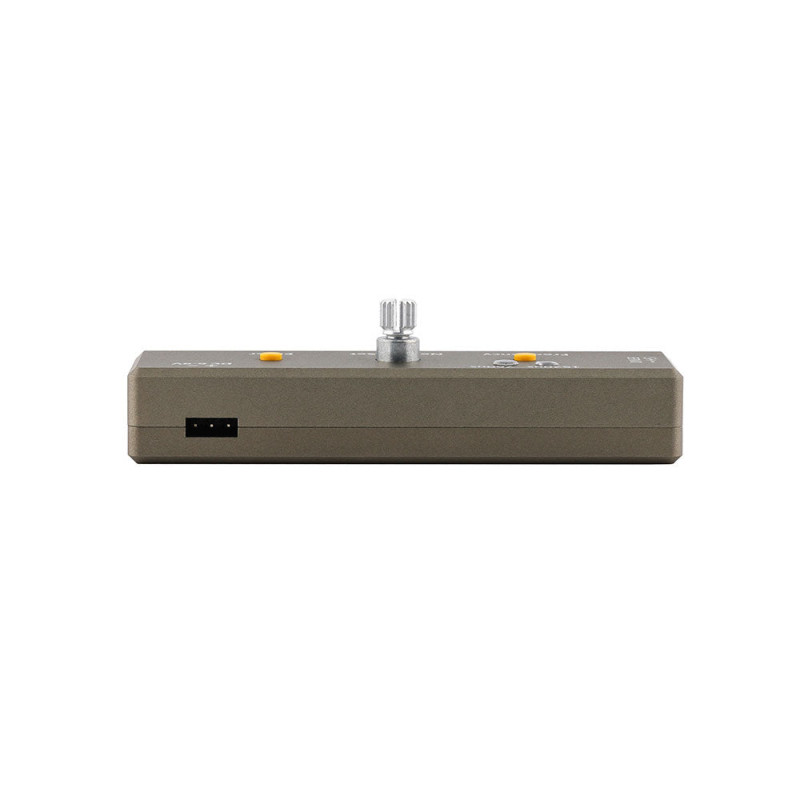

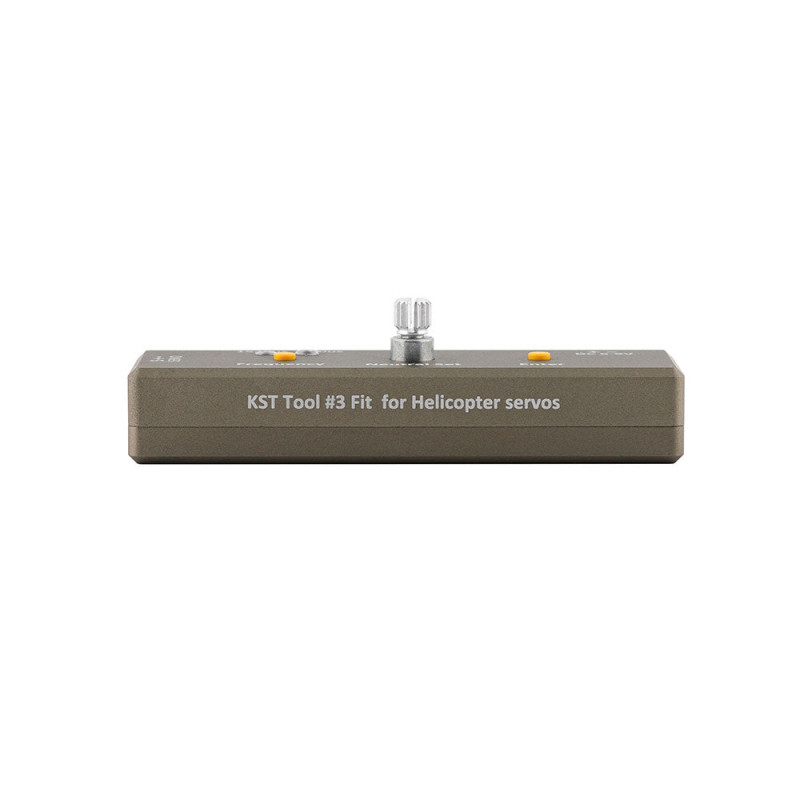

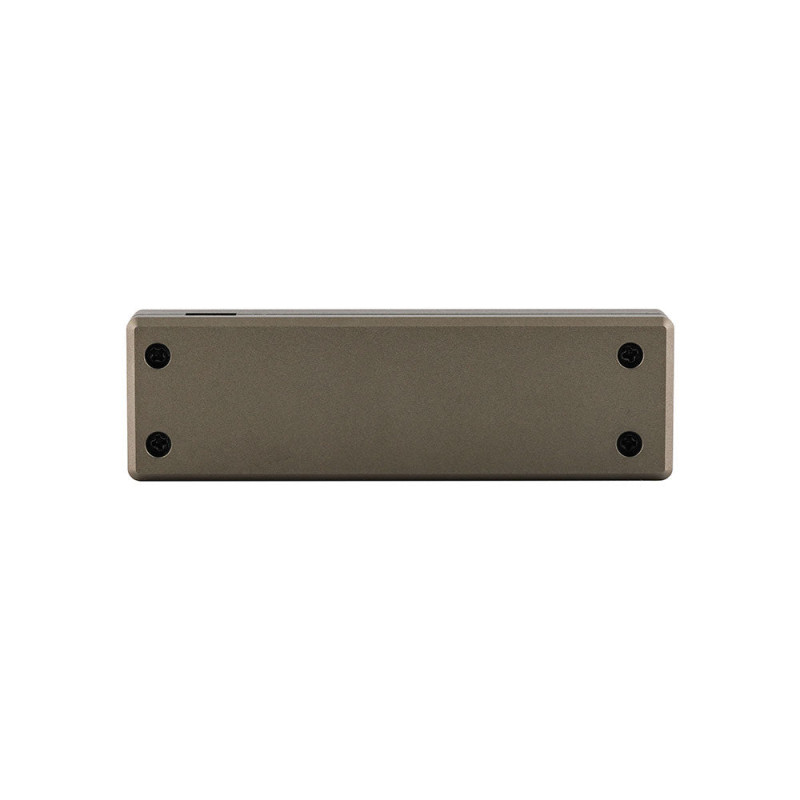

Servo Programming Tool Card #3 A programming device for KST V6.0 and V8.0 servos, it is a very useful tool that makes it possible to not only change the frequency of the servo but also to set the neutral position which likewise adjusts the full travel. This gives the ultimate perfect centering of the servo, a handy tool!.
Operating instructions:
1. Connect the device to a 6-9V power supply, and the frequency indicators will start to flash.
2. Connect the servo to the servo port. The device will detect the servo frequency and illuminate the corresponding frequency indicator light.
3. Press the toggle frequency button to switch between frequencies. Press enter to select the frequency of the servo in use.
4. Use the dial to center the servo, and press Enter to confirm. Press down on the Neutral set dial to reset the device.
Package Includes:
1 x KST Servo tool #3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
KST Servo tool #3
- Product Code: EC-27531
- Availability: Out Of Stock
-
Rs.3451.00
- (Excluding 18% GST)
