The L6599AD is an improved high-voltage Resonant Controller provides 50% complementary duty cycle, the high-side switch and the low-side switch are driven ON/OFF 180 out-of-phase for exactly the same time. Output voltage regulation is obtained by modulating the operating frequency. A fixed dead-time inserted between the turn-OFF of one switch and the turn-ON of the other guarantees soft-switching and enables high-frequency operation. To drive the high-side switch with the bootstrap approach, the IC incorporates a high-voltage floating structure able to withstand more than 600V with a synchronous-driven high-voltage DMOS that replaces the external fast-recovery bootstrap diode. The IC enables the designer to set the operating frequency range of the converter by means of an externally programmable oscillator. At light load the IC may enter a controlled burst mode operation that keeps the converter input consumption to a minimum.

Specifications:

Operating Temperature Min: -40C
No. of Pins: 16Pins
Product Range: Multicomp Pro RJ45 Adapter
Operating Temperature Max: 150C
Supply Voltage Min: 8.85V
Supply Voltage Max: 16V
IC Function: Resonant Controller
IC Package Type: NSOIC

Package Includes:

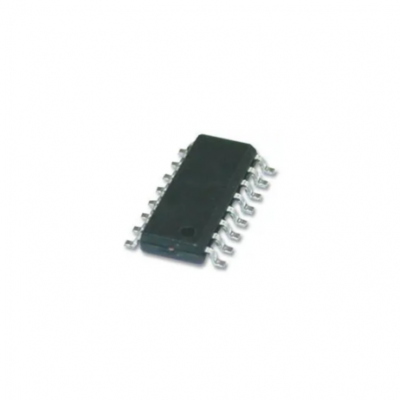

1 x L6599AD-STMICROELECTRONICS-L6599AD-Resonant Controller, 8.85 V to 16 V in, NSOIC-16
